PPB 32 SST - Poulan String Trimmer, Type 1 (2009-05) Shaft Parts Diagram

String Trimmer, Type 1

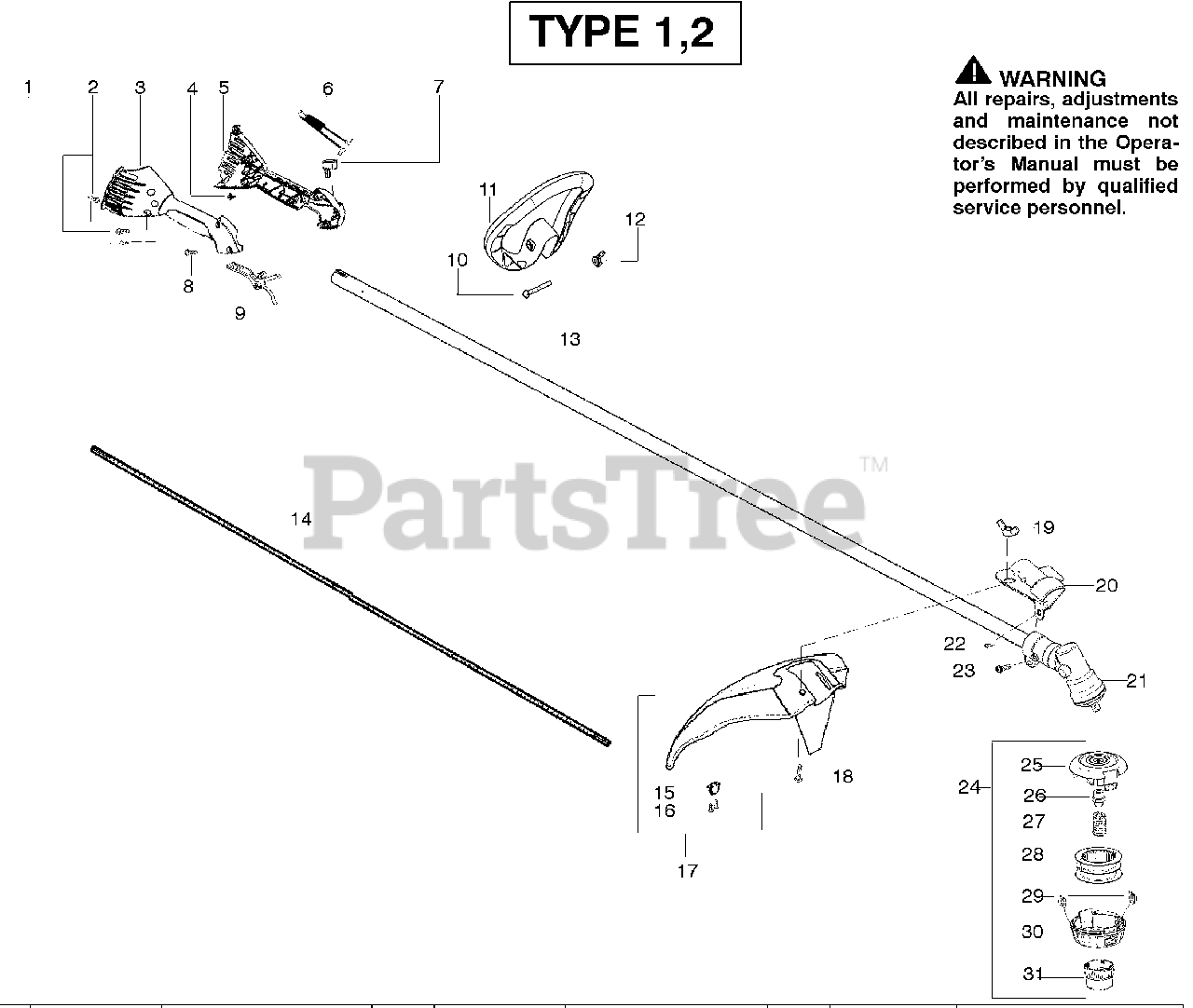

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

2

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 530057983

Hsg.-Throttle right

$

$

Not available

4

Electrolux/AYP 530016326

Screw-Cable Retention

$

$

Not available

5

Electrolux/AYP 530057984

Hsg.-Left throttle

$

$

Not available

6

Electrolux/AYP 530058843

Assy-Wire

$

$

Not available

7

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

9

Electrolux/AYP 530058759

Lever-Throttle
(Superseded to 545017701)

$

$

Not available

10

Electrolux/AYP 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 530058583

Assy-Handle

Note: (Incl. 10,12)

$6.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$

$

Not available

13

Electrolux/AYP 530072001

Kit-Shaft

$42.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530096203

Shaft-Flex

$15.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 19

0

17

Electrolux/AYP 530071765

Kit-Shield Assy.
(Superseded to 545081001)

Note: (incl. 15,16)

$27.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$

$

Not available

20

Electrolux/AYP 545150701

Bracket-Shield

$5.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530096099

Gearbox

$53.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

23

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

24

Electrolux/AYP 537419202

Assy-TNG VII
(Superseded to 596585805)

$31.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 537419302

Housing

Note: (Incl. 25,26,27,28,29,30,31)

$11.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 537419801

Adapter
(Superseded to 537419801)

$8.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 537338801

Spring
(Superseded to 537338801)

$6.49

$

In Stock, only 3 left!

0

28

Electrolux/AYP 952711631

Accy-Wound Spool

$10.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 537419701

Eyelet
(Superseded to 545003365)

$9.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 537419401

Cover
(Superseded to 545003365)

$9.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 537419601

Knob
(Superseded to 537419601)

$6.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 545186838

Operator Manual

Note: Not Shown

$

$

Not available

31

Electrolux/AYP 545144405

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
