PPB 2000 T - Poulan Pro Cultivator Attachment Gas Cultivator Attachment Assembly Parts Diagram

Cultivator Attachment

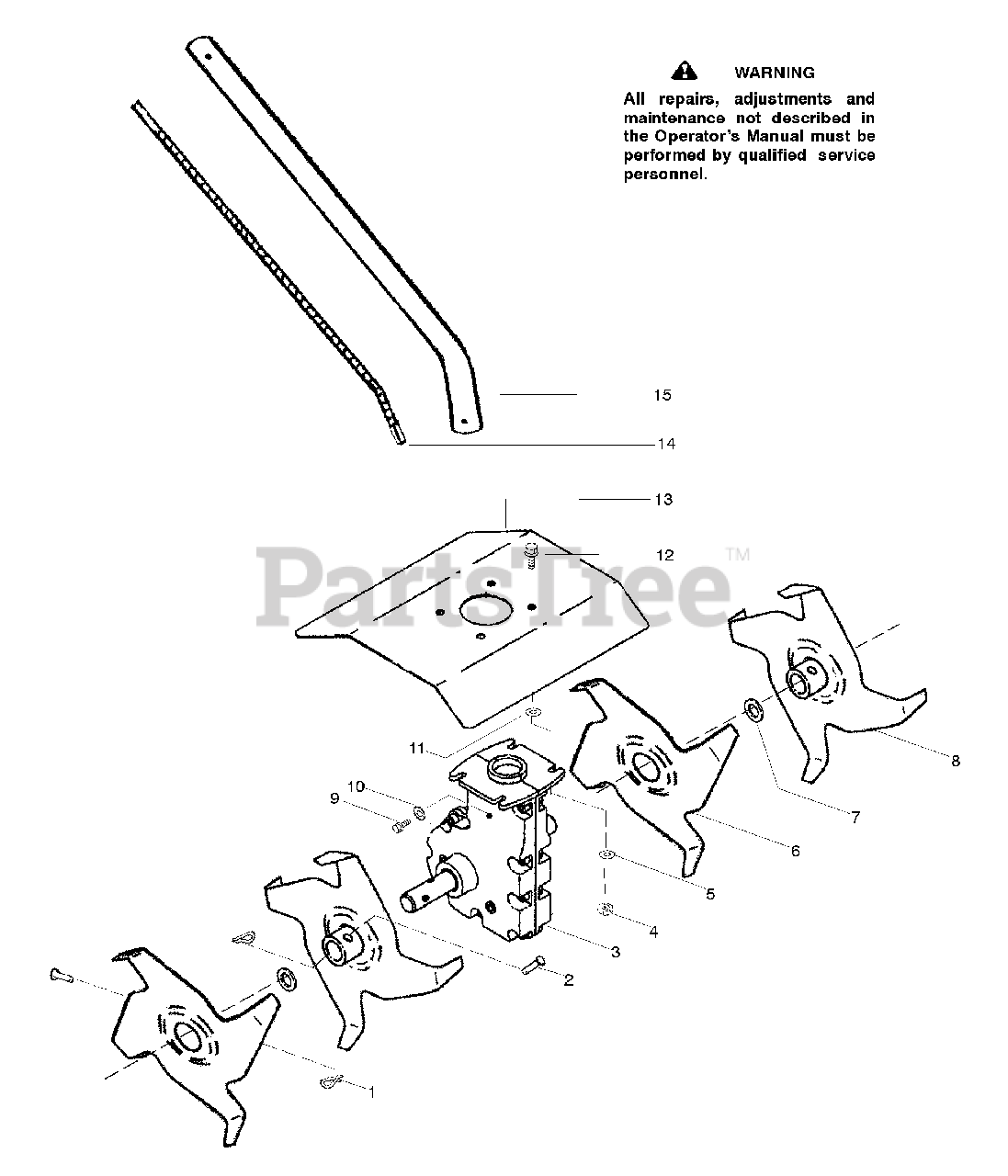

Gas Cultivator Attachment Assembly Parts Diagram

  • Title

1

Poulan 530016363

Retainer-Hairpin

$4.99

$

In Stock, only 2 left!

0

2

Poulan 530016362

Pin-Clevis

$4.99

$

In Stock, only 2 left!

0

3

Poulan 530095985

Assy-Gearbox

$169.99

$

Usually ships in 3-10 days

0

4

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

5

Poulan 530015209

Washer-Flat

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530095987

Tine-Right Outside/Left Inside

$14.99

$

In Stock, only 2 left!

0

7

Poulan 530016364

Washer-Felt

$3.99

$

In Stock, only 2 left!

0

8

Poulan 530095986

Tine-Left Outside/Right Inside

$22.99

$

Usually ships in 3-10 days

0

9

Poulan 530016374

Bolt-Hex

$

$

Not available

10

Poulan 530016375

Washer-Lock

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530015209

Washer-Flat

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530016366

Bolt-Washer Head

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530055771

Guard-blade

$

$

Not available

14

Poulan 530095960

Shaft-Flex

$

$

Not available

15

Poulan 530096001

Assy-Driveshaft

$21.99

$

In Stock, only 1 left!

0

Poulan 545212826

Manual

Note: Not Shown

$

$

Not available

Poulan 530150031

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 545003360

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
