PPB 2000 LE - Poulan Blower, Type 5 (2006-12) Engine Type 5 Parts Diagram

Blower, Type 5

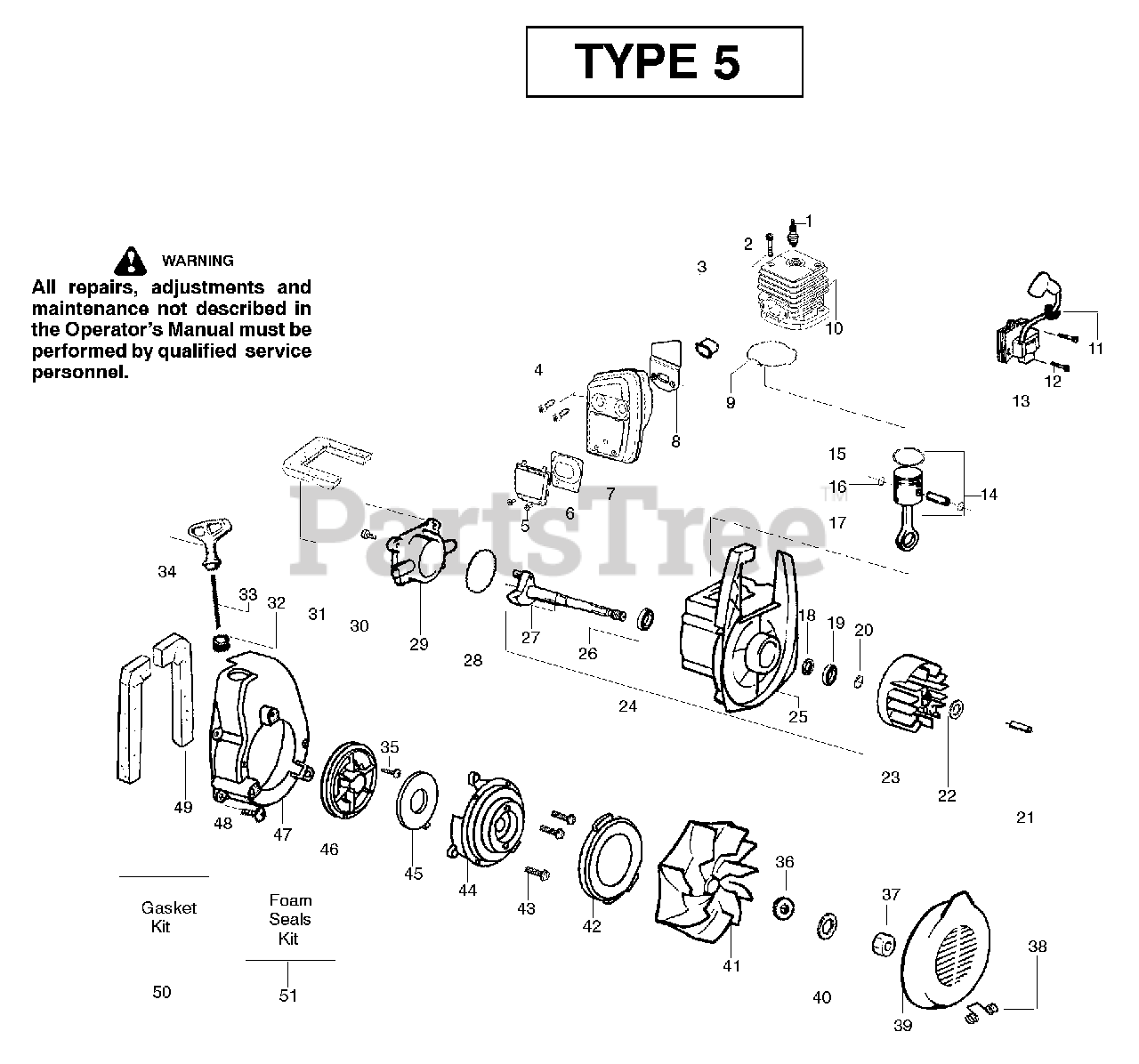

Engine Type 5 Parts Diagram

  • Title

1

Electrolux/AYP 952030249

Spark Plug (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

2

Electrolux/AYP 530015953

Screw

$6.49

$

In Stock, Qty 7

0

3

Electrolux/AYP 530055191

Insulator-Heat

$

$

Not available

4

Electrolux/AYP 530016387

Screw-Muffler-Internal

$

$

Not available

5

Electrolux/AYP 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530071593

Kit-Spark Screen

Note: (incl. #5)

$

$

Not available

7

Electrolux/AYP 530071599

Kit-Muffler

Note: (incl. 4,5,6, & 8)

$

$

Not available

8

Electrolux/AYP 530071458

Gasket-Baffle (kit)

$

$

Not available

9

Electrolux/AYP 530071458

Gasket-Cylinder (kit)

$

$

Not available

10

Electrolux/AYP 530071468

Kit-Cylinder
(Superseded to 530012458)

$34.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530016357

Screw-Ignition Module

$6.49

$

In Stock, only 4 left!

0

13

Electrolux/AYP 530035505

Ignition Module

$47.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 530071476

Kit-Piston

Note: (Incl. 15 & 16)

$40.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530012472

Piston Ring
(Superseded to 545154009)

$4.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530019264

Seal-Crankcase

$7.49

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530015941

Retainer Ring-C’chaft

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530016190

Spacer-Flywheel

$

$

Not available

22

Electrolux/AYP 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

23

Electrolux/AYP 530039209

Assy-Flywheel
(Superseded to 530063575)

$

$

Not available

24

Electrolux/AYP 530071456

Assy-Crankcase/Crank shaft

Note: (incl. 20,25,27)

$

$

Not available

25

Electrolux/AYP 530012492

Assy-Crankcase

Note: (Incl. 18,19,26)

$

$

Not available

26

Electrolux/AYP 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530012452

Assy-Crankshaft

$33.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530071458

O-ring-C/case (kit)

$

$

Not available

29

Electrolux/AYP 545064601

Cover-Crankcase

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 530071459

Foam-219mm (kit)

$

$

Not available

32

Electrolux/AYP 530029182

Eyelet-Flange

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530071467

Kit-Rope

Note: (Incl. 35)

$7.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 530049488

Handle-Starter

$3.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 530016391

Screw-Rope

$2.23

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530016402

Washer-Belleville

$

$

Not available

37

Electrolux/AYP 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530402043

Spring-Return Cover

$4.99

$

In Stock, Qty 5

0

39

Electrolux/AYP 530049313

Inlet Door

$

$

Not available

40

Electrolux/AYP 530016279

Washer

$3.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 530069817

Assy-Impeller

$

$

Not available

42

Electrolux/AYP 530056625

Seal-Ring

$

$

Not available

43

Electrolux/AYP 530016349

Screw

$6.49

$

In Stock, only 2 left!

0

44

Electrolux/AYP 530055101

Housing-Pulley

$

$

Not available

45

Electrolux/AYP 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

46

Electrolux/AYP 530071466

Kit-Starter Pulley
(Superseded to 545150201)

$11.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 530055102

Fan Housing

$

$

Not available

48

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

49

Electrolux/AYP 530071459

Foam-182mm (kit)

$

$

Not available

50

Electrolux/AYP 530071458

Kit-Gasket

Note: (page 5 incl. 2,5 & 19 ) (page 10 incl. 8,9, & 28 )

$

$

Not available

51

Electrolux/AYP 530071459

Kit-Foam Seals

Note: (page 5 incl. 1,14,32) (page 10 incl. 31 & 49)

$

$

Not available
