PPB 1000 E - Poulan Pro Edger Attachment, Type 4 Edger Attachment Assembly Type 4 Parts Diagram

Edger Attachment, Type 4

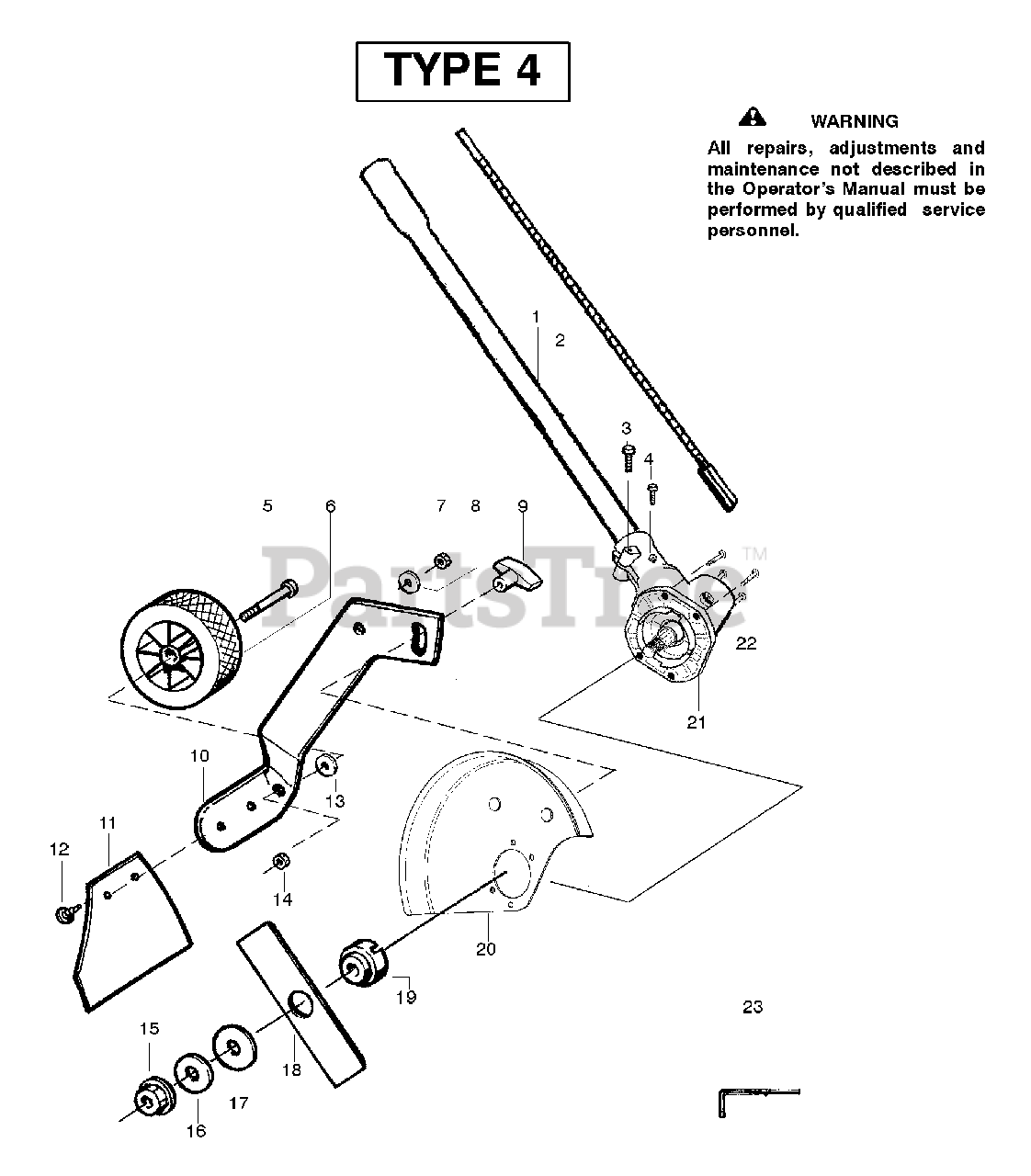

Edger Attachment Assembly Type 4 Parts Diagram

  • Title

1

Poulan 545006090

Assy.-Driveshaft

$

$

Not available

2

Poulan 530096183

Flexshaft-Split boom

$

$

Not available

3

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

4

Poulan 530015775

Screw-Alignment

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530015981

Bolt-Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530095125

Wheel-4"

Note: (rubber)

$

$

Not available

7

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

8

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530092059

Knob

$9.99

$

Usually ships in 3-10 days

0

10

Poulan 530053009

Bracket-Adj. Wheel

$13.99

$

Usually ships in 3-10 days

0

11

Poulan 530071251

Kit-Mud Flap

Note: (incl.#12)

$7.49

$

In Stock, only 1 left!

0

12

Poulan 530053012

Fastener-Mud Flap

$3.99

$

In Stock, only 1 left!

0

13

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530015793

Nut-Flange

Note: (LH.)

$6.49

$

In Stock, Qty 5

0

16

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

17

Poulan 530015792

Washer-Flat

$5.99

$

In Stock, only 2 left!

0

18

Poulan 952711625

Accy-7.5" Blade

$

$

Not available

19

Poulan 530054623

Dustcup

$10.99

$

In Stock, only 1 left!

0

20

Poulan 530071930

Kit-Edger Guard

$21.99

$

Usually ships in 3-10 days

0

21

Poulan 530071586

Kit-Gearbox

Note: (Incl. 3,4,19,22)

$

$

Not available

22

Poulan 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

23

Poulan 530031159

Wrench-Hex (5/32")

$4.99

$

In Stock, only 1 left!

0

Poulan 545167665

Manual

Note: Not Shown

$

$

Not available

Poulan 530150031

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 525392401

Decal-Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 545074501

Decal-Guard Warning

Note: Not Shown

$

$

Not available
