PP WT 60022 (961720006-00) - Poulan Pro Wheeled Trimmer (2009-11) Chassis Parts Diagram

Wheeled Trimmer

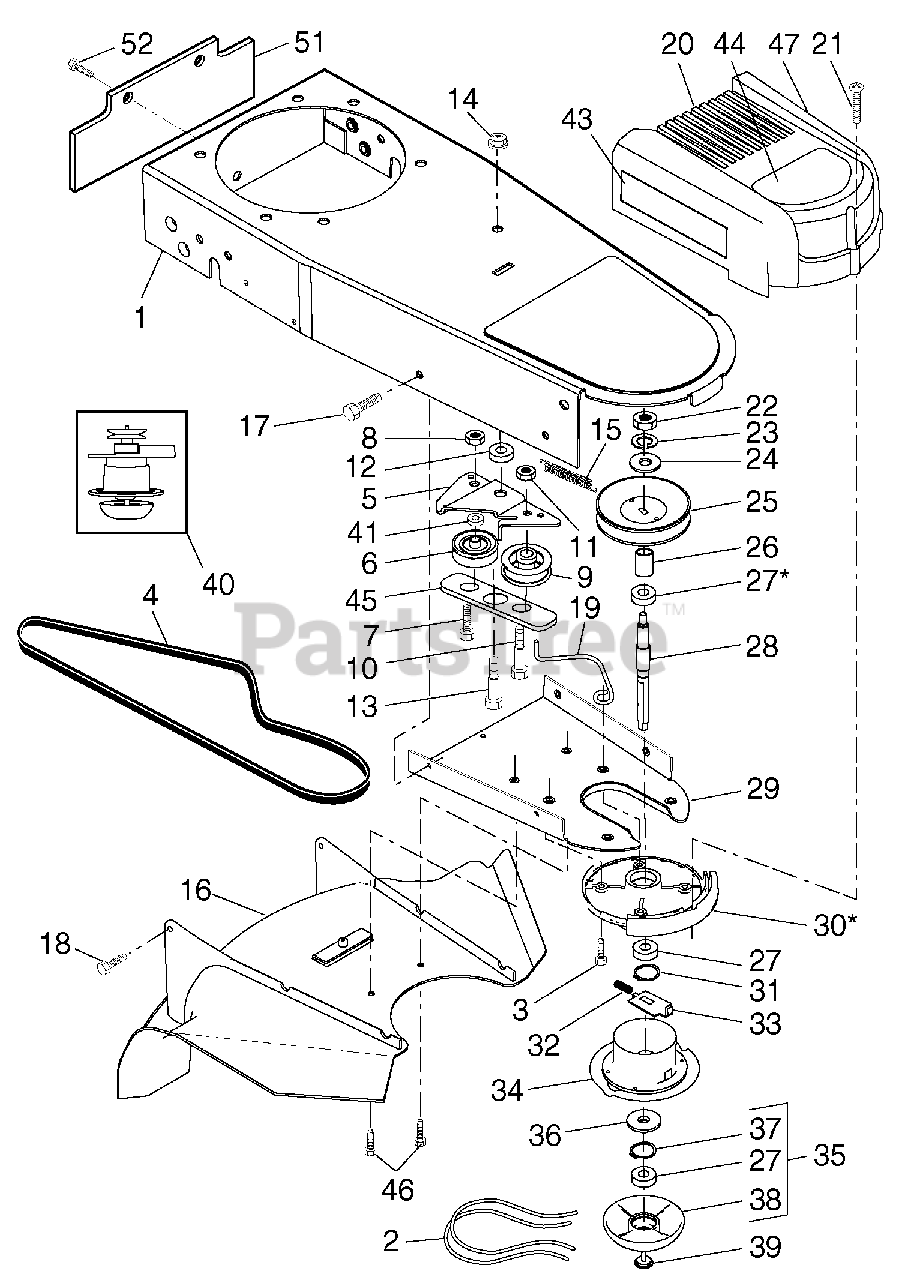

Chassis Parts Diagram

  • Title

1

Electrolux/AYP 174031X421

Chassis Assembly
(Superseded to 532436353)

$84.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 182219

Line, Trimmer .155 diameter x 18.75 long
(Superseded to 532182219)

$17.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 173715

Screw, Self-Tapping 5/16-18 x 1
(Superseded to 532173715)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 185476

V-Belt
(Superseded to 532185476)

$31.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 172145X004

Bracket, Idler
(Superseded to 586506002)

$

$

Not available

6

Electrolux/AYP 166042

Pulley, Idler, V-Groove
(Superseded to 532166042)

$26.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 173716

Bolt, Hex Head 3/8-16 x 1.25
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 751592

Locknut, Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 166043

Pulley, Idler, Flat
(Superseded to 532166043)

$31.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 160829

Bolt, Shoulder
(Superseded to 532160829)

$7.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 73930500

Locknut, Hex 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 173717

Spacer
(Superseded to 532173717)

$5.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 174719

Bolt, Shoulder
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

14

Electrolux/AYP 409149

Locknut, Flange
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 173811

Spring, Return
(Superseded to 532173811)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 180268

Defl ector, Bottom
(Superseded to 532180268)

$43.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 17060410

Screw 1/4-20 x 1/2
(Superseded to 817060410)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 178848

Screw #10-24 x 3/4
(Superseded to 532178848)

$7.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 199574

Belt Keeper
(Superseded to 532199574)

$6.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 178390

Cover, Chassis, Top
(Superseded to 532178390)

$26.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 149746

Screw #10-24 x 1-3/4
(Superseded to 532149746)

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP STD541137

Nut, Hex 3/8-24 UNF

$

$

Not available

23

Electrolux/AYP STD551137

Washer, Lock 3/8

$

$

Not available

24

Electrolux/AYP STD551037

Washer, Flat 3/8

$

$

Not available

25

Electrolux/AYP 180340

Pulley, Driven
(Superseded to 532180340)

$40.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 172551

Spacer, Pulley
(Superseded to 532172551)

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 174549

Bearing
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

28

Electrolux/AYP 172520

Jackshaft
(Superseded to 532172520)

$66.99

$

In Stock, Qty 7

0

29

Electrolux/AYP 169766X479

Cover, Chassis, Bottom
(Superseded to 532186752)

$

$

Not available

30

Electrolux/AYP 174543

Spindle Housing Assembly
(Superseded to 532174543)

Note: ( Includes Upper Bearing, Key No. 27)

$66.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 174581

Ring, Retaining, External, 17mm
(Superseded to 532174581)

$7.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 173973

Spring, Locking Plate
(Superseded to 532173973)

$18.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 172519

Locking Plate
(Superseded to 532172519)

$7.49

$

In Stock, Qty 8

0

34

Electrolux/AYP 180338

Carrier Plate Assembly
(Superseded to 594935003)

$74.99

$

In Stock, Qty 9

0

35

Electrolux/AYP 182217

Mow Ball Assembly
(Superseded to 532182217)

Note: (Includes Key Numbers 27, 37 and 38)

$31.99

$

In Stock, Qty 9

0

36

Electrolux/AYP 172516

Cover, Bearing
(Superseded to 532172516)

$8.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 174580

Ring, Retaining, Internal, 40mm
(Superseded to 532174580)

$9.99

$

In Stock, only 2 left!

0

38

Electrolux/AYP 172523

Mow Ball
(Superseded to 532180337)

$26.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 180334

Bolt, Mow Ball
(Superseded to 532180334)

$12.99

$

In Stock, Qty 6

0

40

Electrolux/AYP 180333

Spindle Assembly, Complete
(Superseded to 596878501)

Note: (Includes Key No. 22-28 and 30-39)

$133.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 174029

Spacer
(Superseded to 532174029)

$

$

Not available

43

Electrolux/AYP 174042

Decal, Instruction
(Superseded to 532174042)

$8.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 430665

Decal, Chassis Cover

$9.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 174596X479

Belt Keeper, Bottom
(Superseded to 532186753)

$

$

Not available

46

Electrolux/AYP 17060408

Screw, Self-Tapping
(Superseded to 817060408)

$5.99

$

In Stock, only 2 left!

0

47

Electrolux/AYP 174036

Decal, Instruction
(Superseded to 532174036)

$

$

Not available

51

Electrolux/AYP 189006

Defl ector, Rear
(Superseded to 532189006)

$15.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 178848

Screw
(Superseded to 532178848)

$7.49

$

In Stock, Qty 20+

0
