PP RTH5 A - Poulan Pro Tiller (2000) Handle Assembly Parts Diagram

Tiller

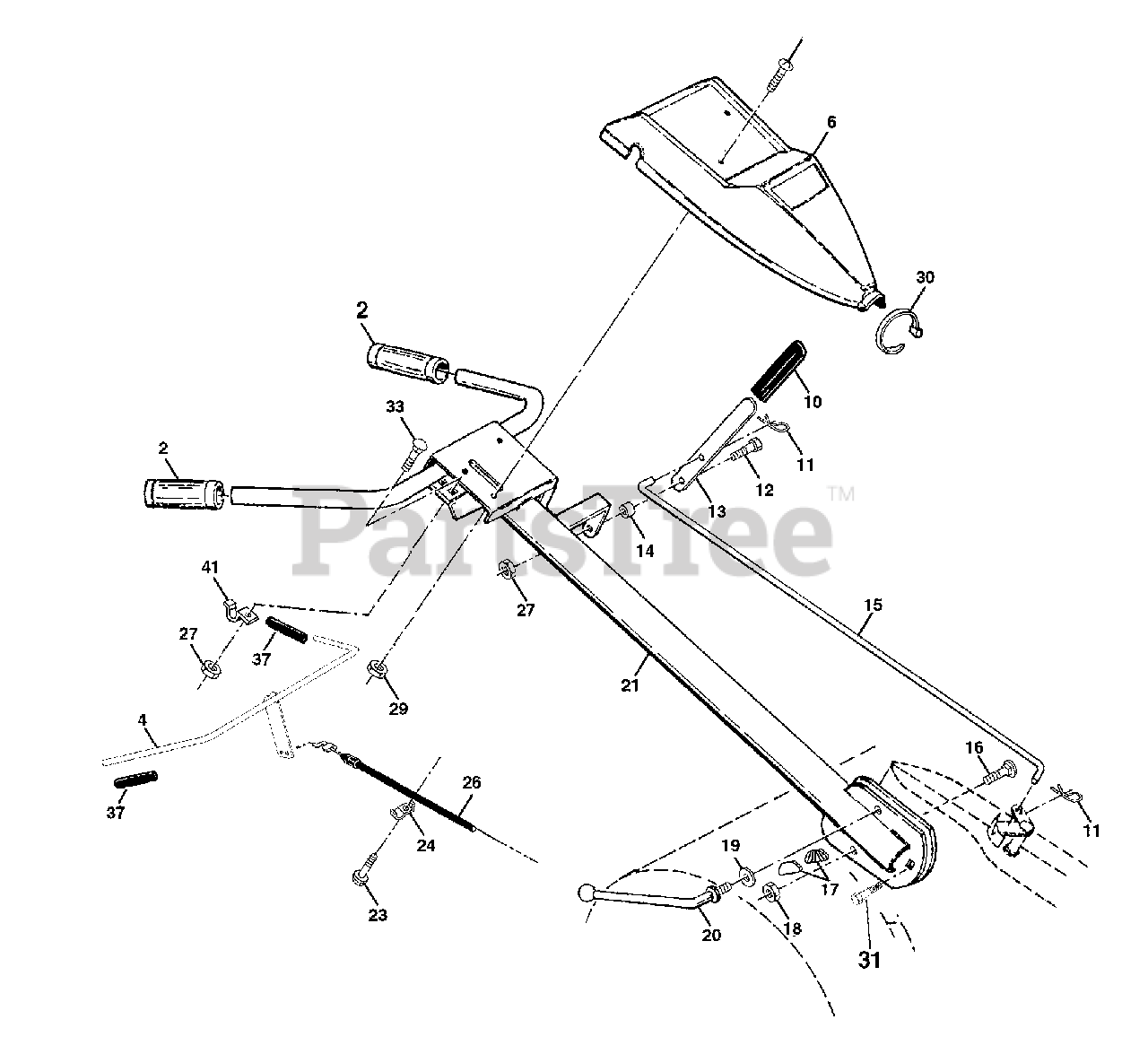

Handle Assembly Parts Diagram

  • Title
2

Electrolux/AYP 9266R

Grip, Handle

$

$

Not available

4

Electrolux/AYP 159228

Bar Assembly, Control

$11.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 173821

Panel, Control
(Superseded to 583060401)

$51.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 71191008

Screw, Phd. #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 8206H

Grip, Handle
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 4497H

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 81328

Bolt, Shoulder
(Superseded to 532081328)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 109335X

Handle, Shift
(Superseded to 532109335)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 109313X

Grommet, Rubber
(Superseded to 532109313)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 109337X

Rod, Shift
(Superseded to 532109337)

$37.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 72110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 109229X

Lock, Handle
(Superseded to 532109229)

$7.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 19131611

Washer 13/32 x 1 x 11 Ga.
(Superseded to 596140201)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 109228X

Lever, Lock, Handle
(Superseded to 532109228)

$13.99

$

In Stock, only 1 left!

0

$

$

Not available

23

Electrolux/AYP 86777

Screw, Hex Washer Hd. Slotted
(Superseded to 532086777)

$

$

Not available

24

Electrolux/AYP 9484R

Clip
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

26

Electrolux/AYP 159231

Cable, Clutch #10-24 x 1/2
(Superseded to 532159231)

$31.99

$

In Stock, Qty 6

0

27

Electrolux/AYP 73900400

Nut Hexflange 1/4-20 UNC
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

29

Electrolux/AYP 73731000

Nut, Keps #10-24 UNC

$2.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 104164X

Tie, Cable
(Superseded to 532104164)

$6.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 150696

Bolt, Pivot
(Superseded to 532150696)

$7.49

$

In Stock, only 3 left!

0

33

Electrolux/AYP 72140404

Bolt, Carriage 1/4-20 UNC x 1/2
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 102604X

Grip, Bar, Control
(Superseded to 532102604)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 102744X

Clamp, Bar, Control

$

$

Not available
