PP RT55 - Poulan Pro Tiller TILLER TINE ASSEMBLY Parts Diagram

Tiller

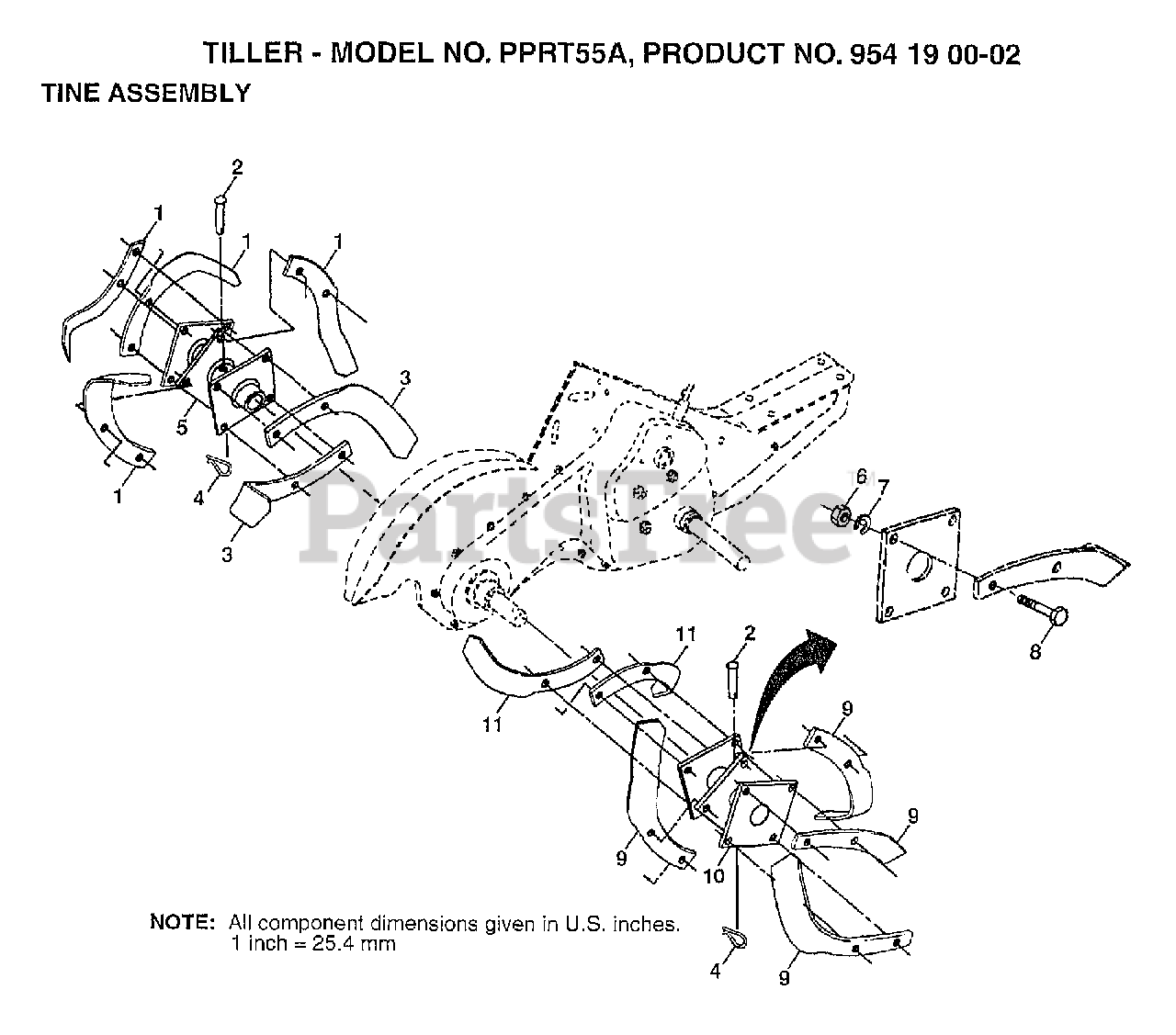

TILLER TINE ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 4459J

SUB= 6554J
(Superseded to 532004459)

$

$

Not available

2

Electrolux/AYP 132673

PIN.CLEVIS.SHEAR
(Superseded to 532132673)

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 6554J

"TINE.LH.12"""
(Superseded to 532006554)

$

$

Not available

4

Electrolux/AYP 124660X

CLIP HAIRPIN

$

$

Not available

5

Electrolux/AYP 132727

HUB&PLATE ASM LH
(Superseded to 532132727)

$79.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74610616

BOLT
(Superseded to 874610616)

$7.49

$

In Stock, Qty 20+

0

9

Electrolux/AYP 4460J

SUB= 6555J
(Superseded to 532004460)

$

$

Not available

10

Electrolux/AYP 132728

HUB&PLATE ASM RH
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 6555J

"TINE.RH.12"""
(Superseded to 532006555)

$

$

Not available
