PP RT55 C - Poulan Pro Tiller (1998) TRANSMISSION Parts Diagram

Tiller

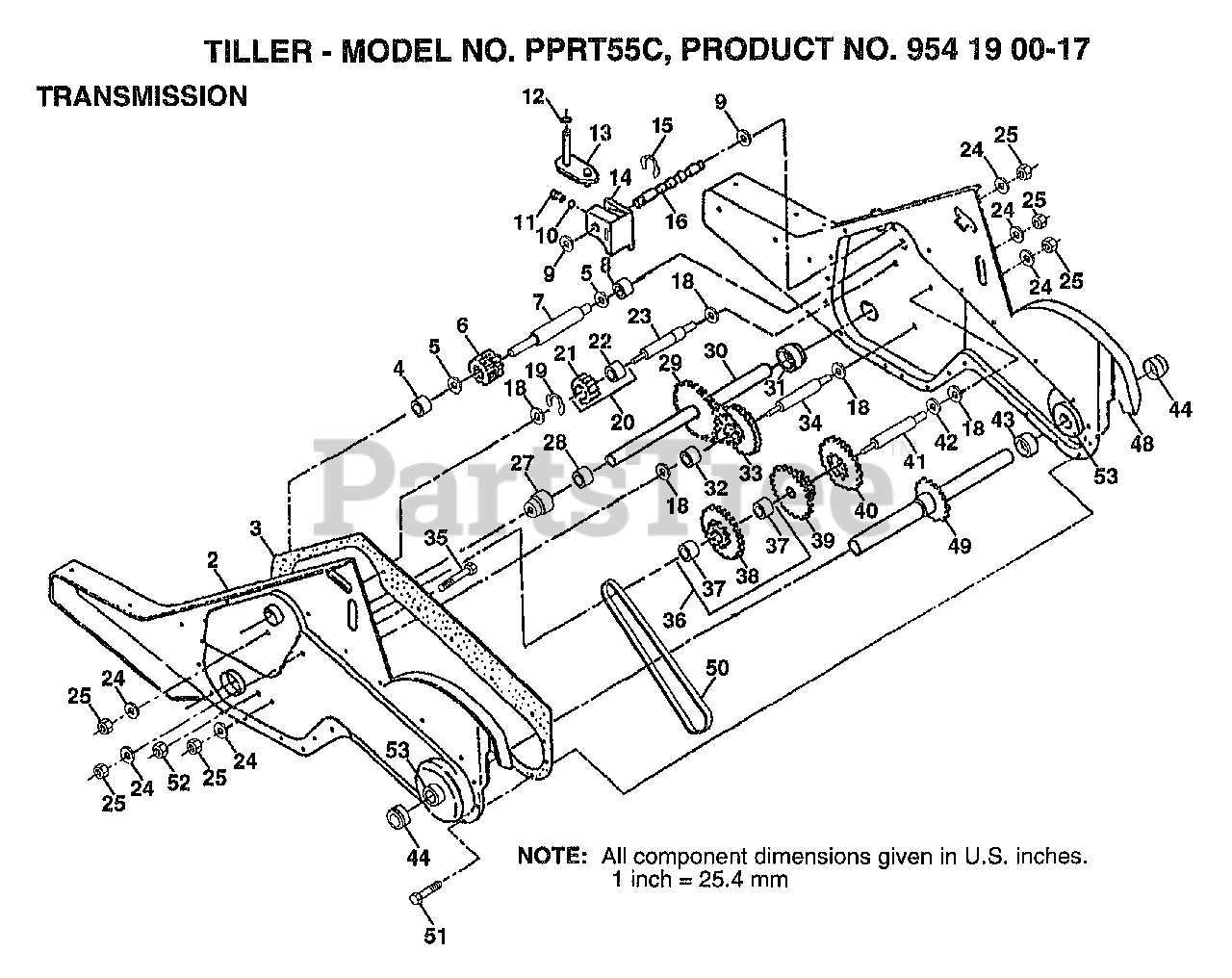

TRANSMISSION Parts Diagram

  • Title
1

Electrolux/AYP 154354

SUB= 165805
(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 150698

GEARCASE LH W/BRG
(Superseded to 532407383)

$849.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 106211X

GASKET TI
(Superseded to 532431022)

$24.99

$

In Stock, Qty 8

0

4

Electrolux/AYP 5020J

NEEDLE BRNG LT
(Superseded to 532005020)

$17.99

$

In Stock, Qty 5

0

5

Electrolux/AYP 1370H

"T, BEARING"
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 137335

GEAR PINION INPUT
(Superseded to 586196301)

$26.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 145101

"SHAFT.INPUT.""D"""
(Superseded to 532145101)

$78.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 4895H

"TI, BEARING"
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

9

Electrolux/AYP 154467

WASHER SEAL
(Superseded to 532154467)

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 7392M

SUB= 100482K
(Superseded to 532007392)

$

$

Not available

11

Electrolux/AYP 100371K

SPRING-SHIFT CRT
(Superseded to 532100371)

$7.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 106160X

O-RING TI
(Superseded to 532106160)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 142145

BRACKET ASM SHIFT
(Superseded to 532142145)

$

$

Not available

14

Electrolux/AYP 8353J

SHIFT FORK TI
(Superseded to 532008353)

$34.99

$

In Stock, Qty 7

0

15

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

16

Electrolux/AYP 154466

SHAFT.SHIFTER
(Superseded to 532154466)

$6.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 4358J

WASHER
(Superseded to 532004358)

$7.49

$

In Stock, only 3 left!

0

19

Electrolux/AYP 12000040

KLIP RING
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 102114X

GEAR ASSY CRT
(Superseded to 532102114)

$

$

Not available

21

Electrolux/AYP 102115X

GEAR-REV IDLR CRT
(Superseded to 532102115)

$26.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 6803J

NEEDLE BEARING TI
(Superseded to 532006803)

$10.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 102111X

SHAFT CRT
(Superseded to 532102111)

$22.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 73610700

NUT.ASF.HEX.7/16
(Superseded to 873610700)

$7.49

$

In Stock, only 3 left!

0

27

Electrolux/AYP 143009

BEARING.SHAFT.LH.
(Superseded to 532431219)

$

$

Not available

28

Electrolux/AYP 106390X

BUSHING TI
(Superseded to 532106390)

$5.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 102134X

CHAIN CRT
(Superseded to 532102134)

$31.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 150737

GROUND SHAFT ASSY
(Superseded to 532150737)

$

$

Not available

31

Electrolux/AYP 143008

BEARING.SHAFT.RH.
(Superseded to 532143008)

$

$

Not available

32

Electrolux/AYP 106388X

SPACER TI
(Superseded to 532106388)

$6.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 102121X

SPRCKT 8 GEAR CRT
(Superseded to 532102121)

$

$

Not available

34

Electrolux/AYP 102112X

SHFT 2ND RED. CRT
(Superseded to 532102112)

$43.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 102101X

SCRW WHIZ LOK CRT
(Superseded to 532102101)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 154355

SPROCKET.ASM.W/BR
(Superseded to 532154355)

$

$

Not available

37

Electrolux/AYP 4422J

BEARING
(Superseded to 585695502)

$6.99

$

In Stock, only 2 left!

0

38

Electrolux/AYP 154356

SUB= 154355
(Superseded to 532154355)

$

$

Not available

39

Electrolux/AYP 105345X

GEAR TI
(Superseded to 532131527)

$

$

Not available

40

Electrolux/AYP 105346X

GEAR TI
(Superseded to 532105346)

$45.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 8358J

REDUCTION SHFT TI
(Superseded to 532008358)

$17.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 4220R

BRNG RACE
(Superseded to 532004220)

$5.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 106146X

SPACER TI
(Superseded to 532106146)

$34.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 155236

SEAL ASM-OIL
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

48

Electrolux/AYP 150700

GEARCASE RH W/BRG

$

$

Not available

49

Electrolux/AYP 132688

TINE SHAFT
(Superseded to 532432058)

$

$

Not available

50

Electrolux/AYP 106147X

CHAIN.50 LINK TI
(Superseded to 532106147)

$66.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 122204X

SUB= 918122204X
(Superseded to 532165140)

$93.99

$

In Stock, only 1 left!

0

Electrolux/AYP 6066J

GREASE PREMIUM-1
(Superseded to 585517301)

$

$

Not available
