PP RT55 A - Poulan Tiller (1997) TRANSMISSION Parts Diagram

Tiller

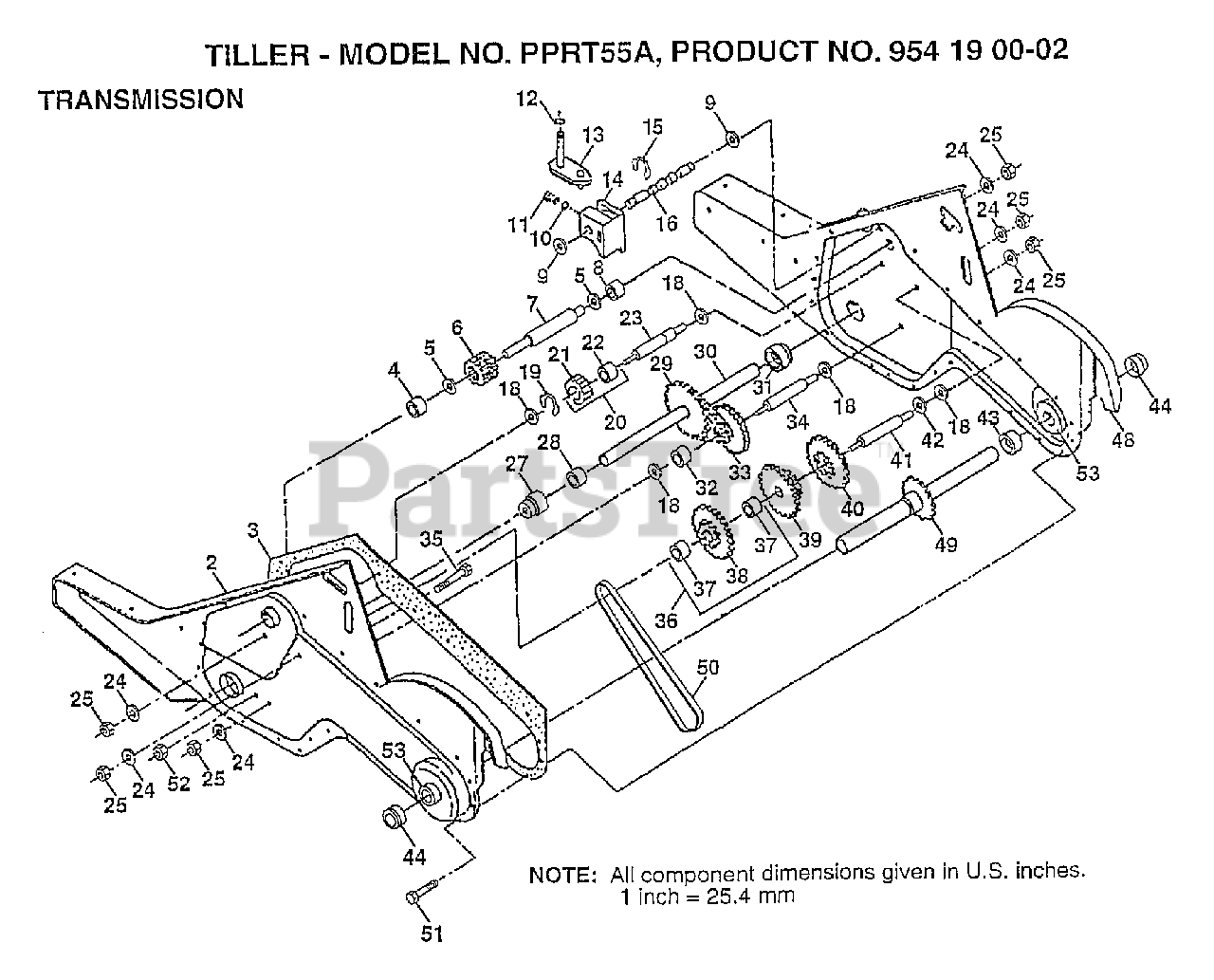

TRANSMISSION Parts Diagram

  • Title

1

Electrolux/AYP 154354

SUB= 165805
(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 150698

GEARCASE LH W/BRG
(Superseded to 532407383)

$849.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 106211

GASKET, GEARCASE

$

$

Not available

4

Electrolux/AYP 5020J

NEEDLE BRNG LT
(Superseded to 532005020)

$17.99

$

In Stock, Qty 5

0

5

Electrolux/AYP 1370H

"T, BEARING"
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 137335

GEAR PINION INPUT
(Superseded to 586196301)

$26.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 145101

"SHAFT.INPUT.""D"""
(Superseded to 532145101)

$78.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 124792X

BEARING NEEDLE

$

$

Not available

9

Electrolux/AYP 154467

WASHER SEAL
(Superseded to 532154467)

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 124697X

BALL, STEEL

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 100371

SPRING SHIFT FORK

$

$

Not available

12

Electrolux/AYP 106160

O-RING

$

$

Not available

13

Electrolux/AYP 142145

BRACKET ASM SHIFT
(Superseded to 532142145)

$

$

Not available

14

Electrolux/AYP 8353J

SHIFT FORK TI
(Superseded to 532008353)

$34.99

$

In Stock, Qty 7

0

15

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

16

Electrolux/AYP 154466

SHAFT.SHIFTER
(Superseded to 532154466)

$6.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 4358J

WASHER
(Superseded to 532004358)

$7.49

$

In Stock, only 3 left!

0

19

Electrolux/AYP 12000040

KLIP RING
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 102114

GEAR ASSEMBLY

$

$

Not available

21

Electrolux/AYP 102115

GEAR REVERSE IDLER

$

$

Not available

22

Electrolux/AYP 6803J

NEEDLE BEARING TI
(Superseded to 532006803)

$10.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 102111

SHAFT, REVERSE IDLER

$

$

Not available

24

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 73610700

NUT.ASF.HEX.7/16
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

27

Electrolux/AYP 143009

BEARING.SHAFT.LH.
(Superseded to 532431219)

$

$

Not available

28

Electrolux/AYP 106390

SPACER

$

$

Not available

29

Electrolux/AYP 102134

CHAIN

$

$

Not available

30

Electrolux/AYP 150737

GROUND SHAFT ASSY
(Superseded to 532150737)

$

$

Not available

31

Electrolux/AYP 143008

BEARING.SHAFT.RH.
(Superseded to 532143008)

$

$

Not available

32

Electrolux/AYP 106388

SPACER

$

$

Not available

33

Electrolux/AYP 102121

SPROCKET AND GEAR ASSEMBLY

$

$

Not available

34

Electrolux/AYP 102112

SHAFT REDUCTION

$

$

Not available

35

Electrolux/AYP 102101

SCREW WHIZ LOCK

$

$

Not available

36

Electrolux/AYP 154355

SPROCKET.ASM.W/BR
(Superseded to 532154355)

$

$

Not available

37

Electrolux/AYP 124791X

BEARING NEEDLE

$21.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 154356

SUB= 154355
(Superseded to 532154355)

$

$

Not available

39

Electrolux/AYP 105345

GEAR CLUSTER RED 1ST AND 2ND

$

$

Not available

40

Electrolux/AYP 105346

GEAR REVERSE

$

$

Not available

41

Electrolux/AYP 8358J

REDUCTION SHFT TI
(Superseded to 532008358)

$17.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 4220R

BRNG RACE
(Superseded to 532004220)

$5.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 106146

SPACER

$

$

Not available

44

Electrolux/AYP 155236

SEAL ASM-OIL
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

48

Electrolux/AYP 150700

GEARCASE RH W/BRG

$

$

Not available

49

Electrolux/AYP 132688

TINE SHAFT
(Superseded to 532432058)

$

$

Not available

50

Electrolux/AYP 106147

CHAIN ROLLER

$

$

Not available

51

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 122204

KIT BEARING

$

$

Not available

Electrolux/AYP 6066J

GREASE PREMIUM-1
(Superseded to 585517301)

$

$

Not available
