PP RT55 A - Poulan Tiller (1997) TINE SHIELD Parts Diagram

Tiller

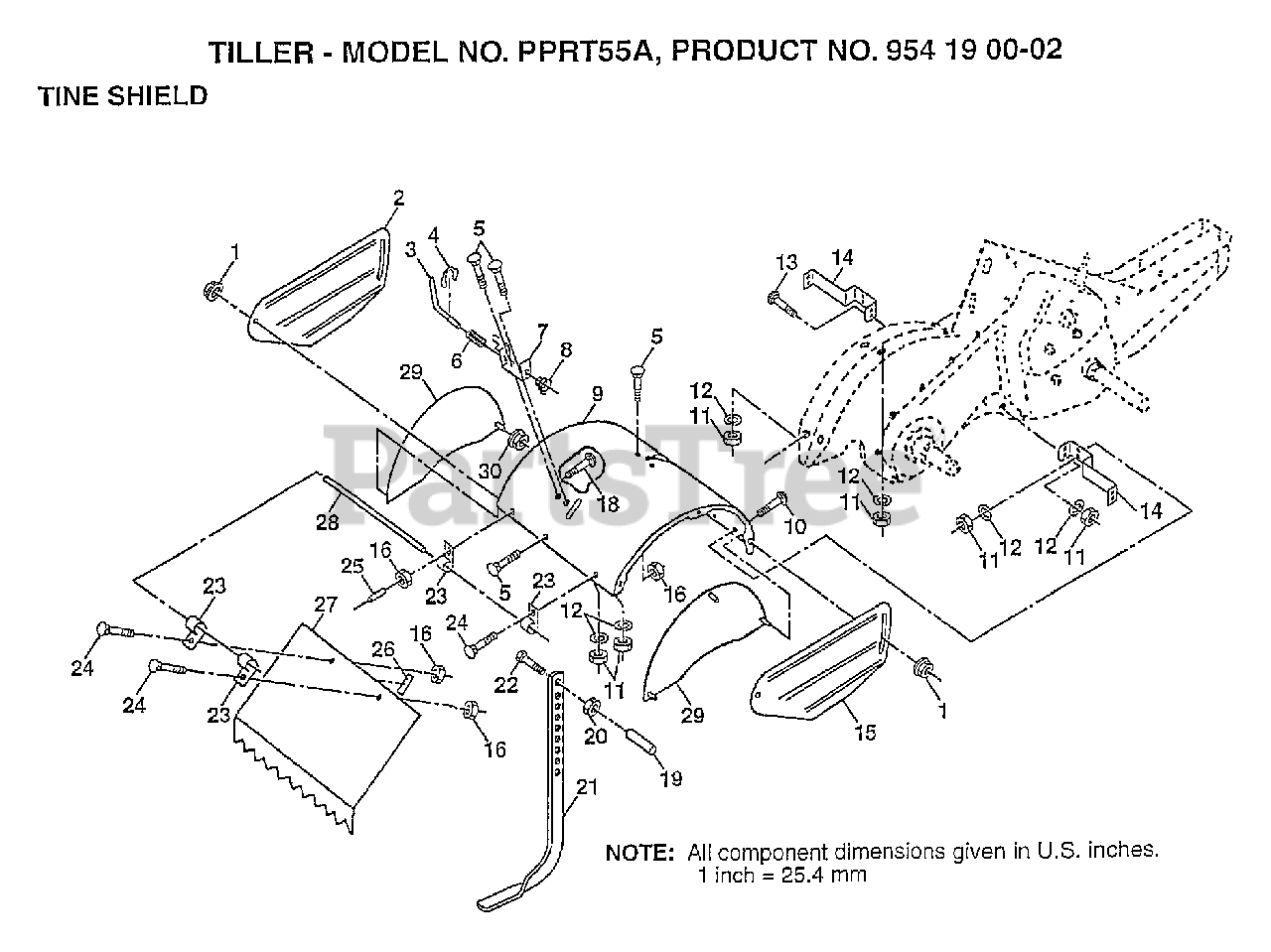

TINE SHIELD Parts Diagram

  • Title
1

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

2

Electrolux/AYP 125427X

SHIELD SIDE OUTER

$

$

Not available

3

Electrolux/AYP 8393J

STAKE PIN TI
(Superseded to 532008393)

$31.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 8394J

SPRING TI
(Superseded to 532008394)

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 8392J

LATCH BRACKET TI
(Superseded to 532008392)

$5.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 109230

SPRING DEPTH STAKE

$

$

Not available

9

Electrolux/AYP 142036

SHIELD TINE

$

$

Not available

10

Electrolux/AYP 72140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72110510

BOLT
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 124311X

"BRACKET,SHIELD"
(Superseded to 581813501)

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 125428X

SHIELD SIDE OUTER

$

$

Not available

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

18

Electrolux/AYP 72040410

BOLT
(Superseded to 872040410)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

20

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 102156

STAKE DEPTH

$

$

Not available

22

Electrolux/AYP 74930632

BOLT
(Superseded to 874930632)

$6.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 4440J

HINGE CRT
(Superseded to 532004440)

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 72140404

BOLT
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

25

$

$

Not available

26

$

$

Not available

27

Electrolux/AYP 125410X

SHIELD LEVELING

$

$

Not available

28

$

$

Not available

29

Electrolux/AYP 142037

SHIELD SIDE

$

$

Not available

30

Electrolux/AYP 73970500

LOCKNUT TI
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
