PP RT55 A - Poulan Tiller (1997) HANDLE ASSEMBLY Parts Diagram

Tiller

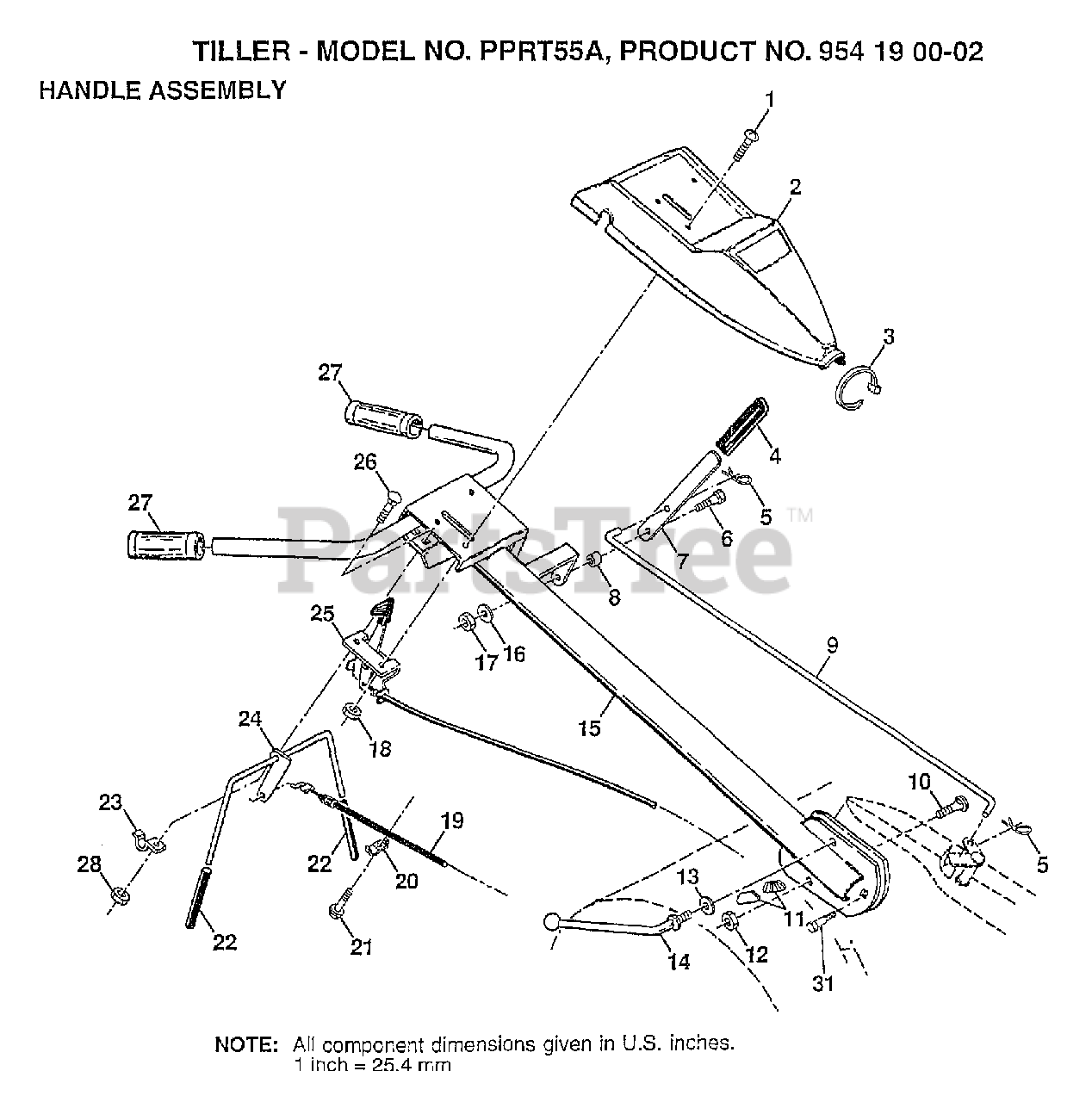

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 71191008

SCREW.PNHD.10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 126951

PANEL, CONTROL

$

$

Not available

3

Electrolux/AYP 104164

TIE, CABLE

$

$

Not available

4

Electrolux/AYP 124797X

GRIP HANDLE

$

$

Not available

5

Electrolux/AYP 124788X

SUB= 4497H

$

$

Not available

6

Electrolux/AYP 81328

SHOULDER BOLT ST
(Superseded to 532081328)

$6.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 109335

SUB= 109335X

$

$

Not available

8

Electrolux/AYP 109313

GROMMET, RUBBER

$

$

Not available

9

Electrolux/AYP 109337

ROD SHIFT

$

$

Not available

10

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 109229

LOCK, HANDLE

$

$

Not available

12

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 19131611

WASHER CRT
(Superseded to 596140201)

$3.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 109228

LEVER, LOCK HANDLE

$

$

Not available

15

Electrolux/AYP 150256

SUB= 150256X431
(Superseded to 180517X428)

$113.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 73731000

NUT

$2.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 147668

CABLE.CLUTCH.48.Z
(Superseded to 532147668)

$

$

Not available

20

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

22

Electrolux/AYP 102604

GRIP BAR CONTROL

$

$

Not available

23

Electrolux/AYP 102744

CLAMP BAR CONTROL

$

$

Not available

24

Electrolux/AYP 105216

BAR ASSEMBLY CONTROL

$

$

Not available

25

Electrolux/AYP 127012

CONTROL THROTTLE

$

$

Not available

26

Electrolux/AYP 72140404

BOLT
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

28

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

31

Electrolux/AYP 150696

BOLT PIVOT
(Superseded to 532150696)

$7.49

$

In Stock, only 3 left!

0
