PP RT5 K - Poulan Tiller (1995) MAINFRAME, LEFT SIDE Parts Diagram

Tiller

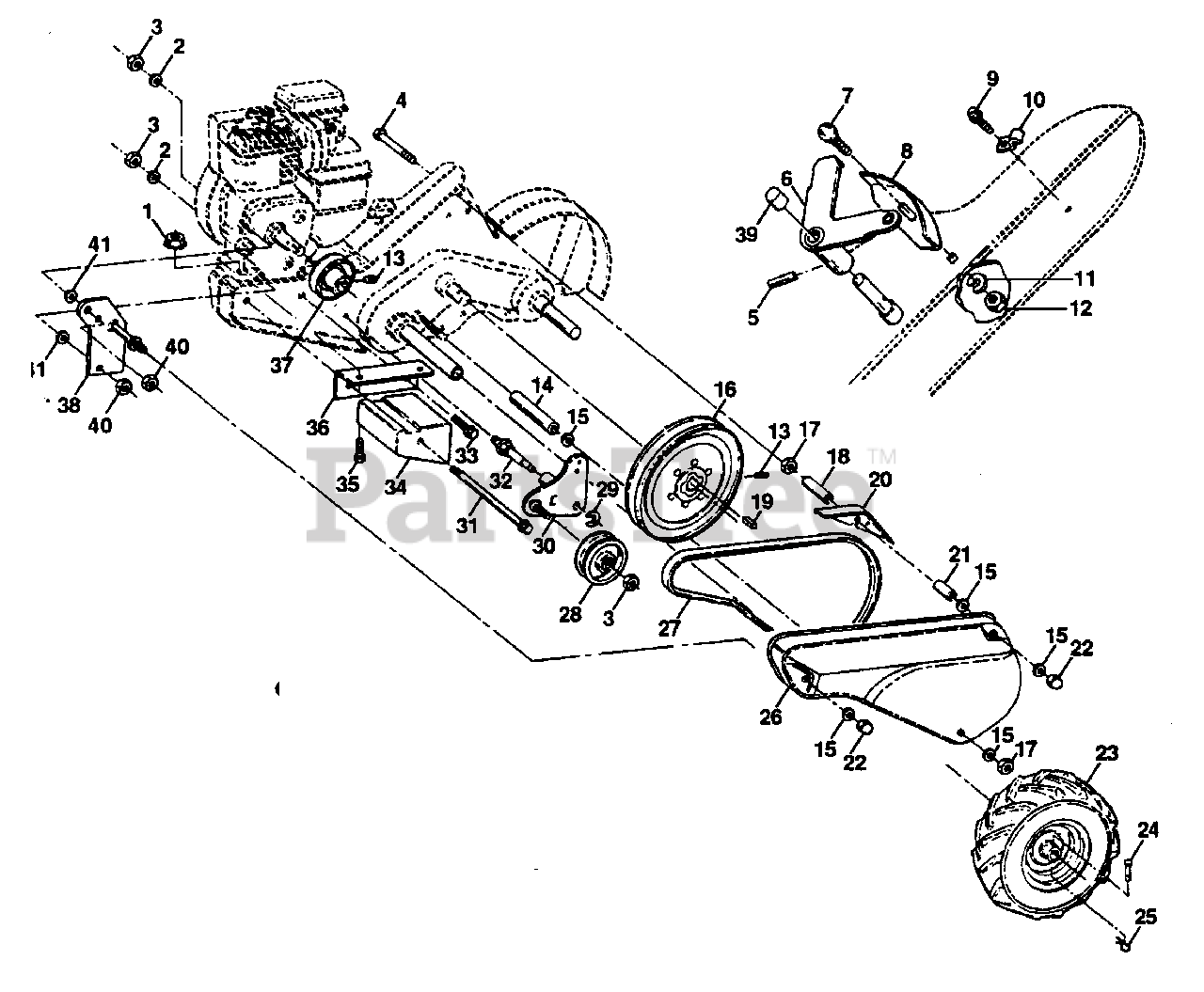

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

1

Electrolux/AYP 873510500

Nut, Keps 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 810040600

Washer, Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 874930568

Bolt, Hex 5/16-18 x 4-1/4

$

$

Not available

5

Electrolux/AYP 532124963

Pin, Roll
(Superseded to 532002882)

$

$

Not available

6

Electrolux/AYP 532110111

Lever, Shift

$18.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532008700

Plate, Shift Indicator

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 532086777

Screw, Hex, Washer Head, Slotted # 10-24 x 1/2
(Superseded to 532750097)

$4.99

$

In Stock, Qty 14

0

10

Electrolux/AYP 532009484

Clip

$6.49

$

In Stock, only 4 left!

0

11

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 823230506

Screw, Set, Hex 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 532120938

Spacer, Split 0.327 x 0.42 x 2.68
(Superseded to 120938X)

$

$

Not available

15

Electrolux/AYP 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 532100473

Sheave, Transmission

$

$

Not available

17

Electrolux/AYP 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532110651

Spacer, Split 0.327 x 0.42 x 1.75

$

$

Not available

19

Electrolux/AYP 532002649

Key, Square 3/16 x 1-1/8

$6.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 532110653

Guard, Pinch Point

$

$

Not available

21

Electrolux/AYP 532131691

Spacer, Split 0.327 x 0.42 x 1.627

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532104214

Nut, Cap 5/16-18

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532005015

Tire

$145.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 532128952

Rim

$

$

Not available

23

Electrolux/AYP 532124718

Tire Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 532126875

Rivet, Drilled

$6.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 532125341

Guard, Belt

$

$

Not available

27

Electrolux/AYP 532132801

Belt, V
(Superseded to 591372401)

$17.99

$

In Stock, Qty 7

0

28

Electrolux/AYP 532104679

Pulley, Idler

$18.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 812000032

Ring, Klip

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532105611

Bracket, Idler
(Superseded to 532159229)

$

$

Not available

31

Electrolux/AYP 532102384

Bolt, Hex 5/16-16 x 12

$9.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532102141

Shaft, Idler Arm

$7.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532102383

Counterweight, L. H.

$133.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 874760524

Bolt, Hex 5/16-18 x 1-1/2
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532102331

Bracket, Reinforcement, L. H.
(Superseded to 584366901)

$13.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532130812

Sheave, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Electrolux/AYP 532131556

Bracket, Guard Belt

$

$

Not available

39

Electrolux/AYP 532140062

Cap, Plunger Blk

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 873800400

Nut Lock w/insert 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 819091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0
