PP LGT 2248 (960480093-00) - Poulan Pro Lawn Tractor (2015-09) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

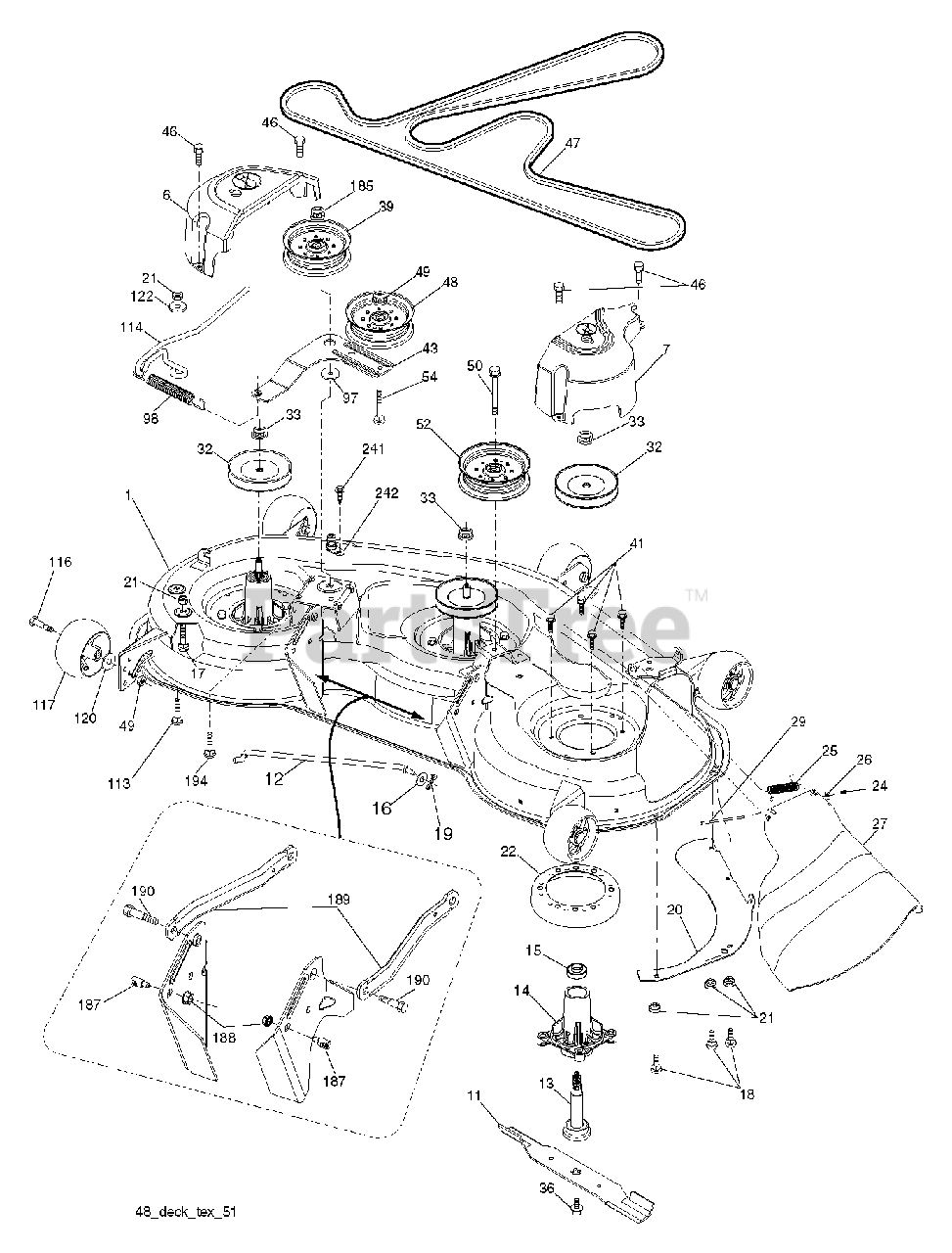

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 587836401

DECK SVC 48"TEX.
(Superseded to 583278601)

$683.99

$

Usually ships in 3-10 days

0

6

Poulan 532197248

COVER.MANDREL.LH.48"

Note: LEFT

$34.99

$

In Stock, only 2 left!

0

7

Poulan 532199102

COVER.MANDREL.RH.48"
(Superseded to 587452401)

Note: RIGHT

$20.99

$

In Stock, only 3 left!

0

11

Poulan 532180054

48" HI-LIFT BLADE

$22.99

$

In Stock, Qty 20+

0

12

Poulan 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, only 2 left!

0

13

Poulan 587256401

Mandrel Assembly, Greaseable
(Superseded to 587820301)

$56.99

$

In Stock, Qty 11

0

14

Poulan 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

Poulan 585323901

Extended Mandrel Bearing, Top

$14.99

$

In Stock, only 2 left!

0

16

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

17

Poulan 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 532174378

BAFFLE, VORTEX MWR

$14.99

$

Usually ships in 3-10 days

0

21

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

24

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532181707

(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

29

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

32

Poulan 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

36

Poulan 584309301

Screw, 7/16 X 20 X 1"

$3.99

$

In Stock, only 2 left!

0

39

Poulan 532197380

PULLEY.IDLER.4.50/HUB SPECIAL
(Superseded to 532196104)

$43.99

$

In Stock, Qty 14

0

41

Poulan 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$4.99

$

In Stock, Qty 16

0

43

Poulan 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Poulan 532197242

BELT.DRIVE.DECK
(Superseded to 593773401)

$62.99

$

In Stock, Qty 7

0

48

Poulan 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 13

0

49

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Poulan 817490636

SCREW TT 3/8-16X2-1/4 UNC

$2.49

$

In Stock, Qty 5

0

52

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

54

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

97

Poulan 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

98

Poulan 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 7

0

113

Poulan 872110508

BOLT CRT

Note: 1700051

$4.99

$

Usually ships in 3-10 days

0

114

Poulan 532197451

ROD.TENSION.RELIEF.TEX (2 2)

$18.99

$

In Stock, only 1 left!

0

116

Poulan 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Poulan 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

Note: 53288606

$10.99

$

Usually ships in 3-10 days

0

120

Poulan 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

122

Poulan 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

185

Poulan 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 12

0

187

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

188

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

189

Poulan 532195185

ARM.SUSPENSION.MOWER

Note: 7390050

$18.99

$

Usually ships in 3-10 days

0

190

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

194

Poulan 874490736

BOLT.HEX.WASHER.HEAD.7/16-24X

$13.99

$

In Stock, only 4 left!

0

241

Poulan 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Poulan 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

--

Poulan 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

--

Poulan 587125401

Mandrel Assembly, Greaseable
(Superseded to 587820301)

Note: MANDREL ASSEMBLY (includes Housing (Key 14) Shaft Assembly (Key 13) and Bearing Only (Key 15) and (Key 33) Pulley /Washer and Blade Bolt /Washers Not Included)

$56.99

$

In Stock, Qty 11

0

--

Poulan 501688501

$

$

Currently unavailable
