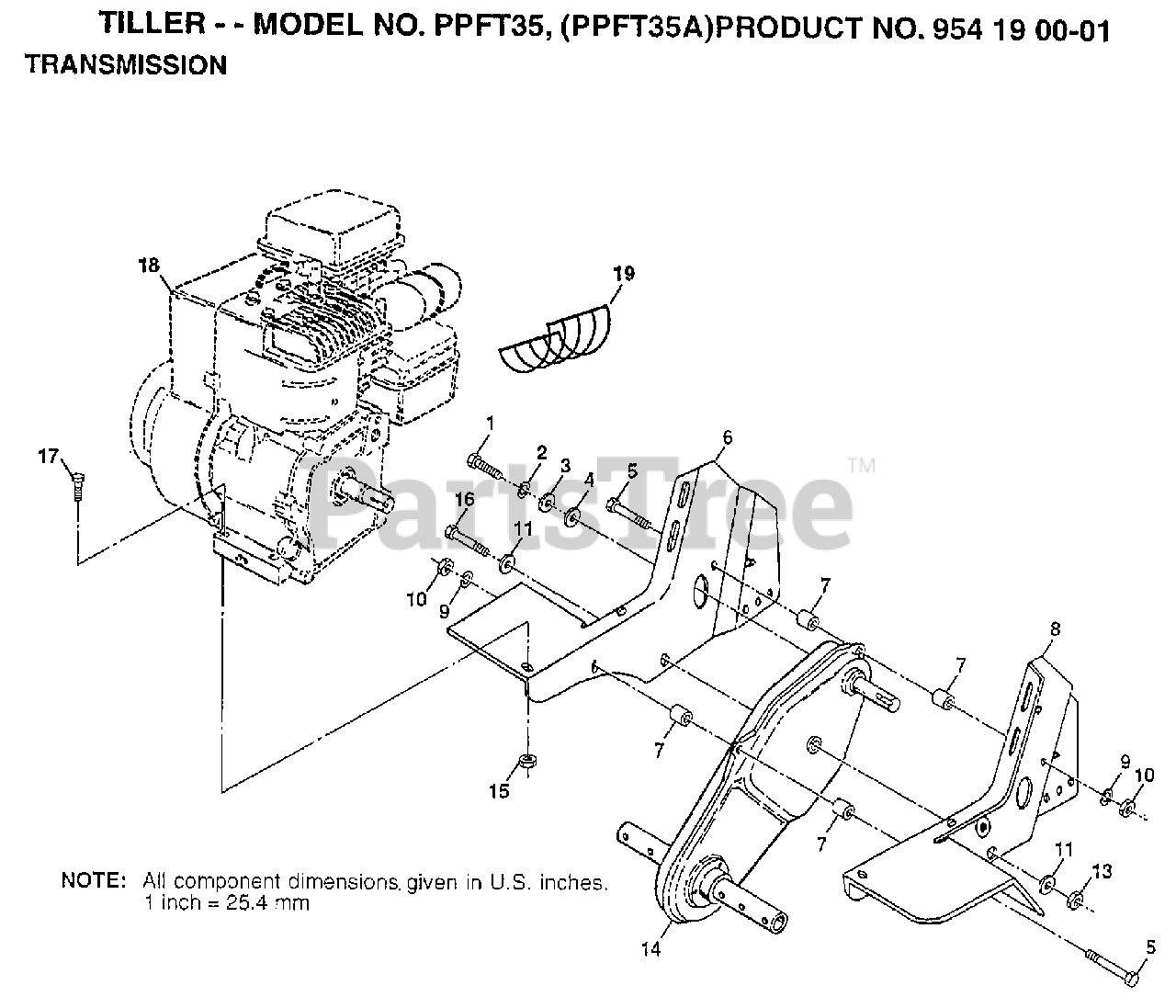

PP FT35 - Poulan Tiller TRANSMISSION Parts Diagram

Tiller

TRANSMISSION Parts Diagram

  • Title

1

Electrolux/AYP 874610412

BOLT, HEX 1/4-28 X 3/4 GR. 5
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 810040400

WASHER, LOCK 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 819092016

WASHER 9/32 X 1-1/4 X 16 GA.

$6.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 819091412

WASHER 9/32 X 7/8 X 12 GA.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 874760544

BOLT, HEX 5/16-18 X 2-3/4
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532125357

SUB= 2606J421

$

$

Not available

7

Electrolux/AYP 532009173

SUB= 9173R

$

$

Not available

8

Electrolux/AYP 532125358

SUB= 132212X421

$11.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 810040500

WASHER, LOCK

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 873220500

NUT, HEX

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 819131311

WASHER 13/32 X 13/16 X 11 GA.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532151937

SUB= 151937

$188.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873510500

NUT, KEPS 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 874780652

BOLT, HEX 3/8-16 X 3-1/4
(Superseded to 583614901)

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 874760524

BOLT, HEX 5/16-18 X 1-1/2
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

18

REFER TO IMAGE

$

$

Not available
