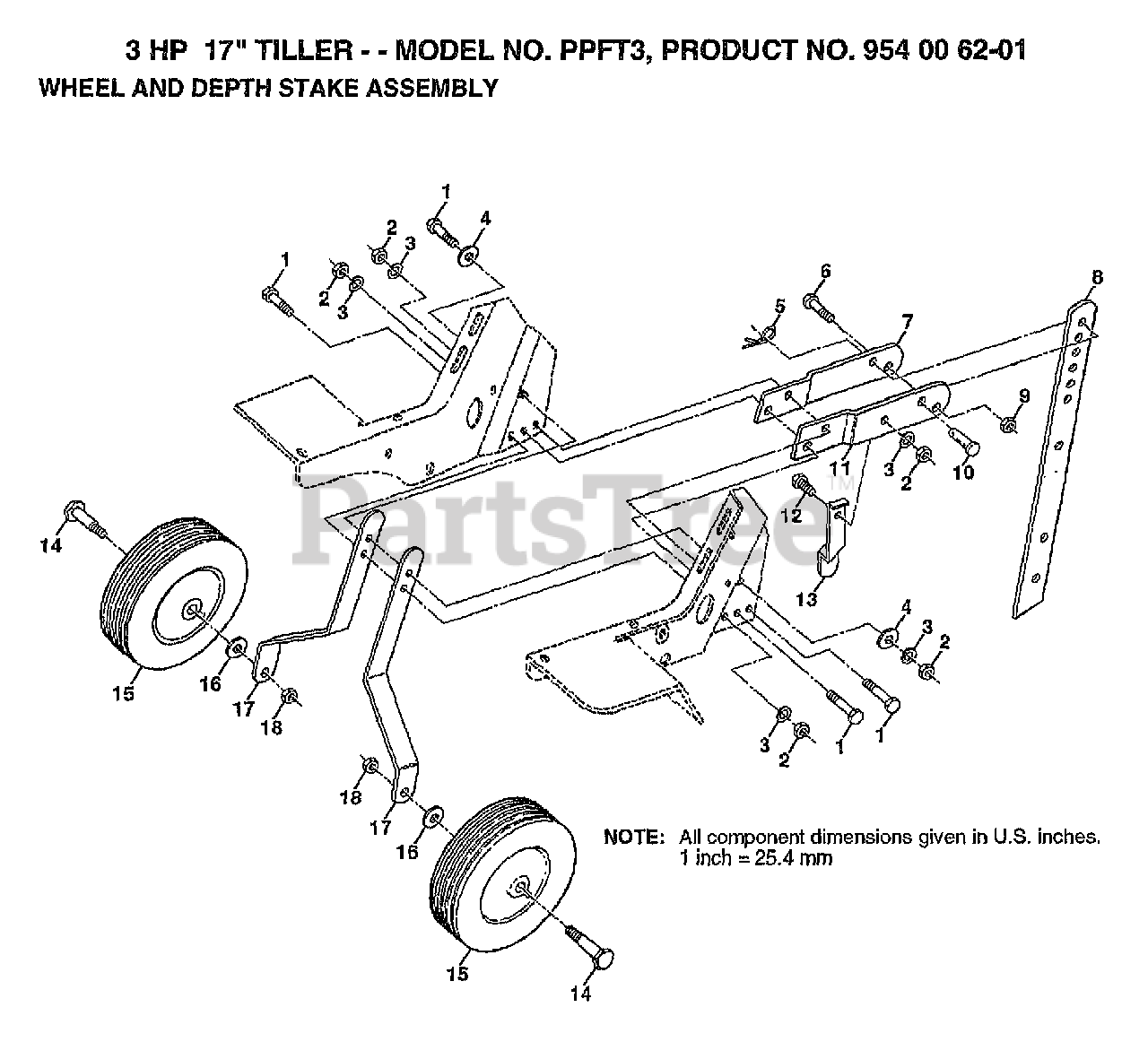

PP FT3 - Poulan Tiller 3HP 17" TILLER-WHEEL AND DEPTH STAKE Parts Diagram

Tiller

3HP 17" TILLER-WHEEL AND DEPTH STAKE Parts Diagram

  • Title

1

Electrolux/AYP 874760520

BOLT, HEX 5/16-18 X 1-1/4
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 873220500

NUT, HEX

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 810040500

WASHER, LOCK

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 819121414

WASHER 3/8 X 7/8 X 14 GA.
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532124961

SUB= 4921H
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 874610624

BOLT

$6.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 532000318

SUB= 318J

$

$

Not available

8

Electrolux/AYP 532009193

SUB= 9193R500

$

$

Not available

9

Electrolux/AYP 532124701

SUB= 7810H
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532009551

SUB= 9551R

$

$

Not available

11

Electrolux/AYP 532000317

SUB= 317J500

$

$

Not available

12

Electrolux/AYP 874760512

BOLT, HEX 5/16-18 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532000325

SUB= 325J

$

$

Not available

14

Electrolux/AYP 532121117

SUB= 121117X

$8.99

$

In Stock, Qty 5

0

15

Electrolux/AYP 532009186

SUB= STD333760

$

$

Not available

16

Electrolux/AYP 819131311

WASHER 13/32 X 13/16 X 11 GA.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532009189

SUB= 674H4
(Superseded to 532000674)

$

$

Not available

18

Electrolux/AYP 873680600

NUT, CROWNLOCK 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0
