PP FT3 - Poulan Tiller 3HP 17" TILLER-BELT GUARD AND PULLEY Parts Diagram

Tiller

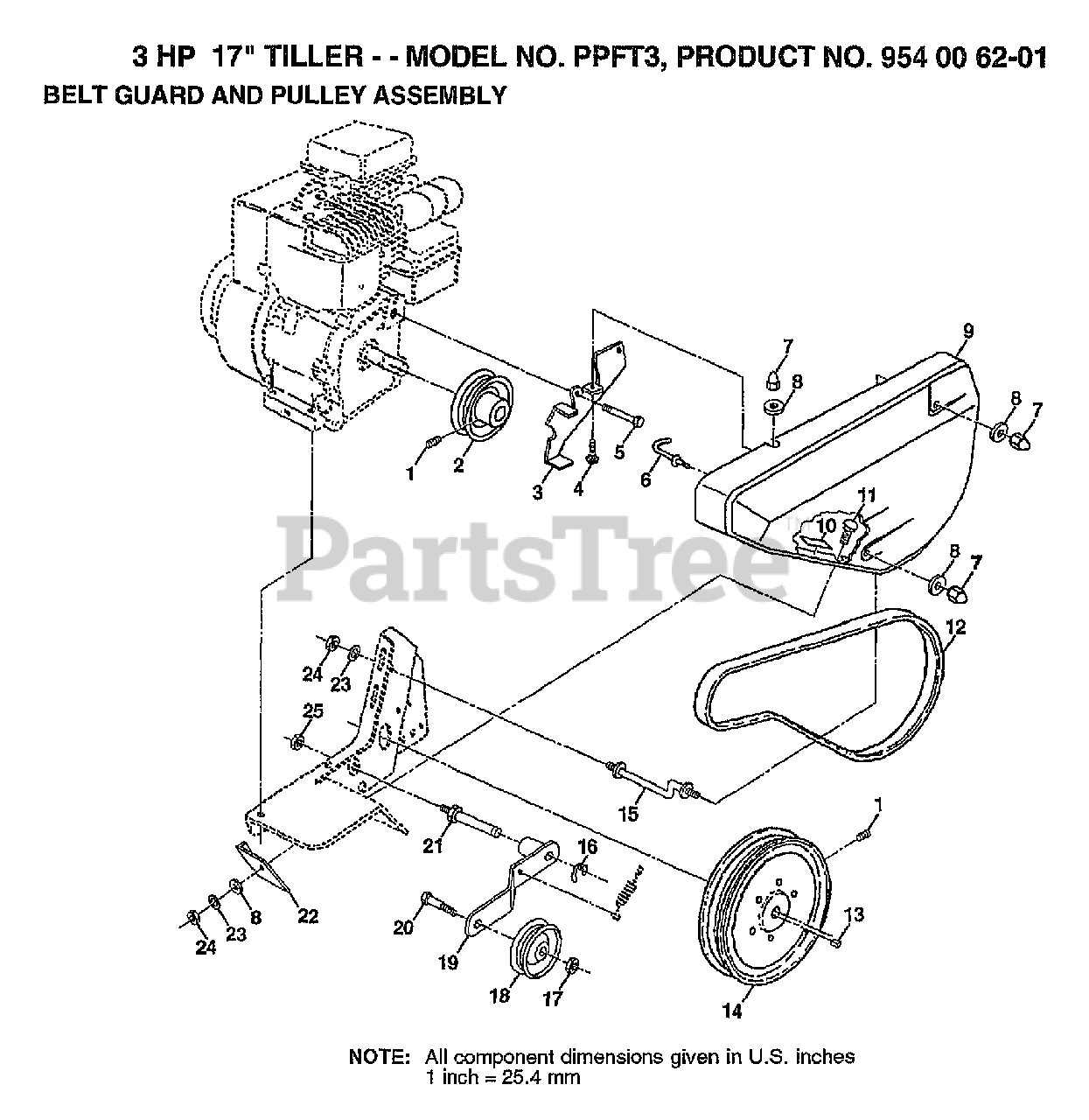

3HP 17" TILLER-BELT GUARD AND PULLEY Parts Diagram

  • Title

1

Electrolux/AYP 823230506

SCREW, SET FORGED SOCKET, HEADLESS 5/16-18X3/8

$4.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 532130811

ENGINE PULLEY

$

$

Not available

3

Electrolux/AYP 532122955

SUB= 122955X

$

$

Not available

4

Electrolux/AYP 872140404

BOLT, CARRIAGE 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 874770812

BOLT, HEX 1/2-20X3/4

$

$

Not available

6

Electrolux/AYP 532121463

SUB= 121463X

$

$

Not available

7

Electrolux/AYP 532104213

SUB= 104213X
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 819091016

WASHER 9/32 X 5/8 X 16 GA.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

9

Electrolux/AYP 532125342

SUB= 131157X421

$

$

Not available

10

Electrolux/AYP 532109227

SUB= 109227X

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 872140406

BOLT, CARRIAGE 1/4-20 X 3/4
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532009179

SUB= TH3H390

$

$

Not available

13

Electrolux/AYP 532002649

SUB= 2649M

$6.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 532009174

SUB= 9174R

$

$

Not available

15

Electrolux/AYP 532132213

BELT GUARD BOLT

$

$

Not available

16

Electrolux/AYP 812000036

RING, KLIP

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 873350600

NUT HEX JAM 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 532009178

SUB= 75673
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532124688

SUB= 674A30

$

$

Not available

20

Electrolux/AYP 874760620

BOLT, HEX 3/8-16 X 1-1/4

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532106968

SUB= 106968X

$15.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532105358

SUB= 105358X

$

$

Not available

23

Electrolux/AYP 810040400

WASHER, LOCK 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

24

Electrolux/AYP 873220400

NUT, HEX 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 873350500

NUT, HEX, JAM 5/16-18

$8.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532132833

NLA

$

$

Not available
