PP 927 ES-A - Poulan Pro Snow Thrower (2002) Wheels Parts Diagram

Snow Thrower

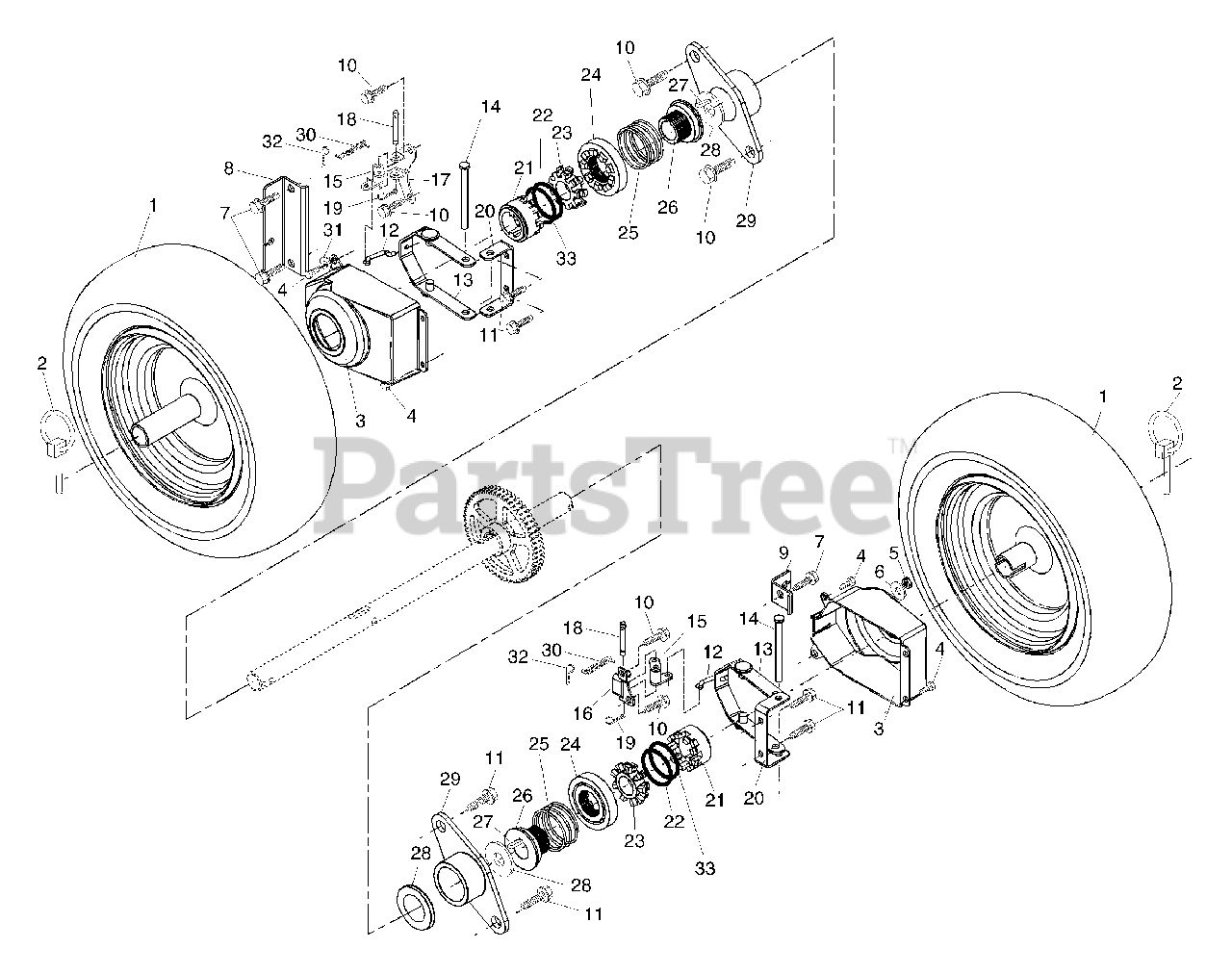

Wheels Parts Diagram

  • Title

1

Electrolux/AYP 178834

Wheel Assembly (16" Power Steer)

$

$

Not available

2

Electrolux/AYP 155443

Pin, Klik 1/4
(Superseded to 532155443)

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 181843

Cover, Power Steering
(Superseded to 532405161)

$10.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 17541008

Screw, Hex Head #10-24 x 1/2
(Superseded to 817541008)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 73800500

Nut, Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 155415

Washer, Flat 5/16
(Superseded to 532155415)

$5.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 71210616

Screw, Hex Head 3/8-16 x 1
(Superseded to 871210616)

$5.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 182064X479

Bracket, Steer Cable RH
(Superseded to 532185603)

$12.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 182044X479

Bracket, Steer Cable LH
(Superseded to 532415263)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 150078

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

11

Electrolux/AYP 17490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 184393

Link, Steering Lever
(Superseded to 532405077)

$

$

Not available

13

Electrolux/AYP 184288X479

Lever Assembly, Steering
(Superseded to 193506X431)

$8.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 182015

Pin, Steering Lever
(Superseded to 532182015)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 184361

Bellcrank Assembly
(Superseded to 584375101)

$10.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 181982

Bracket Assembly, LH Steering

$

$

Not available

17

Electrolux/AYP 182063

Bracket Assembly, RH Steering

$

$

Not available

18

Electrolux/AYP 181847

Pin, Steering Bellcrank
(Superseded to 532181847)

$12.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 85179

Retainer, Hairpin
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 179148X479

Bracket, Lever Assembly
(Superseded to 532184197)

$

$

Not available

21

Electrolux/AYP 179141

Driver, Wheel
(Superseded to 532179141)

$

$

Not available

22

Electrolux/AYP 182466

Ring, Wire Retainer
(Superseded to 532182466)

$7.49

$

In Stock, only 4 left!

0

23

Electrolux/AYP 179136

Lobe, Wheel

$

$

Not available

24

Electrolux/AYP 179138

Slide, Clutch
(Superseded to 532179138)

$

$

Not available

25

Electrolux/AYP 179139

Spring, Clutch Slide
(Superseded to 532179139)

$6.49

$

In Stock, Qty 8

0

26

Electrolux/AYP 179137

Lobe, Axle
(Superseded to 532179137)

$39.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 178879

Key, Square 1/4
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 174697

Washer, Thrust (1")

$

$

Not available

29

Electrolux/AYP 179830

Bearing, Axle
(Superseded to 532179830)

$24.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 182226

Spring, Return
(Superseded to 532182226)

$8.99

$

In Stock, Qty 7

0

31

Electrolux/AYP 4802

Washer, Flat

$

$

Not available

32

Electrolux/AYP 700279

Clip, Retainer
(Superseded to 532700279)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 12000045

Ring, Retaining
(Superseded to 812000045)

$7.49

$

In Stock, only 4 left!

0
