PP 850 PX - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 124802 Parts Diagram

Walk-Behind Mower

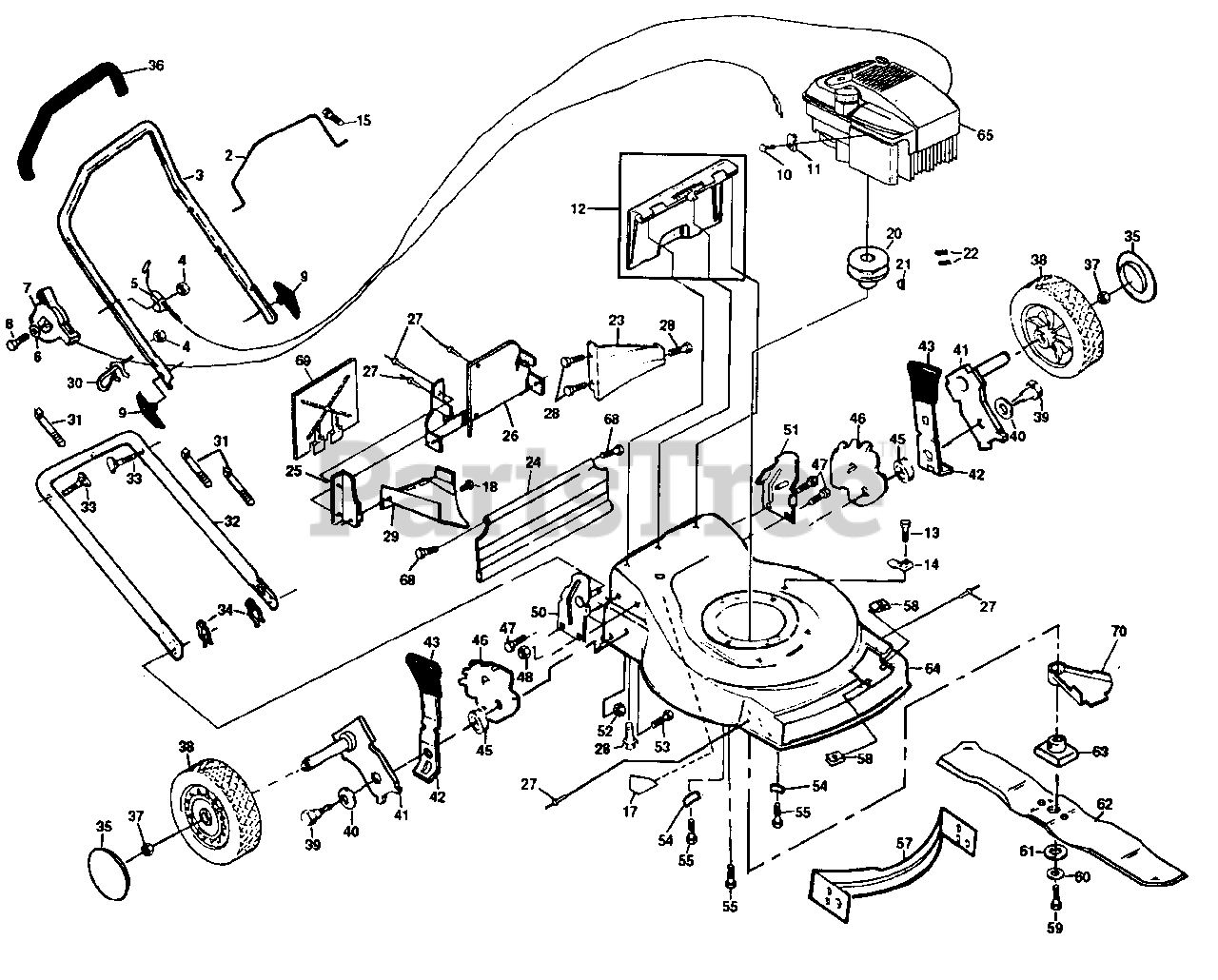

MOWER HOUSING, ENGINE B/S 124802 Parts Diagram

  • Title

2

Poulan 532801784

Control Bar (AYP part number)

$

$

Not available

3

Poulan 532125271

Upper Handle (AYP part number)

$

$

Not available

4

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 532130861

Engine Zone Control Cable

$

$

Not available

6

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532132536

Throttle Control (AYP part number)
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

8

Poulan 532085692

Machine Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

10

Poulan 532083816

Screw #10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532213146

Cable Clamp (Engine) (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 532128732

Rear Door Kit (AYP part number)

$

$

Not available

13

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Poulan 532087930

Housing Cable Guide (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 532851552

Self-tapping Screw #10-24 x .625 (AYP part number)

$

$

Not available

17

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

18

Poulan 532086344

Screw (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

21

Poulan 532087677

Hi Pro Key #505 (AYP part number)

$

$

Not available

22

Poulan 532059708

Set Screw 1/4-20 x 5/16 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532125348

Baffle, Rear (AYP part number)
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 532128796

Rear Skirt (AYP part number)
(Superseded to 532140540)

$13.99

$

Usually ships in 3-10 days

0

25

Poulan 532125347

Side Baffle (AYP part number)

$

$

Not available

26

Poulan 532125366

Back Plate (AYP part number)

$

$

Not available

27

Poulan 532128415

Pop Rivet (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 532054583

Screw Hex Head 1/4-20 x 1/2 (AYP part number)

$

$

Not available

29

Poulan 532125346

Discharge Baffle (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

30

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

31

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

32

Poulan 532125377

Lower Handle (AYP part number)

$

$

Not available

33

Poulan 532131959

Handle Bolt (AYP part number)
(Superseded to 532183724)

$

$

Not available

34

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

36

Poulan 532850724

Grip, Handle, Foam, Corduroy (AYP part number)
(Superseded to 532155890)

$

$

Not available

37

Poulan 532083923

Hex Flange Locknut 3/8-16 (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Poulan 532134781

Wheel & Tire Assembly 9.00 x 2.00

$

$

Not available

39

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

40

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

41

Poulan 532125169

Axle Arm (AYP part number)
(Superseded to 532750610)

$

$

Not available

42

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

43

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

45

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

46

Poulan 532850904

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 532055187

Self-tapping Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

48

Poulan 532063124

Locknut 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

50

Poulan 532125193

Handle Bracket (Right) (AYP part number)

$

$

Not available

51

Poulan 532125305

Handle Bracket (Left) (AYP part number)

$

$

Not available

52

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 532070505

Carriage Bolt 5/16-18 x 5/8

$

$

Not available

54

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

55

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 532125345

Front Baffle (AYP part number)
(Superseded to 532125238)

$34.99

$

Usually ships in 3-10 days

0

58

Poulan 532075449

Speed Nut (U Type) (AYP part number)

$

$

Not available

59

Poulan 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Poulan 532850263

Helical Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

61

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

62

Poulan 532134768

Blade 22" (AYP part number)
(Superseded to 532752234)

$

$

Not available

63

Poulan 532851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

64

Poulan 532134857

Lawn Mower Housing Kit (Inc.17)

$

$

Not available

68

Poulan 532088652

Screw, Hinge (AYP part number)

$7.49

$

In Stock, only 2 left!

0

69

Poulan 532125368

Plate, Mulcher (AYP part number)
(Superseded to 532166649)

$

$

Not available

70

Poulan 532132612

Shield, Debris (AYP part number)

$

$

Not available

Poulan 532134809

Operator's Manual (English)

Note: Not Shown.

$

$

Not available

Poulan 532134810

Operator's Manual (French)

Note: Not Shown.

$

$

Not available

Poulan 532134811

Repair Parts Manual

Note: Not Shown.

$

$

Not available
