PP 850 PX - Poulan Pro Walk-Behind Mower GEARCASE ASSEMBLY Parts Diagram

Walk-Behind Mower

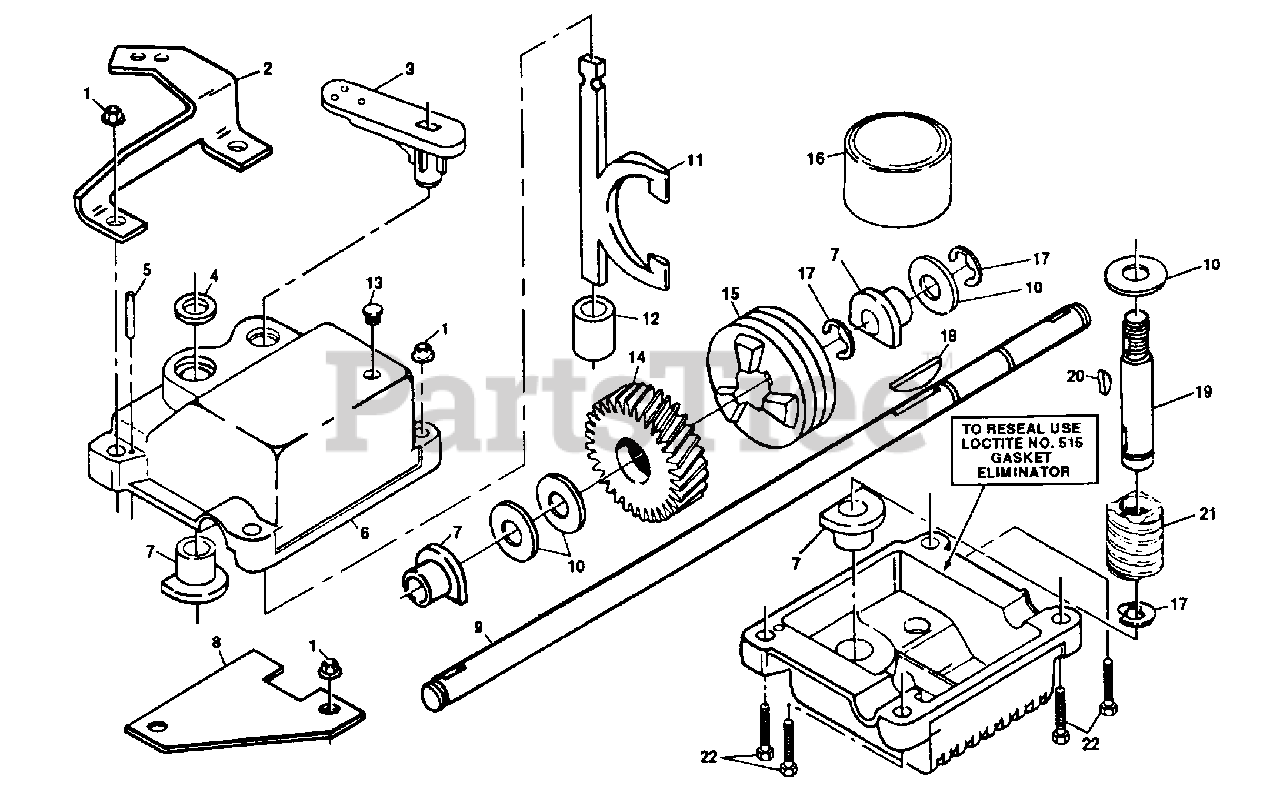

GEARCASE ASSEMBLY Parts Diagram

  • Title

1

Poulan 73510400

Locknut, Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

2

Poulan 85177X004

Bracket, Adjusting
(Superseded to 532085177)

$9.99

$

Usually ships in 3-10 days

0

3

Poulan 131483

Shifter

$

$

Not available

4

Poulan 57072

Seal
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 57388

Pin, Grooved 1/8 x 1/2
(Superseded to 532057388)

$

$

Not available

6

Poulan 48281

Gear Case Halves, Upper and Lower

Note: (Includes Key #4, 5 and 7)

$

$

Not available

7

Poulan 77881

Bearing
(Superseded to 532077881)

$30.99

$

Usually ships in 3-10 days

0

8

Poulan 81585X004

Bracket, Spring

$2.99

$

Usually ships in 3-10 days

0

9

Poulan 750430

Drive Shaft
(Superseded to 532750430)

$

$

Not available

10

Poulan 57079

Washer, Hardened
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

11

Poulan 131484

Yoke, Clutch
(Superseded to 532131484)

$

$

Not available

12

Poulan 131485

Bushing

$

$

Not available

13

Poulan 86447

Plug
(Superseded to 532086447)

$

$

Not available

14

Poulan 133804

Gear, Helical

$

$

Not available

15

Poulan 750436

Jaw, Clutch

$

$

Not available

16

Poulan 750355

Grease

$

$

Not available

17

Poulan 532053753

E-Ring
(Superseded to 812000003)

$

$

Not available

18

Poulan 850848

Key, Hi-Pro
(Superseded to 532850848)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 131481

Shaft, Worm
(Superseded to 532131481)

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 65692

Key, Woodruff, #3
(Superseded to 532065692)

$

$

Not available

21

Poulan 530083680

Worm

$

$

Not available

22

Poulan STD522512

Screw, Hex Head 1/4-20 x 1-1/4

$

$

Not available
