PP 850 PE - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 124707 Parts Diagram

Walk-Behind Mower

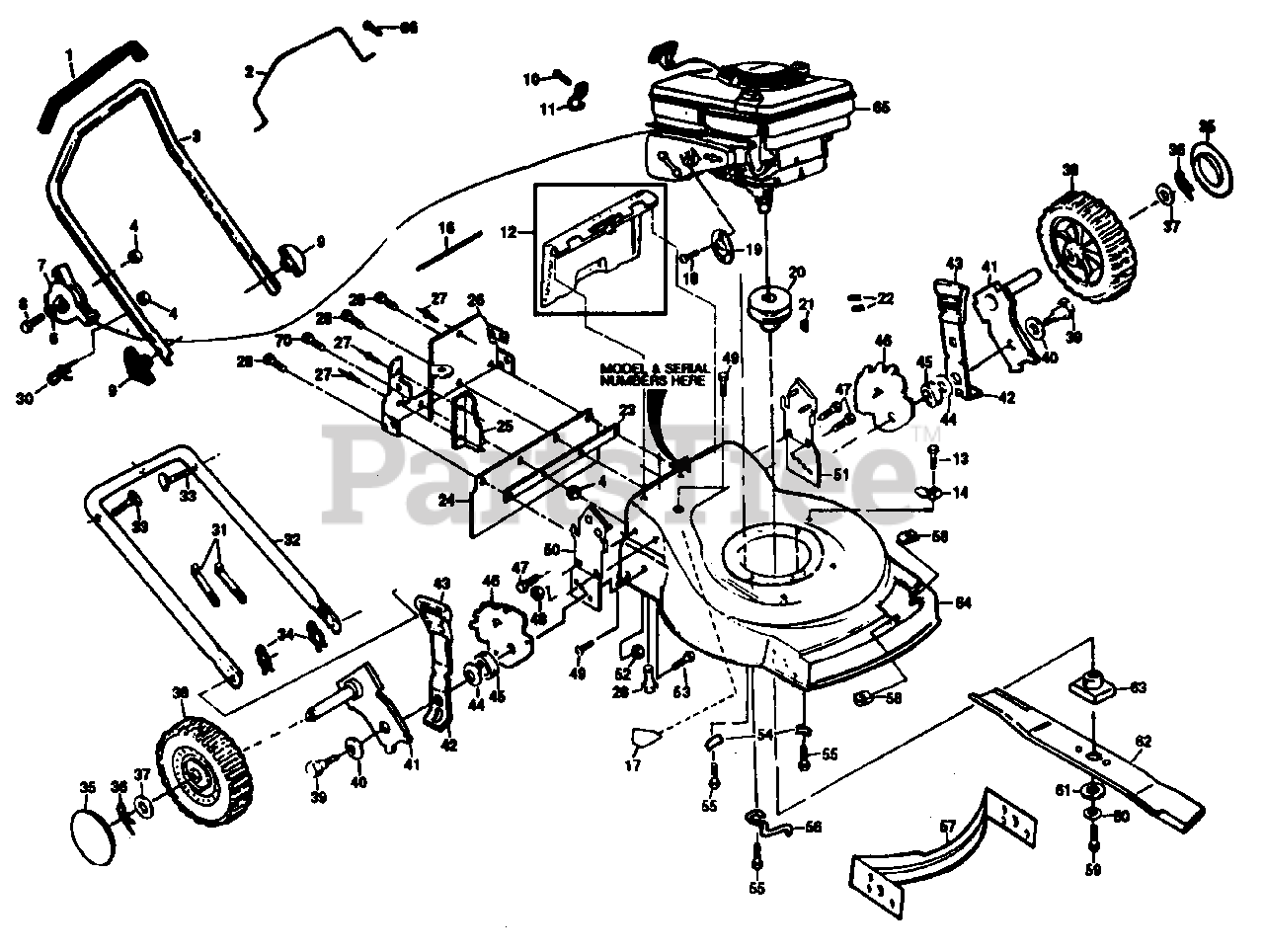

MOWER HOUSING, ENGINE B/S 124707 Parts Diagram

  • Title

1

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

2

Poulan 532801775

Control Bar (AYP part number)

$

$

Not available

3

Poulan 532125266

Upper Handle (AYP part number)

$

$

Not available

4

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

8

Poulan 532851185

Machine Screw 1/4-20 x 2-3/4
(Superseded to 532128889)

$

$

Not available

9

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

10

Poulan 532083816

Screw #10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532213146

Cable Clamp (Engine) (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 532129898

Rear Door Kit (AYP part number)

$

$

Not available

13

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Poulan 532087930

Housing Cable Guide (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

16

Poulan 532851738

Hinge Rod (AYP part number)

$

$

Not available

17

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

18

Poulan 532093705

Screw #8-32 x 3/8 (AYP part number)
(Superseded to 532069485)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

19

Poulan 532223290

Muffler Deflector

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

20

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

21

Poulan 532087677

Hi Pro Key #505 (AYP part number)

$

$

Not available

22

Poulan 532059708

Set Screw 1/4-20 x 5/16 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532125224

Backing Strip (AYP part number)
(Superseded to 532088367)

$

$

Not available

24

Poulan 532130444

Rear Skirt (AYP part number)

$

$

Not available

25

Poulan 532125222

Side Baffle (AYP part number)

$

$

Not available

26

Poulan 532125267

Back Plate (AYP part number)

$

$

Not available

27

Poulan 532128415

Pop Rivet (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 532054583

Hex Head Tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

30

Poulan 532800357

Rope Guide (AYP part number)
(Superseded to 532132001)

$18.99

$

In Stock, Qty 5

0

31

Poulan 532066426

Tie Wire (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

32

Poulan 532125268

Lower Handle (AYP part number)

$

$

Not available

33

Poulan 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

34

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 532800544

Hubcap (AYP part number)

$

$

Not available

36

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

37

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

38

Poulan 532851071

Wheel & Tire Assembly 9.00 x 2.00 (AYP part number)

$45.99

$

In Stock, only 1 left!

0

39

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

40

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

41

Poulan 532125172

Axle Arm (AYP part number)
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

42

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

43

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

44

Poulan 532088348

Washer (AYP part number)

$7.49

$

In Stock, Qty 6

0

45

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

46

Poulan 532850904

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 532055187

Self-tapping Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

48

Poulan 532063124

Locknut 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

49

Poulan 532054583

Hex Tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

50

Poulan 532125269

Handle Bracket (Right) (AYP part number)

$

$

Not available

51

Poulan 532125270

Handle Bracket (Left) (AYP part number)

$

$

Not available

52

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 532066238

Carriage Bolt 5/16-18 x 5/8 (AYP part number)
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

54

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

55

Poulan 532850998

Hex Head Thread Roling Screw 3/8-16 x 1 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

56

Poulan 532851000

Belt Snubber (AYP part number)

$

$

Not available

57

Poulan 532125238

Front Baffle (AYP part number)
(Superseded to 532132255)

$34.99

$

Usually ships in 3-10 days

0

58

Poulan 532075449

Speed Nut (U Type) (AYP part number)

$

$

Not available

59

Poulan 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Poulan 532850263

Helical Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

61

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

62

Poulan 532850973

Blade 22"
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

63

Poulan 532851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

64

Poulan 532130831

Lawn Mower Housing Kit (Inc. 17)

$

$

Not available

66

Poulan 532026953

Screw #10-24 x .625 (AYP part number)

$

$

Not available

70

Poulan 532086779

Screw, Hex, Head Machine 1/4-20 (AYP part number)

$

$

Not available

Poulan 532129925

Rear Door Seal (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532801778

Operator's Manual (English)

Note: Not Shown.

$

$

Not available

Poulan 532851101

Decal Elec. Start (Engine) (AYP part number)

Note: Not Shown.

$

$

Not available
