PP 845 PA - Poulan Pro Walk-Behind Mower MOWER HOUSING & B/S ENGINE 124782 Parts Diagram

Walk-Behind Mower

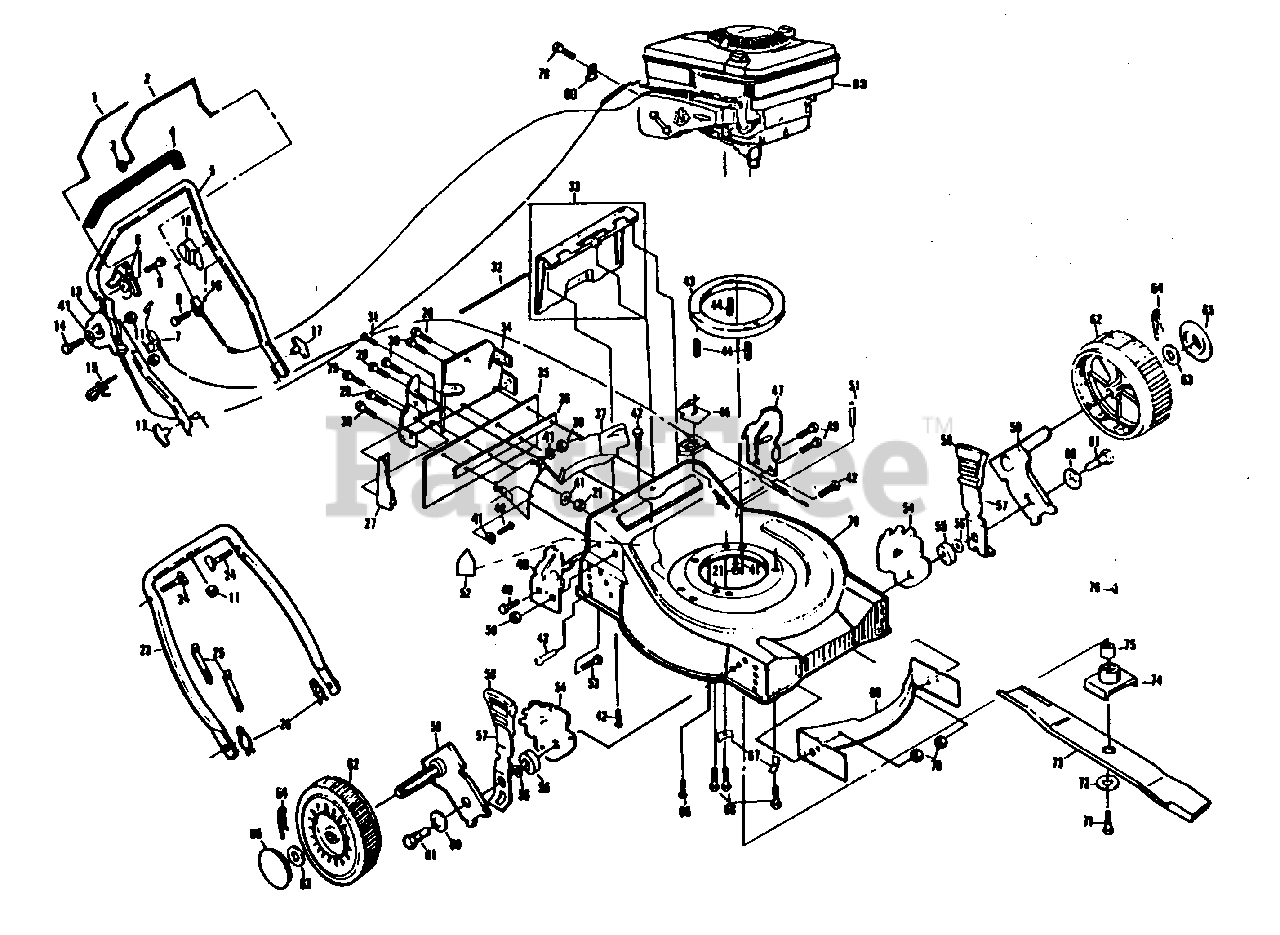

MOWER HOUSING & B/S ENGINE 124782 Parts Diagram

  • Title

1

Poulan 532800637

Drive Bar

$

$

Not available

2

Poulan 532801790

Engine Control Bar

$

$

Not available

3

Poulan 532050806

Flat Washer (AYP part number)
(Superseded to 19101216)

$

$

Not available

4

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

5

Poulan 532125271

Upper Handle (AYP part number)

$

$

Not available

6

Poulan 532850042

Drive Control Actuator (AYP part number)

$

$

Not available

7

Poulan 532851915

Drive Cable Assembly (AYP part number)

$

$

Not available

8

Poulan 532085768

Thread Rolling Screw #10-24 x 3/4 (AYP part number)

$

$

Not available

9

Poulan 532036953

Self-tapping Screw #10-24 x 5/8 (AYP part number)

$

$

Not available

10

Poulan 532850041

Zone Control Actuator (AYP part number)

$

$

Not available

11

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532851707

Throttle Control
(Superseded to 532700654)

$17.99

$

Usually ships in 3-10 days

0

14

Poulan 532085692

Machine Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 532800357

Rope Guide (AYP part number)
(Superseded to 532132001)

$18.99

$

In Stock, Qty 5

0

16

Poulan 532851706

Engine Zone Control Cable

$

$

Not available

17

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

21

Poulan 532053490

Locknut 1/4-20 (AYP part number)
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

23

Poulan 532125268

Lower Handle (AYP part number)

$

$

Not available

24

Poulan 532058714

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

25

Poulan 532066426

Wire Ties (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

26

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

27

Poulan 532125222

Side Baffle (AYP part number)

$

$

Not available

28

Poulan 532128415

Pop Rivet (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 532086779

Hex Head Screw 1/4-20 x 3/4 (AYP part number)

$

$

Not available

30

Poulan 532054583

Hex Tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

31

Poulan 532076399

Hex Washer Head Machine Screw #10-24 x 9/16 (AYP part number)

$

$

Not available

32

Poulan 532851738

Hinge Rod (AYP part number)

$

$

Not available

33

Poulan 532129898

Rear Door Kit (AYP part number)

$

$

Not available

34

Poulan 532125274

Back Plate (AYP part number)

$

$

Not available

35

Poulan 532130444

Rear Skirt (AYP part number)

$

$

Not available

36

Poulan 532125224

Backing Strip (AYP part number)
(Superseded to 532088367)

$

$

Not available

37

Poulan 532850061

Rear Baffle

$

$

Not available

38

Poulan 532074189

Locknut (AYP part number)

$

$

Not available

40

Poulan 532081276

Hex Washer Head Tapping Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

41

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

42

Poulan 532054583

Hex Tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

43

Poulan 532050988

Engine Spacer (AYP part number)

$

$

Not available

44

Poulan 532850987

Engine Bushing (AYP part number)
(Superseded to 850988)

$

$

Not available

46

Poulan 532750346

Bracket Cover (AYP part number)

$

$

Not available

47

Poulan 532125270

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

48

Poulan 532125269

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

49

Poulan 532055187

Thread Cutting Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 6

0

50

Poulan 532063124

Locknut 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

51

Poulan 532053830

Carriage Bolt 1/4-20 x 1/2 (AYP part number)
(Superseded to 872240404)

$

$

Not available

52

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

53

Poulan 532066238

Carriage Bolt 5/16-18 x 5/8 (AYP part number)
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

54

Poulan 532850904

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

56

Poulan 532088348

Washer (AYP part number)

$7.49

$

In Stock, Qty 6

0

57

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

58

Poulan 532087877

Selector Knob (AYP part number)

$6.49

$

In Stock, only 1 left!

0

59

Poulan 532125172

Axle Arm Assembly (AYP part number)
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

60

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

61

Poulan 532084921

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

62

Poulan 532850957

Wheel & Tire Assembly 8.0 x 1.75 (AYP part number)
(Superseded to 532146248)

$

$

Not available

63

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

64

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

65

Poulan 532800544

Hubcap (AYP part number)

$

$

Not available

66

Poulan 532078090

Self Tap Screw #10-24 x .75 (AYP part number)
(Superseded to 532085768)

$

$

Not available

67

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

68

Poulan 532850999

Hex Head Thread Rolling Screw 3/8-16 x 2 (AYP part number)

$7.49

$

In Stock, only 2 left!

0

69

Poulan 532125238

Front Baffle (AYP part number)
(Superseded to 532132255)

$34.99

$

Usually ships in 3-10 days

0

70

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 532850859

Hex Head Machine Screw Gr. 8 (AYP part number)

$

$

Not available

72

Poulan 532850263

Helical Washer 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

73

Poulan 532103524

22" Blade (AYP part number)

$

$

Not available

74

Poulan 532125030

Blade Adapter (AYP part number)

$

$

Not available

75

Poulan 532103113

Spacer (AYP part number)

$

$

Not available

76

Poulan 532087677

Hi-Pro Key #HP-505 (AYP part number)

$

$

Not available

78

Poulan 532130862

Lawn Mower Housing (Inc. 52)

$

$

Not available

79

Poulan 532107488

Thread Rolling Screw #10-32 x 5/8 (AYP part number)

$

$

Not available

80

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

Poulan 532801792

Owner's Manual (AYP part number)

Note: Not Shown.

$

$

Not available
