PP 835 SJA - Poulan Pro Walk-Behind Mower MOWER ASSEMBLY, ENGINE B/S 98902 Parts Diagram

Walk-Behind Mower

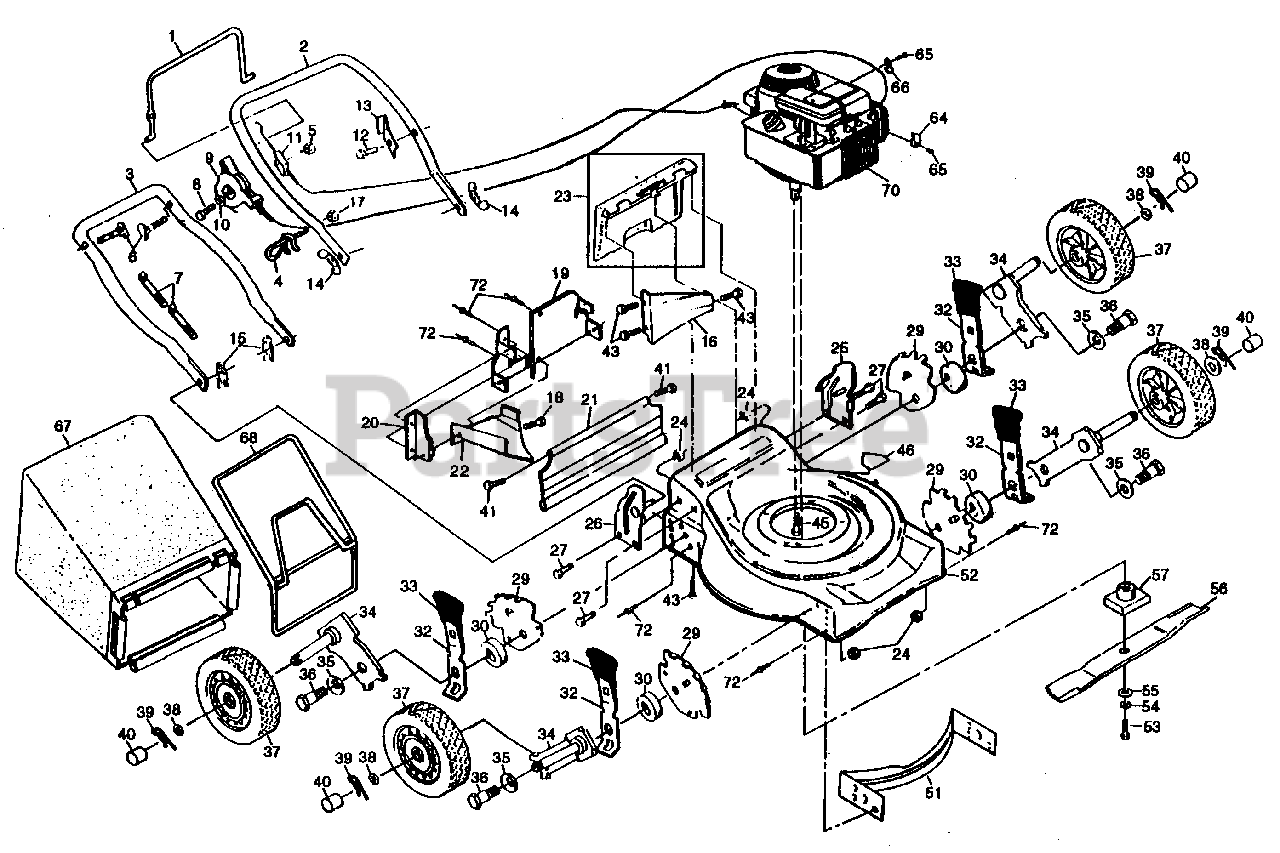

MOWER ASSEMBLY, ENGINE B/S 98902 Parts Diagram

  • Title

1

Poulan 532086902

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532125306

Upper Handle (AYP part number)
(Superseded to 532125338)

$

$

Not available

3

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

4

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532131959

Handle Bolt (AYP part number)
(Superseded to 532183724)

$

$

Not available

7

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 532085692

Machine Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532851462

Throttle Control
(Superseded to 532851463)

$

$

Not available

10

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532130861

Engine Zone Control Cable

$

$

Not available

12

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Poulan 532125162

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Poulan 532128638

Wing Nut (AYP part number)

$7.49

$

In Stock, Qty 8

0

15

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 532125035

Rear Baffle (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

17

Poulan 873510400

Keps Locknut 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

18

Poulan 532086344

Self Tapping Screw #10-24 x 1/2 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 532138865

Back Plate (AYP part number)
(Superseded to 532700356)

$

$

Not available

20

Poulan 532138866

Side Baffle (AYP part number)
(Superseded to 532700363)

$

$

Not available

21

Poulan 532133259

Rear Skirt (AYP part number)
(Superseded to 532140657)

$

$

Not available

22

Poulan 532125378

Discharge Baffle (AYP part number)
(Superseded to 133188X479)

$

$

Not available

23

Poulan 532048257

Rear Door Assembly Kit (AYP part number)

$

$

Not available

24

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 532142008

Handle Bracket Assembly (Left) (AYP part number)
(Superseded to 532700913)

$

$

Not available

26

Poulan 532142007

Handle Bracket Assembly (Right) (AYP part number)
(Superseded to 532700915)

$

$

Not available

27

Poulan 532055187

Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 6

0

29

Poulan 532139901

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

32

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

33

Poulan 532087877

Selector Knob (AYP part number)

$6.49

$

In Stock, only 1 left!

0

34

Poulan 532125172

Axle Arm Assembly (AYP part number)
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

35

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

36

Poulan 532142748

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

37

Poulan 532800220

Wheel Assembly (AYP part number)
(Superseded to 583605401)

$

$

Not available

38

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

39

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532800090

Hubcap (AYP part number)

$

$

Not available

41

Poulan 532088652

Hinge Screw (AYP part number)

$7.49

$

In Stock, only 2 left!

0

43

Poulan 532054583

Hex Tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

45

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

46

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

51

Poulan 532125311

Front Baffle (AYP part number)

$

$

Not available

52

Poulan 532702186

Housing Assembly (Incl. Ref. #46)

$111.99

$

Usually ships in 3-10 days

0

53

Poulan 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grd. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Poulan 532850263

Helical Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

56

Poulan 532850972

20" Blade
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

57

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

64

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

65

Poulan 532083816

Screw #10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 532087930

Guide Clip (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

67

Poulan 532801753

Grass Bag (AYP part number)

$

$

Not available

68

Poulan 532088614

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

72

Poulan 532128415

Pop Rivet (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

Poulan 532140753

Operator's Manual (English) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532143559

Replacement Part's Manual

Note: Not Shown.

$2.49

$

Usually ships in 3-10 days

0

Poulan MK20FRD

Mulcher

$53.99

$

Usually ships in 3-10 days

0

Poulan MA36

Chute Deflector (AYP part number)

$47.99

$

Usually ships in 3-10 days

0
