PP 820 SA - Poulan Pro Walk-Behind Mower MOWER HOUSING & B/S ENGINE 122782 Parts Diagram

Walk-Behind Mower

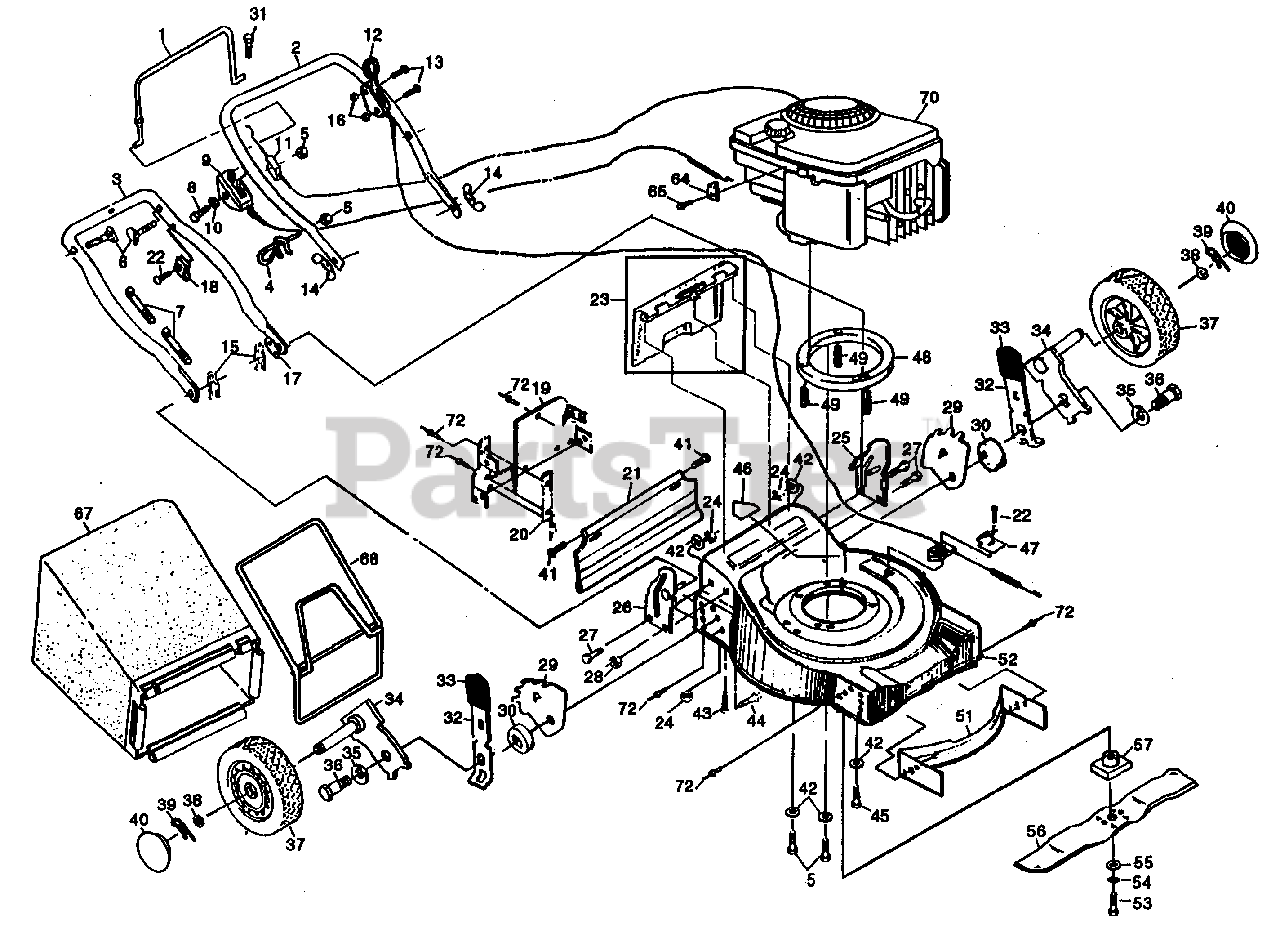

MOWER HOUSING & B/S ENGINE 122782 Parts Diagram

  • Title

1

Poulan 532851509

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532125306

Upper Handle (AYP part number)
(Superseded to 532125338)

$

$

Not available

3

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

4

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Poulan 873510400

Locknut 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

6

Poulan 532131959

Handle Bolt (AYP part number)
(Superseded to 532183724)

$

$

Not available

7

Poulan 532066426

Cable Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 532085692

Machine Screw 1/4-20 x 2 1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532132536

Throttle Control (AYP part number)
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

10

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532851671

Engine Zone Control Cable (AYP part number)

$

$

Not available

12

Poulan 532801722

Drive Control

$

$

Not available

13

Poulan 532750029

Pan Head Manchine Screw #10-24 x 2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 532128638

Wing Nut (AYP part number)

$7.49

$

In Stock, Qty 8

0

15

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 532074189

Locknut, #10-24 (AYP part number)

$

$

Not available

17

Poulan 532077553

Cable Guide (AYP part number)

$

$

Not available

18

Poulan 532088092

Cable Guide (AYP part number)

$

$

Not available

19

Poulan 532125313

Back Plate (AYP part number)

$

$

Not available

20

Poulan 532125312

Side Baffle (AYP part number)

$

$

Not available

21

Poulan 532136233

Rear Skirt (AYP part number)
(Superseded to 532140541)

$

$

Not available

22

Poulan 532085768

Self-Tapping Screw #10-24 x 3/4 (AYP part number)

$

$

Not available

23

Poulan 532048138

Rear Door Assembly Kit (AYP part number)
(Superseded to 147613)

$

$

Not available

24

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 532125305

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

26

Poulan 532125193

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

27

Poulan 532055187

Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 14

0

28

Poulan 532063124

Locknut 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

29

Poulan 532850955

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532139901)

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

31

Poulan 532851552

Self-Tapping Screw #10-24 x 5/8 (AYP part number)

$

$

Not available

32

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

33

Poulan 532087877

Selector Knob (AYP part number)

$6.49

$

In Stock, only 1 left!

0

34

Poulan 532125172

Axle Arm Assembly (AYP part number)
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

35

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

36

Poulan 532084921

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

37

Poulan 532850957

Wheel & Tire Assembly 8.0 x 1-3/4 (AYP part number)
(Superseded to 532146248)

$

$

Not available

38

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

39

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

41

Poulan 532088652

Hinge Screw (AYP part number)

$7.49

$

In Stock, only 2 left!

0

42

Poulan 532053998

Flat Washer (AYP part number)

$

$

Not available

43

Poulan 532054583

Hex Tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

44

Poulan 872070505

Hex Head Bolt 5/16-18 x 5/8 (AYP part number)
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 532850999

Hex Head Thread Rolling Screw 3/8-16x1 (AYP part number)

$7.49

$

In Stock, only 2 left!

0

46

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

47

Poulan 532088615

Bracket Cover (AYP part number)
(Superseded to 532750346)

$

$

Not available

48

Poulan 532850988

Engine Spacer (AYP part number)
(Superseded to 850988)

$

$

Not available

49

Poulan 532850987

Engine Bushing (AYP part number)
(Superseded to 850988)

$

$

Not available

50

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 532135311

Front Baffle (AYP part number)

$

$

Not available

52

Poulan 532133786

Housing Assembly

Note: (Incl. Ref. #46)

$

$

Not available

53

Poulan 532851084

Hex Head Bolt 3/8-24 x 1-3/8 Grd. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Poulan 532850263

Helical Lock Washer (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, Qty 7

0

56

Poulan 532850972

20" Blade
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

57

Poulan 532851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

64

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

65

Poulan 532083816

Screw #10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

67

Poulan 532128013

Grass Bag (AYP part number)

$

$

Not available

68

Poulan 532750532

Catcher Frame (AYP part number)

$

$

Not available

72

Poulan 532128415

Pop Rivet (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

Poulan 532136744

Operator's Manual (English)

Note: Not Shown.

$

$

Not available

Poulan 532136745

Operator's Manual (French) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532136723

Replacement Parts Manual (English/French) (AYP part number)

Note: Not Shown.

$

$

Not available
