PP 820 SA - Poulan Pro Walk-Behind Mower DRIVE SHAFT Parts Diagram

Walk-Behind Mower

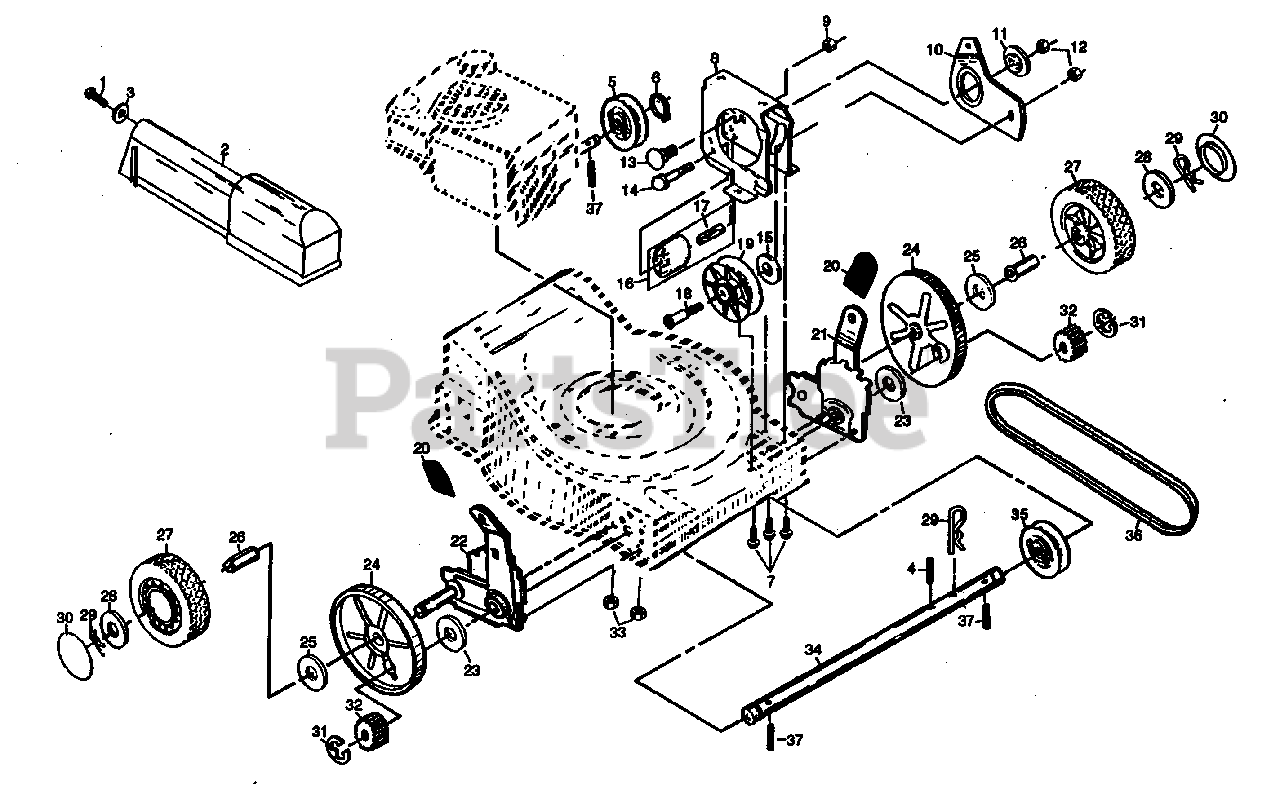

DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

2

Poulan 532111925

Drive Cover (AYP part number)

$

$

Not available

3

Poulan 532004802

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 532851980

Drive Pawl (AYP part number)
(Superseded to 532164795)

$

$

Not available

5

Poulan 532088043

Drive Pulley (AYP part number)

$

$

Not available

6

Poulan 812000030

Retaining Ring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 532054583

Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

8

Poulan 532125246

Clutch Frame (AYP part number)

$

$

Not available

9

Poulan 532050962

Locknut 1/4-20 (AYP part number)

$

$

Not available

10

Poulan 532125218

Clutch Lever (AYP part number)

$

$

Not available

11

Poulan 532088067

Clutch Lever Spacer (AYP part number)

$

$

Not available

12

Poulan 532750253

Locknut 5/16-18 (AYP part number)
(Superseded to 873680500)

$3.99

$

In Stock, Qty 20+

0

13

Poulan 872070504

Carriage Bolt 5/16-18 x 1/2 (AYP part number)
(Superseded to 583611001)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 874760424

Hex Head Bolt 1/4-20 x 1-1/2 (AYP part number)

$

$

Not available

15

Poulan 532088069

Spacer (AYP part number)

$

$

Not available

16

Poulan 532048160

Idler Assembly (AYP part number)

Note: (Includes Key No. 17)

$

$

Not available

17

Poulan 532088576

Idler Spacer (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

18

Poulan 532088517

Shoulder Bolt 5/16-18 x 1-3/8 (AYP part number)

$

$

Not available

19

Poulan 532088516

Idler Pulley (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532087877

Selector Knob (AYP part number)

$6.49

$

In Stock, only 1 left!

0

21

Poulan 532751809

Selector Assembly (Left) (AYP part number)
(Superseded to 583530901)

$36.99

$

Usually ships in 3-10 days

0

22

Poulan 532751810

Selector Assembly (Right) (AYP part number)

$

$

Not available

23

Poulan 532088118

Felt Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 532088080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

25

Poulan 532067725

Washer (AYP part number)

$7.49

$

In Stock, Qty 20+

0

26

Poulan 532088446

Wheel Bushing (AYP part number)

$

$

Not available

27

Poulan 532850690

Wheel & Tire Assembly 8.00 x 1-3/4 (AYP part number)

$

$

Not available

28

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

29

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

31

Poulan 812000003

E-Ring

$

$

Not available

32

Poulan 532750003

Pinion (AYP part number)
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

33

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 532088081

Drive Shaft (AYP part number)

$

$

Not available

35

Poulan 532088082

Driven Pulley (AYP part number)

$

$

Not available

36

Poulan 532111924

Drive Belt (AYP part number)

$

$

Not available

37

Poulan 532851980

Drive Pawl (AYP part number)
(Superseded to 532164795)

$

$

Not available

Poulan 532852000

"Clean Under" Decal (Drive Cover) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532850428

Decal (Drive Cover) (AYP part number)

Note: Not Shown.

$

$

Not available
