PP 8000 M - Poulan Pro Walk-Behind Mower MOWER ASSEMBLY, ENGINE B/S 124702 Parts Diagram

Walk-Behind Mower

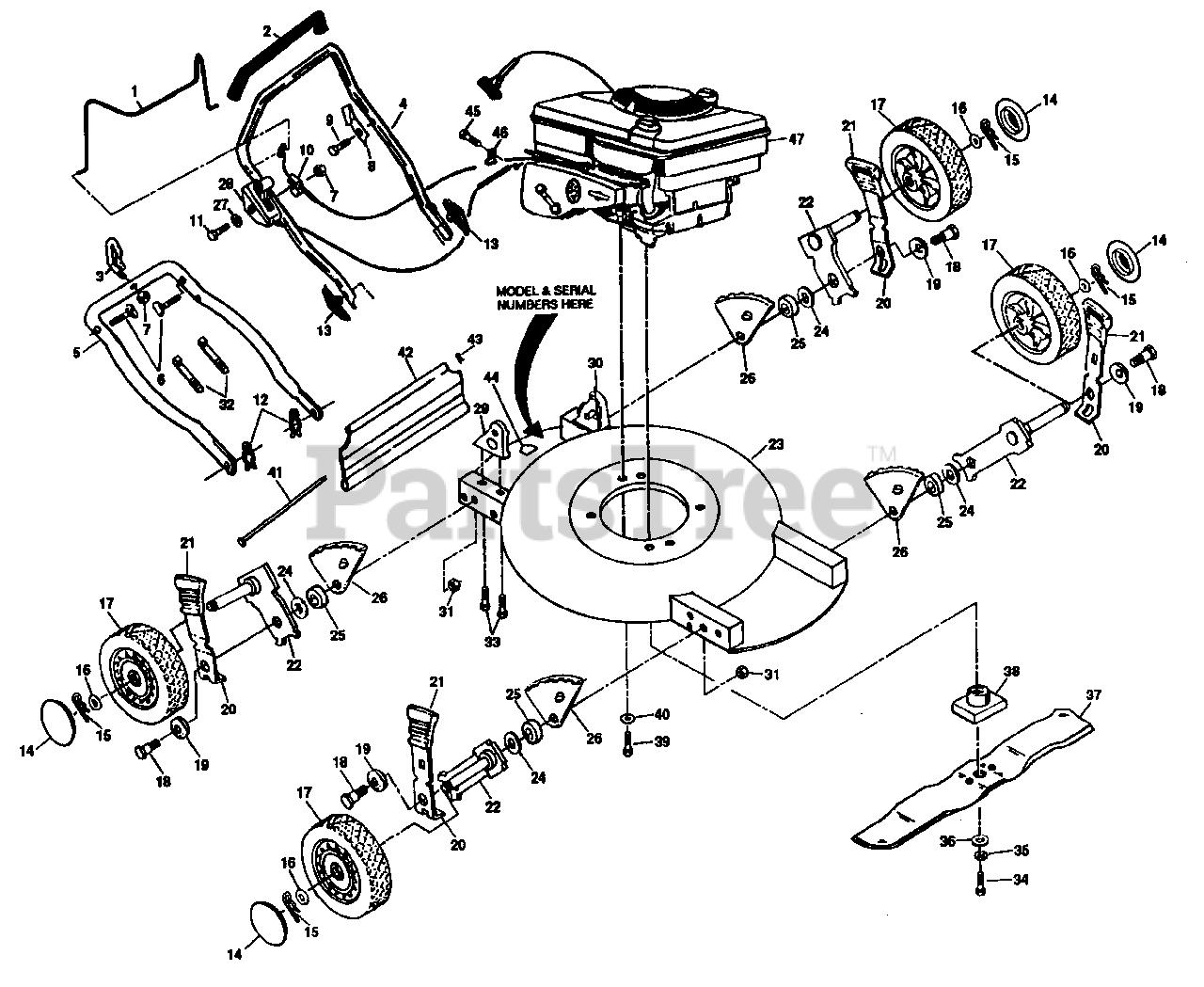

MOWER ASSEMBLY, ENGINE B/S 124702 Parts Diagram

  • Title

1

Poulan 532800655

Control Bar
(Superseded to 532850735)

$

$

Not available

2

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

3

Poulan 532103672

Rope Guide (AYP part number)
(Superseded to 583642701)

$7.49

$

Usually ships in 3-10 days

0

4

Poulan 532125161

Upper Handle (AYP part number)

$

$

Not available

5

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

6

Poulan 532058714

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

7

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 532125162

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

9

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

10

Poulan 532851809

Engine Zone Control Cable (AYP part number)
(Superseded to 851809)

$

$

Not available

11

Poulan 532085692

Pan Head Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

14

Poulan 532800543

Hubcap

$

$

Not available

15

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 532111433

Wheel & Tire Assembly 8.0 x 1.75 (AYP part number)

$

$

Not available

18

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

19

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

21

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

22

Poulan 532125172

Axle Arm Assembly (AYP part number)
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

23

Poulan 532128568

Lawn Mower Housing

Note: (Includes Key No. 44)

$

$

Not available

24

Poulan 532088348

Washer (AYP part number)

$7.49

$

In Stock, Qty 6

0

25

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

26

Poulan 532850904

Wheel Adjusting Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

28

Poulan 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

29

Poulan 532125164

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

30

Poulan 532125163

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

31

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

33

Poulan 532055187

Thread Cutting Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

34

Poulan 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Poulan 532850263

Helical Lockwasher 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

36

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

37

Poulan 532129277

20" Blade
(Superseded to 532700972)

$20.99

$

Usually ships in 3-10 days

0

38

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

39

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532053998

Washer (AYP part number)

$

$

Not available

41

Poulan 532751649

Skirt Rod (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 532751648

Rear Skirt (AYP part number)
(Superseded to 532140544)

$

$

Not available

43

Poulan 532700279

Retainer Clip (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

44

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

45

Poulan 532083816

Thread Rolling Screw #10-32 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

46

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

47

Poulan 532128152

Engine - B&S, Model No. 124702 Type No. 3175-01, Operator's Manual (English)

Note: Not Shown.

$

$

Not available

47

Poulan 532800569

Engine - B&S, Model No. 124702 Type No. 3175-01, Decal (Engine)

Note: Not Shown.

$

$

Not available

47

Poulan 532127943

Engine - B&S, Model No. 124702 Type No. 3175-01, Decal (Housing) (AYP part number)

Note: Not Shown.

$

$

Not available
