PP-800 - Echo Pole Saw (Type 1E) Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

Pole Saw (Type 1E)

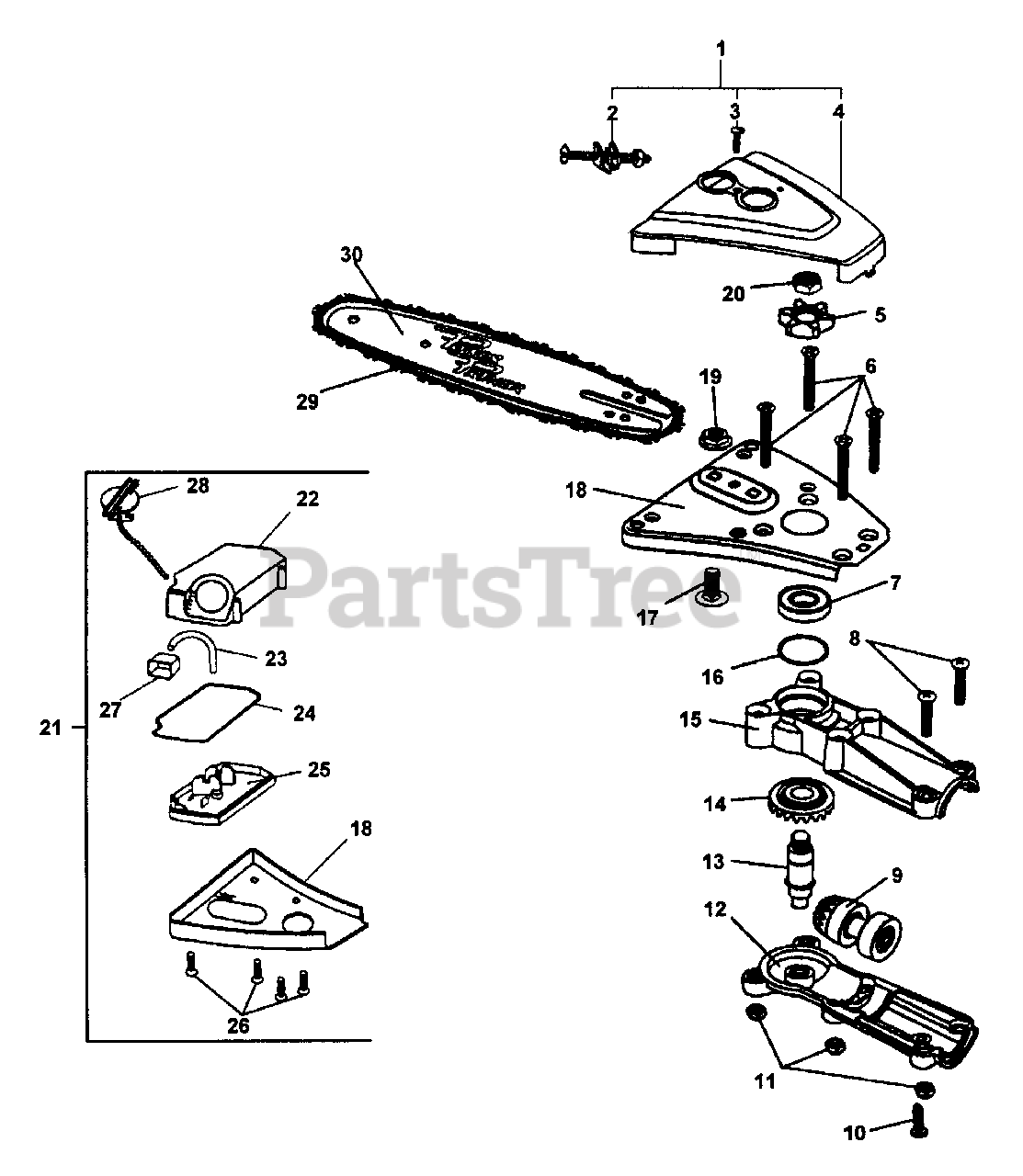

Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

  • Title

Echo 61050922160

SEMI-AUTO OILER CUTTING HEAD ASSY
(Superseded to Discontinued)

Note: INCL. 1 - 30

$

$

Not available

Echo 61040122060

SEMI-AUTO OILER CUTTING HEAD ASSY W/O BAR & CHAIN
(Superseded to Discontinued)

Note: INCL. 1 - 28

$

$

Not available

1

Echo 43300122060

SPROCKET COVER ASSY
(Superseded to Discontinued)

Note: INCL. 2 - 4

$

$

Not available

2

Echo 43309522060

TENSIONER KIT
(Superseded to Discontinued)

$

$

Not available

3

Echo 90005300100

SCREW - 8-32 X 1"

$0.99

$

In Stock, only 2 left!

0

4

Echo 43301022060

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

5

Echo 30281022060

SPROCKET

$3.49

$

Usually ships in 2-4 days

0

6

Echo 90005700100

SCREW

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 4 left!

0

8

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

9

Echo 61030922060

SHAFT GEAR ASSY

$46.99

$

In Stock, only 3 left!

0

10

Echo 90005400100

SCREW
(Superseded to 9511113050)

$0.99

$

In Stock, only 3 left!

0

11

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

12

Echo 61099024160

CASE, GEAR - RIGHT

Note: INCLS ITEM 6, 11, & 16; TO BE ANNOUNCED

$11.99

$

Usually ships in 2-4 days

0

13

Echo 61030922160

SHAFT GEAR ASSY

$14.99

$

Usually ships in 2-4 days

0

14

Echo 61031122060

GEAR - BEVEL
(Superseded to P021011610)

$

$

Not available

15

Echo 61046022760

CASE, GEAR - RIGHT

$4.99

$

In Stock, only 1 left!

0

16

Echo 90003500400

SHIM .004"

$1.99

$

In Stock, only 2 left!

0

17

Echo 90006000100

BOLT
(Superseded to Discontinued)

$

$

Not available

18

Echo 43300422160

SAW BAR CARRIER

$19.99

$

Usually ships in 2-4 days

0

19

Echo 90004000100

NUT - FLANGE

$0.99

$

In Stock, only 2 left!

0

20

Echo 90003000200

NUT

$0.99

$

In Stock, only 3 left!

0

21

Echo 43710022060

SEMI-AUTO OILER ASSY
(Superseded to Discontinued)

Note: INCL. 22 - 28

$

$

Not available

22

Echo 43601122060

TANK, OIL (CAP SIDE)

$3.99

$

Usually ships in 2-4 days

0

23

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

24

Echo 27021722060

O-RING

$1.49

$

In Stock, only 1 left!

0

25

Echo 43601022060

TANK, OIL (CHAIN SIDE)

$2.99

$

Usually ships in 2-4 days

0

26

Echo 90005800100

SCREW
(Superseded to Discontinued)

$

$

Not available

27

Echo 16821822060

CUP, OIL
(Superseded to Discontinued)

$

$

Not available

28

Echo 43600122060

CAP ASSY

$9.99

$

In Stock, Qty 8

0

29

Echo 43161022160

SAW CHAIN - 10" (25cm)
(Superseded to 1907039)

$14.99

$

In Stock, only 1 left!

0

30

Echo 43041022160

GUIDE BAR - 10" (25cm)
(Superseded to 1100373901)

$

$

Not available
