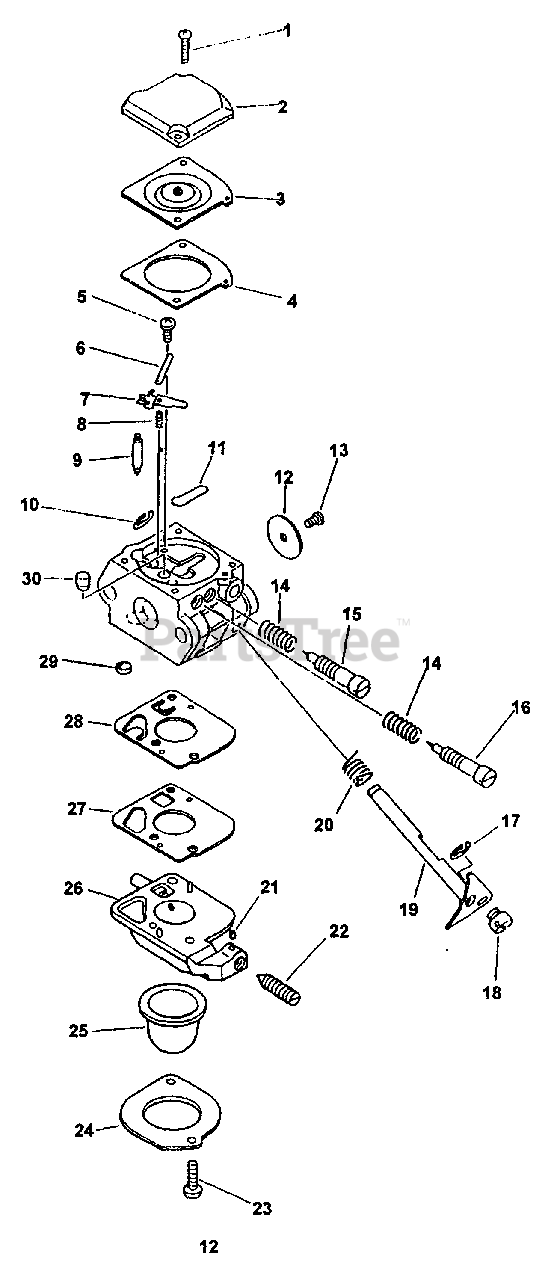

PP-800 - Echo Pole Saw (Type 1) Carburetor S/N: 001001 - 055504 Parts Diagram

Pole Saw (Type 1)

Carburetor S/N: 001001 - 055504 Parts Diagram

  • Title

Echo 12520050630

CARBURETOR C1U-K16
(Superseded to 12520050631)

Note: INCLUDES ITEMS 1 - 30

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REBUILD KIT P/N 12530042030 & GASKET/DIAPHRAGM KIT P/N 12530342030

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REBUILD KIT P/N 12530042030 & GASKET/DIAPHRAGM KIT P/N 12530342030

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN

Note: INCLUDED IN REBUILD KIT P/N 12530042030

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN REBUILD KIT P/N 12530042030

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12530042030

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: INCLUDED IN REBUILD KIT P/N 12530042030

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

11

------------------

PLUG, WELCH

Note: INCLUDED IN REBUILD KIT P/N 12530042030

$

$

Not available

12

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

15

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

16

Echo 12532047630

NEEDLE - HIGH SPEED

$3.99

$

In Stock, only 1 left!

0

17

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

18

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

19

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

20

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

21

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

23

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

24

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

25

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

26

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

27

------------------

GASKET, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12530042030 & GASKET/DIAPHRAGM KIT P/N 12530342030

$

$

Not available

28

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12530042030 & GASKET/DIAPHRAGM KIT P/N 12530342030

$

$

Not available

29

------------------

STRAINER

Note: INCLUDED IN REBUILD KIT P/N 12530042030

$

$

Not available

30

Echo 12537611610

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

Echo 12530042030

REPAIR KIT

$17.99

$

In Stock, Qty 20+

0

Echo 12530342030

DIAPHRAGM/GASKET KIT

$13.99

$

In Stock, only 1 left!

0
