PP 7H141KWV (80571) - Snapper Walk-Behind Mower, 14hp Pistol Grip Handle & Control Assemblies Parts Diagram

Walk-Behind Mower, 14hp

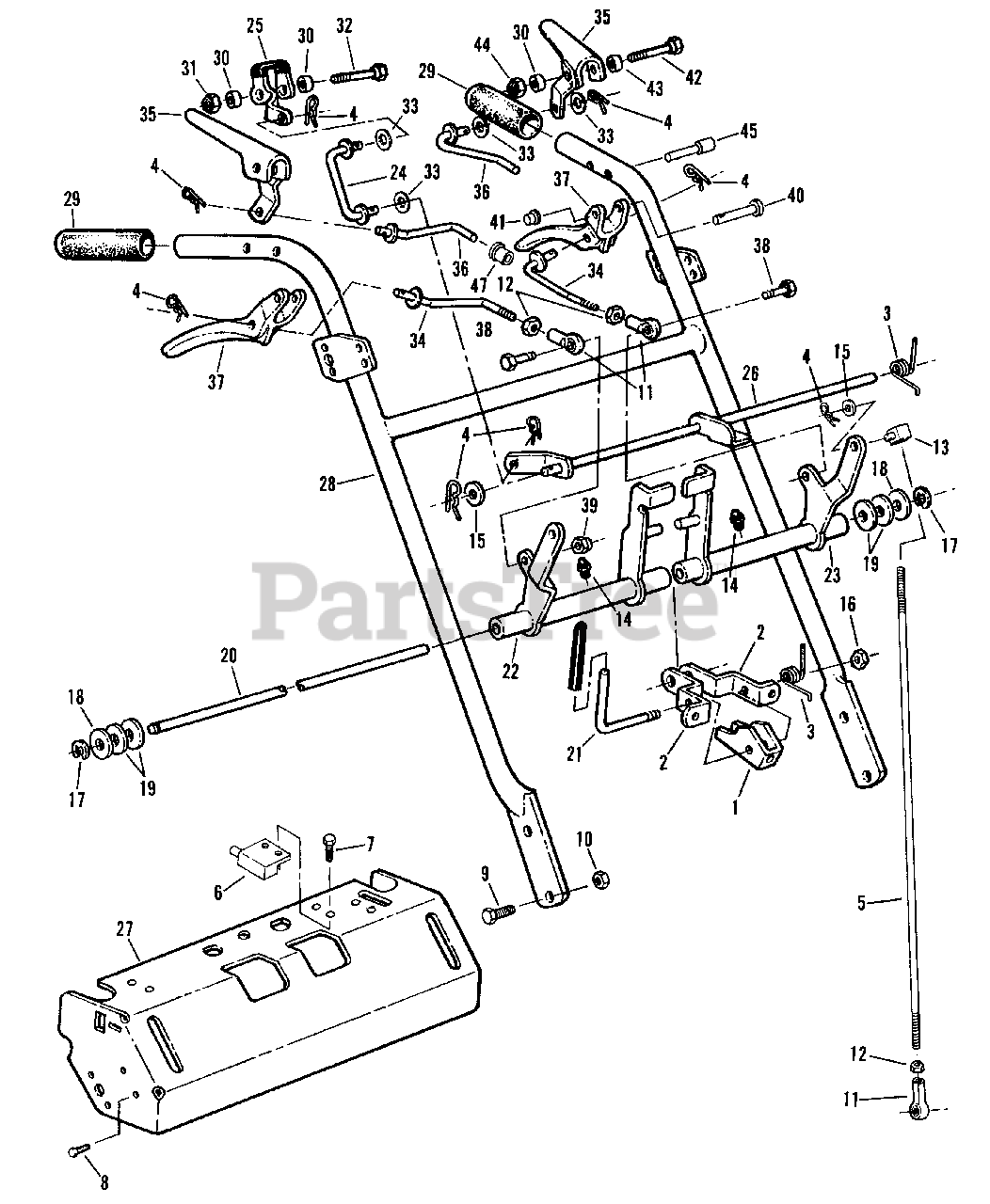

Pistol Grip Handle & Control Assemblies Parts Diagram

  • Title

1

Snapper 7026936

LATCH
(Superseded to 7026936YP)

$56.99

$

Usually ships in 2-12 days

0

2

Snapper 7033193

BRACKET, Neutral Mounting
(Superseded to 7033193YP)

$23.99

$

Usually ships in 2-12 days

0

3

Snapper 7027100

SPRING, Neutral Torsion
(Superseded to 7027100YP)

$11.99

$

In Stock, only 1 left!

0

4

Snapper 7091310

PIN, Hair
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

5

Snapper 7027144

ROD, Traction
(Superseded to 7027144YP)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7027225

SWITCH
(Superseded to 7027225YP)

$

$

Not available

7

Snapper 7077873

SCREW, #12-14 x 1/2" Self-Tapping
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 7

0

9

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

10

Snapper 7091299

NUT, 3/8-16 Hex (Nyloc)
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7027139

BALL JOINT LINKAGE, 5/16-24
(Superseded to 7027139YP)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7027141

SWIVEL
(Superseded to 7027141YP)

$18.99

$

Usually ships in 2-12 days

0

14

Snapper 7076998

FITTING, 1/4-28 Zerk
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

15

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

16

Snapper 7076978

NUT, 1/4-20 Hex (Nyloc)
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7014341

"E" RING 1/2
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

18

Snapper 7091030

BUSHING 1/2 Machinery
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 7090667

WASHER, 1/2 Flat
(Superseded to 7090667YP)

Note: Was 90150

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7022166

ROD, Pivot
(Superseded to 7022166YP)

$31.99

$

Usually ships in 2-12 days

0

21

Snapper 7026981

INDICATOR, Neutral

$

$

Currently unavailable

22

Snapper 7026955

WELDMENT, Speed Control (Left Hand)

$

$

Not available

23

Snapper 7026960

WELDMENT, Speed Control (Right Hand)

$

$

Currently unavailable

24

Snapper 7026976

ROD, Neutral Release
(Superseded to 7026976YP)

$24.99

$

Usually ships in 2-12 days

0

25

Snapper 7026971

RELEASE, Neutral

$

$

Not available

26

Snapper 7026963

WELDMENT, Neutral Paddle

$

$

Not available

27

Snapper 7026979

CONSOLE (Pistol Grip)

$

$

Currently unavailable

28

Snapper 7026953

WELDMENT, Handle

$

$

Currently unavailable

29

Snapper 7024127

GRIP
(Superseded to 7024127YP)

$7.49

$

Usually ships in 2-12 days

0

30

Snapper 24079

SPACER, .259 ID x .78" Long

$

$

Currently unavailable

31

Snapper 7091705

NUT, 1/4-20 Hex Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7091732

SCREW, 1/4-20 x 2-3/4"

Note: Was 90971

$

$

Not available

33

Snapper 7026982

WASHER, 5/16 x 1/2" O.D. (Stainless)

$

$

Not available

34

Snapper 7026974

ROD, Drive (Left Hand)

$

$

Not available

Snapper 7026975

ROD, Drive (Right Hand)
(Superseded to 7026975YP)

Note: (Not Shown)

$20.99

$

Usually ships in 2-12 days

0

35

Snapper 7026969

WELDMENT, OPC (Left Hand)
(Superseded to 7026969YP)

$99.99

$

Usually ships in 2-12 days

0

Snapper 7026967

WELDMENT, OPC (Right Hand)

Note: (Not Shown)

$

$

Not available

36

Snapper 7026972

ROD, OPC (Left Hand)
(Superseded to 7026972YP)

$13.99

$

Usually ships in 2-12 days

0

Snapper 7026973

ROD, OPC (Right Hand)
(Superseded to 7026973YP)

Note: (Not Shown)

$13.99

$

Usually ships in 2-12 days

0

37

Snapper 7071640

LEVER, Drive

Note: Was 77870

$

$

Not available

38

Snapper 7027168

SCREW, 5/16-18 x 1"
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

39

Snapper 7091298

NUT, 5/16-18 Hex (Nyloc)
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7014733

PIN, 3/16 x 1-3/4" Clevis
(Superseded to 7014733YP)

$4.49

$

In Stock, only 1 left!

0

41

Snapper 7014734

NUT, 3/16 Push

$3.49

$

In Stock, Qty 9

0

42

Snapper 7091732

BOLT, 1/4-20 x 2-3/4"

Note: Was 90971

$

$

Not available

43

Snapper 7024129

BUSHING
(Superseded to 7024129YP)

$15.99

$

Usually ships in 2-12 days

0

44

Snapper 7091705

NUT, 1/4-20 Hex
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

45

Snapper 7023313

PIN, 5/16 x 1-1/8" Split
(Superseded to 7023313YP)

$2.99

$

Usually ships in 2-12 days

0

?46

Snapper 7017509

SPACER, .384" ID x .265" Long

$5.49

$

Usually ships in 2-12 days

0

47

Snapper 7026983

BUSHING 5/16 (Plastic)

$

$

Not available
