PP 7H141KWV (80571) - Snapper Walk-Behind Mower, 14hp Blade/Blade Deck Idler Assembly (Electric) Parts Diagram

Walk-Behind Mower, 14hp

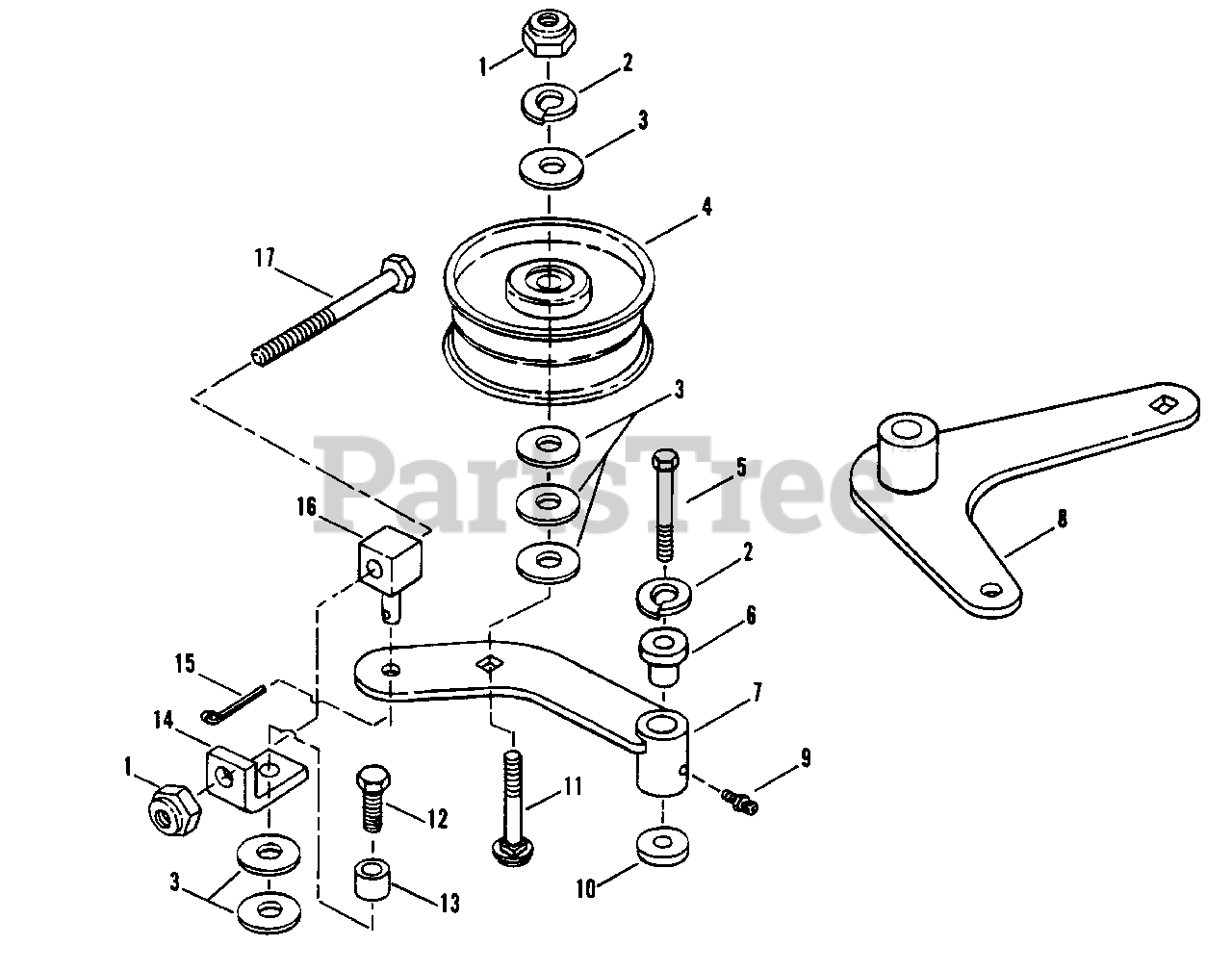

Blade/Blade Deck Idler Assembly (Electric) Parts Diagram

  • Title

1

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

2

Snapper 7090188

WASHER, 3/8 Lock
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 7090517

WASHER, Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

4

Snapper 7027157

PULLEY, Idler

$

$

Not available

5

Snapper 7090590

BOLT, 3/8-16 x 3" Hex Head
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7016173

PIVOT, Spacer
(Superseded to 7016173YP)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 7026940

IDLER ARM WELDMENT (36")

$

$

Not available

8

Snapper 7026942

IDLER ARM WELDMENT (48")

$

$

Not available

9

Snapper 7076998

ZERK, 1/4-28
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

10

Snapper 7016561

BUSHING
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 5

0

11

Snapper 7026984

BOLT, 3/8-16 x 2 1/2" Carriage
(Superseded to 7026984YP)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7091304

BOLT, 3/8-16 x 1"
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

13

Snapper 7017509

SPACER, Blade Engagement

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7033204

ANGLE, Blade Engagement
(Superseded to 7033204YP)

$12.99

$

Usually ships in 2-12 days

0

15

Snapper 7091313

COTTER-PIN, 3/32 x 1"
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

16

Snapper 7017780

SWIVEL
(Superseded to 7017780YP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7027169

BOLT, 3/8-16 x 5" (Tap)
(Superseded to 7027169YP)

$20.99

$

Usually ships in 2-12 days

0
