PP 7H1404KWV (80703) - Snapper Walk-Behind Mower, 14hp Tracking Control Assemblies Parts Diagram

Walk-Behind Mower, 14hp

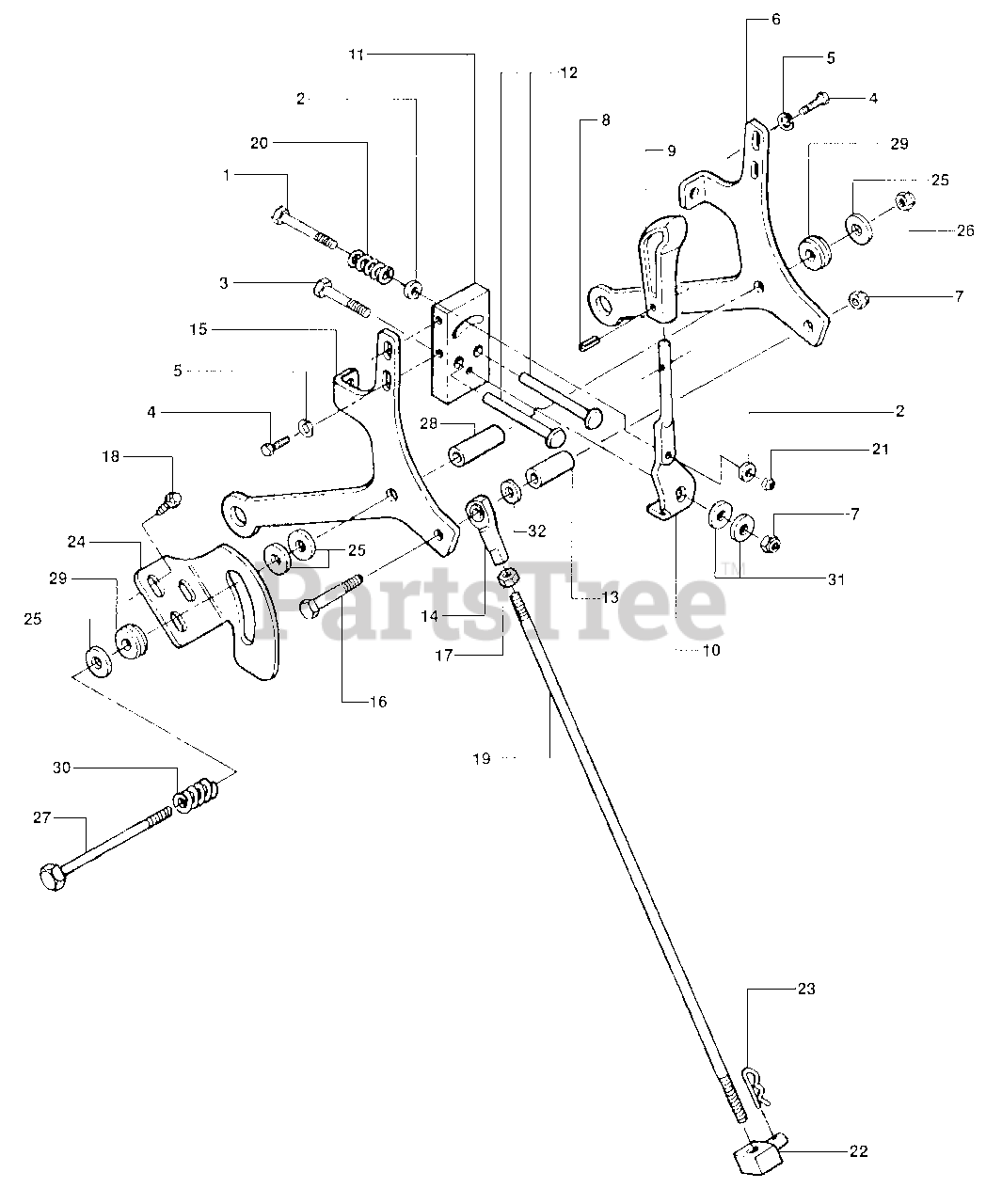

Tracking Control Assemblies Parts Diagram

  • Title

1

Snapper 7027176

BOLT, 1/4-20 x 2 1/2"
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7091294

WASHER, 1/4"
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7027174

BOLT, 5/16-18 x 2"
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

4

Snapper 7090072

SCREW, 1/4-20 x 5/8"
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 18

0

5

Snapper 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7026911

TRACKING CONTROL ARM (Left Side)

$

$

Currently unavailable

7

Snapper 7091298

NUT, 5/16 Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7013550

PIN, 3/16 x 1" Roll
(Superseded to 7013550YP)

Note: Was 27177

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7019376

HANDLE
(Superseded to 7019376YP)

$6.49

$

Usually ships in 2-12 days

0

10

Snapper 7026925

WELDMENT, Speed Control
(Superseded to 7026925YP)

$87.99

$

Usually ships in 2-12 days

0

11

Snapper 7027224

BLOCK, Tracking Control

$

$

Not available

12

Snapper 7027173

PIN, Speed Control

$

$

Not available

13

Snapper 7026882

SPACER, 1 3/16"

$

$

Not available

14

Snapper 7027139

LINKAGE, 5/16
(Superseded to 7027139YP)

$18.99

$

Usually ships in 2-12 days

0

15

Snapper 7026910

TRACKING CONTROL ARM (Right Side)

$

$

Currently unavailable

16

Snapper 7027175

BOLT, 5/16-18 x 2-1/2"
(Superseded to 7091046YP)

$3.99

$

In Stock, only 2 left!

0

17

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 11

0

19

Snapper 7027158

ROD, Speed Control

$

$

Not available

20

Snapper 7017416

SPRING, Tracking Control
(Superseded to 7017416YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7076978

NUT, 1/4" Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7027141

SWIVEL
(Superseded to 7027141YP)

$18.99

$

Usually ships in 2-12 days

0

23

Snapper 7091310

HAIR-PIN
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

24

Snapper 7026908

BRACKET, Speed Control (Right Side)

$

$

Currently unavailable

Snapper 7026909

BRACKET, Speed Control

Note: (Left Side - Not Shown)

$

$

Currently unavailable

25

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

26

Snapper 7091299

NUT, 3/8 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

27

Snapper 7027169

SCREW, 3/8-16 x 5"
(Superseded to 7027169YP)

$20.99

$

Usually ships in 2-12 days

0

28

Snapper 7026883

SPACER, 1 3/4"

$

$

Not available

29

Snapper 7027170

WASHER, Nylon

$

$

Currently unavailable

30

Snapper 7027125

SPRING
(Superseded to 7027125YP)

$5.99

$

Usually ships in 2-12 days

0

31

Snapper 7091130

WASHER, 5/16
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 7090188

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0
