PP 7H1404KWV (80703) - Snapper Walk-Behind Mower, 14hp Loop Handle & Control Assemblies Parts Diagram

Walk-Behind Mower, 14hp

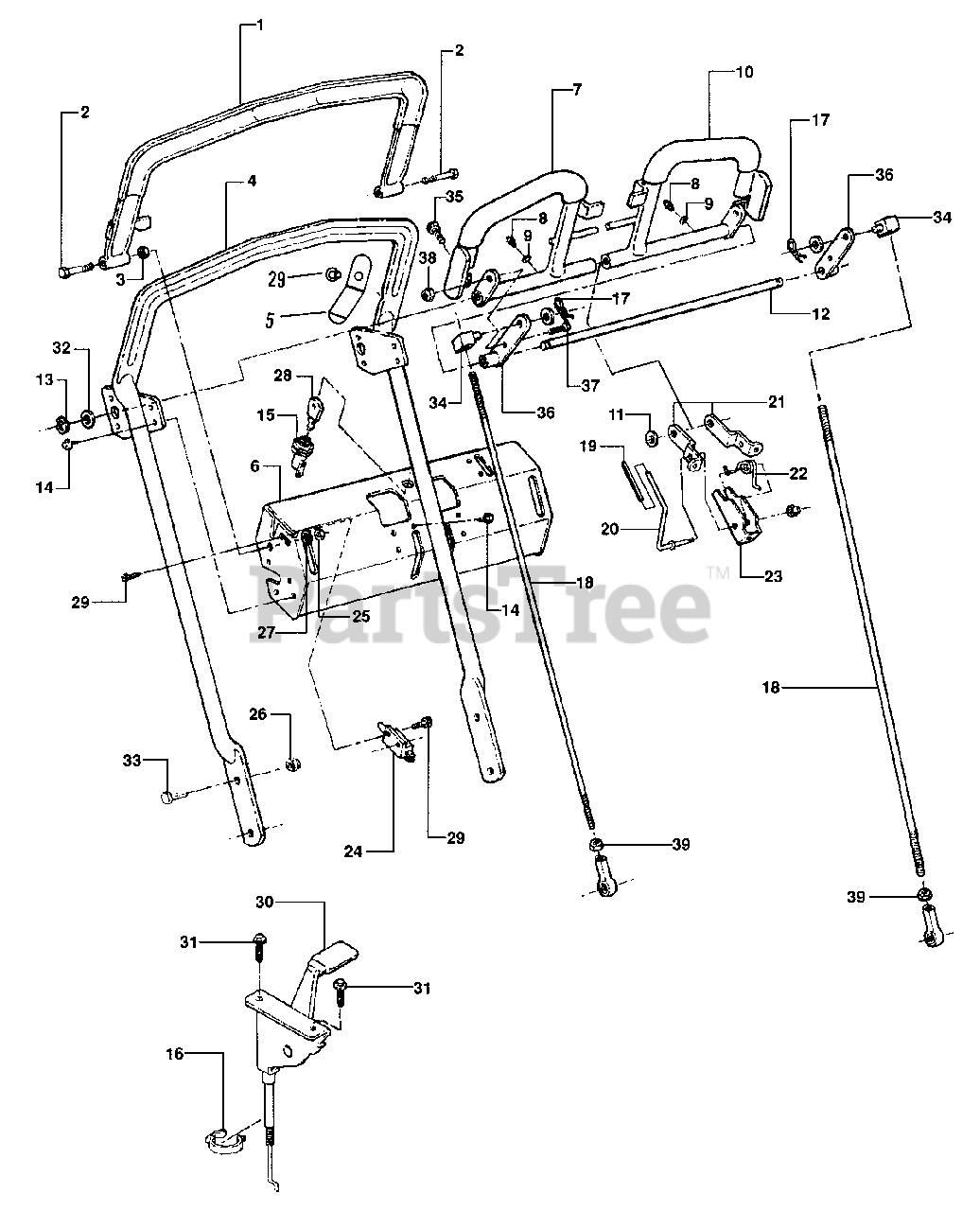

Loop Handle & Control Assemblies Parts Diagram

  • Title

1

Snapper 7040710

BAIL, OPC (With Grip)
(Superseded to 7040710YP)

Note: Was 17162

$119.99

$

Usually ships in 2-12 days

0

2

Snapper 7091813

BOLT, 1/4-20 X 1-1/2" Hex Head
(Superseded to 7091003YP)

Note: Was 91003

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7090977

NUT, 1/4-20 Hex
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

4

Snapper 7026914

HANDLE, Loop

$

$

Not available

5

Snapper 7033889

SPRING
(Superseded to 7033889YP)

$

$

Not available

6

Snapper 7026921

CONTROL, Console

$

$

Not available

7

Snapper 7027159

LEVER, Traction (Right Hand With Grip)
(Superseded to 7027159YP)

$296.99

$

Usually ships in 2-12 days

0

8

Snapper 7076998

ZERK, 1/4-28
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

9

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

10

Snapper 7027160

LEVER, Traction (Left Hand With Grip)

$

$

Not available

11

Snapper 90150

WASHER, 1/2" Flat

$

$

Currently unavailable

12

Snapper 7022166

ROD, Pivot
(Superseded to 7022166YP)

$31.99

$

Usually ships in 2-12 days

0

13

Snapper 7014341

"E"-RING, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

14

Snapper 7091122

SCREW, 1/4-20 X 1/2" Self Tapping
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 7

0

15

Snapper 7017817

SWITCH, On-Off
(Superseded to 7017817YP)

Note: (Includes Key)

$31.99

$

In Stock, only 1 left!

0

16

Snapper 7011709

CLIP, Cable
(Superseded to 7011709YP)

$

$

Not available

17

Snapper 7091310

HAIR PIN, Cotter
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

18

Snapper 7027144

ROD, Traction
(Superseded to 7027144YP)

$12.99

$

Usually ships in 2-12 days

0

19

Snapper 7023801

GRIP, Neutral Latch Red
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

20

Snapper 7017322

LEVER, Neutral Latch
(Superseded to 7017322YP)

$18.99

$

Usually ships in 2-12 days

0

21

Snapper 7033193

BRACKET, Neutral Mounting
(Superseded to 7033193YP)

$23.99

$

Usually ships in 2-12 days

0

22

Snapper 7017323

SPRING, Neutral Torsion
(Superseded to 7017323YP)

$9.99

$

Usually ships in 2-12 days

0

23

Snapper 7027338

LATCH

$

$

Not available

24

Snapper 7027225

SWITCH, OPC
(Superseded to 7027225YP)

$

$

Not available

25

Snapper 7076978

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

27

Snapper 7091098

WASHER, 1/4" Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

29

Snapper 7077873

SCREW, #12-14 X 1/2" Self Tapping
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7022354

CONTROL, Throttle (Kawasaki)
(Superseded to 7022354YP)

$28.99

$

Usually ships in 2-12 days

0

Snapper 7027337

CONTROL, Throttle (Briggs & Stratton)
(Superseded to 7027337YP)

$25.99

$

Usually ships in 2-12 days

0

Snapper 7029100

CONTROL, Throttle (Kohler)
(Superseded to 7029100YP)

$29.99

$

Usually ships in 2-12 days

0

31

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

32

Snapper 7091030

BUSHING, 1/2" Machine
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

33

Snapper 7091304

SCREW, 3/8-16 X 1" Hex Head
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

34

Snapper 7027141

SWIVEL
(Superseded to 7027141YP)

$18.99

$

Usually ships in 2-12 days

0

35

Snapper 7091495

SCREW, 1 /4-20 X 3/4"
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

36

Snapper 7026900

TRACTION ARM

$

$

Not available

37

Snapper 7027168

SCREW, 5/16-18 X 1" Hex Head
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

38

Snapper 7091298

NUT, 5/16-18 Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0
