PP 752 PHK - Poulan Pro Walk-Behind Mower DRIVE ASSEMBLY Parts Diagram

Walk-Behind Mower

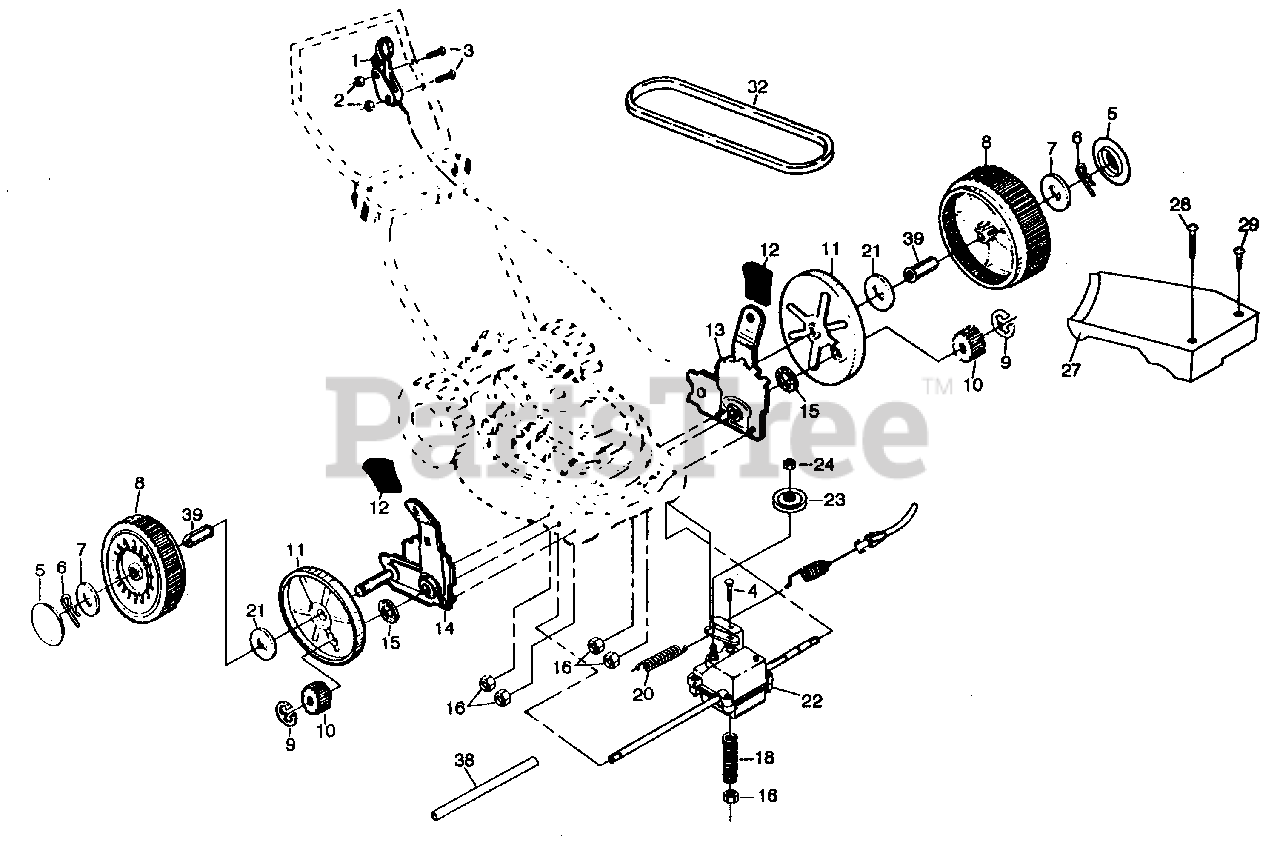

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Poulan 532700615

Drive Control
(Superseded to 532137076)

$

$

Not available

2

Poulan 532069180

Locknut #10-24 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 532750029

Pan Head Machine Screw #10-24 x 2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 532700875

Carriage Bolt 1/4-20 x 2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

6

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 532750851

Wheel & Tire Assembly (AYP part number)

$

$

Not available

9

Poulan 812000058

E-ring (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 532137054

Pinion

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532088080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

12

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

13

Poulan 532751809

Wheel Adjuster Assembly (Left) (AYP part number)
(Superseded to 583530901)

$36.99

$

Usually ships in 3-10 days

0

14

Poulan 532751810

Wheel Adjuster Assembly (Right) (AYP part number)

$

$

Not available

15

Poulan 532088118

Felt Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 532137090

Spring (AYP part number)

$6.49

$

In Stock, only 1 left!

0

20

Poulan 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 532067725

Washer 1/2 x 1-1/2 x .134 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

22

Poulan 532702510

Gear Case Assembly (AYP part number)

$

$

Not available

23

Poulan 532137052

Drive Pulley (AYP part number)
(Superseded to 532189407)

$

$

Not available

24

Poulan 532132010

Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532137080

Drive Cover

$

$

Not available

28

Poulan 532087866

Pan Head Tapping Screw #10-24 x 2-3/4 (AYP part number)

$

$

Not available

29

Poulan 532136797

Pan Head Tapping Screw #10-24 x 1-3/4 (AYP part number)
(Superseded to 532149746)

$7.49

$

In Stock, only 1 left!

0

32

Poulan 532137078

V-Belt
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

38

Poulan 532086012

Drive Shaft Cover (AYP part number)

$

$

Not available

39

Poulan 532088446

Wheel Bushing (AYP part number)

$

$

Not available

Poulan 532146598

Drive Cover Decal

Note: Not Shown.

$

$

Not available

Poulan GCK2200

Grass Catcher (AYP part number)

$

$

Not available

Poulan MK1000

Mulcher Kit (AYP part number)

$

$

Not available
