PP 752 HW - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 124802-3213-01 Parts Diagram

Walk-Behind Mower

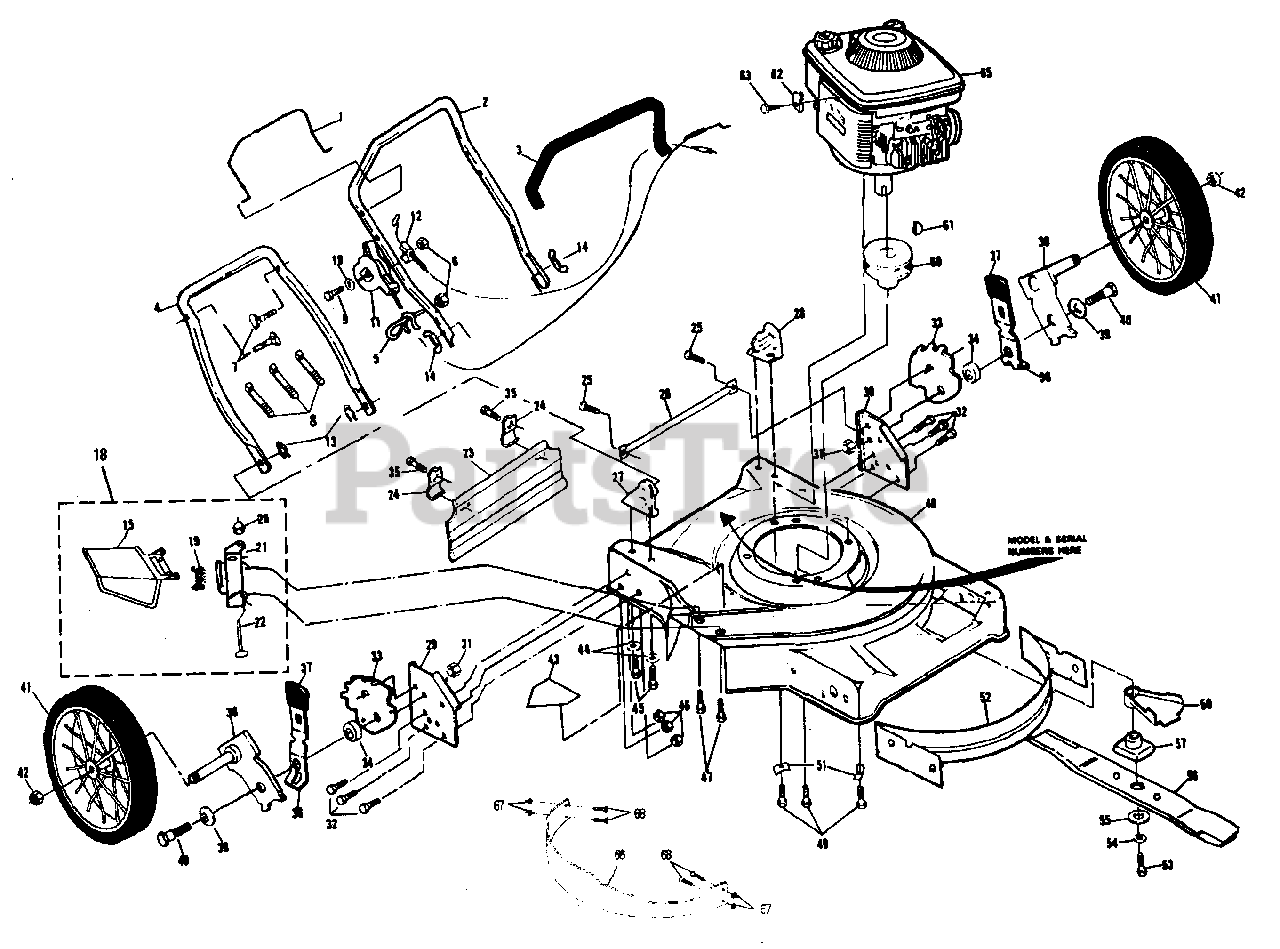

MOWER HOUSING, ENGINE B/S 124802-3213-01 Parts Diagram

  • Title

1

Poulan 532851513

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532125161

Upper Handle (AYP part number)

$

$

Not available

3

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

4

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

5

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

6

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532131959

Handle Bolt 5/16-18 x 1-3/4 (AYP part number)
(Superseded to 532183724)

$

$

Not available

8

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Poulan 874250434

Machine Screw 1/4-20 x 2-1/8 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532132536

Throttle Control (AYP part number)
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

12

Poulan 532130861

Engine Zone Control Cable

$

$

Not available

13

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

14

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

15

Poulan 532851750

Discharge Guard

$

$

Not available

18

Poulan 532851751

Discharge Guard Assembly (AYP part number)

$

$

Not available

19

Poulan 532851855

Torsion Spring (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

20

Poulan 532083731

Speed Nut (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 532125175

Housing Bracket (AYP part number)
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 532851854

Hinge Rod (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

23

Poulan 532134254

Rear Skirt (AYP part number)
(Superseded to 532140539)

$

$

Not available

24

Poulan 532125207

Bracket Skirt (AYP part number)
(Superseded to 532087584)

$

$

Not available

25

Poulan 532054583

Hex Tapping Screw 1/4-20 x 1/2 (AYP part number)

$

$

Not available

26

Poulan 532850709

Rod Support (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 532125164

Handle Bracket Assembly, Right (Yellow) (AYP part number)

$

$

Not available

28

Poulan 532125163

Handle Bracket Assembly, Left (Yellow) (AYP part number)

$

$

Not available

29

Poulan 532125365

Wheel Support Bracket, Right (Yellow)) (AYP part number)

$

$

Not available

30

Poulan 532125363

Wheel Support Bracket, Left (Yellow)) (AYP part number)

$

$

Not available

31

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 874760612

Hex Head Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

33

Poulan 532850904

Wheel Adjuster Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

35

Poulan 532750097

Screw Hex Washer Head Tapping (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

36

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

37

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

38

Poulan 532851119

Axle Arm Assembly (AYP part number)

$

$

Not available

39

Poulan 532061651

Washer (AYP part number)
(Superseded to 61651)

$2.99

$

Usually ships in 3-10 days

0

40

Poulan 532084921

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

41

Poulan 532107620

Wheel & Tire Assembly (AYP part number)

$

$

Not available

42

Poulan 532083923

Hex Flange Locknut 3/18-16 (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

43

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

44

Poulan 532059289

Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

45

Poulan 532055187

Screw (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 6

0

46

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 532851856

Hex Head Thread Rolling screw w/Sems 1/4-20 (AYP part number)
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

48

Poulan 532134754

Lawn Mower Housing

Note: (Incl. Ref. #43)

$

$

Not available

49

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

50

Poulan 532134612

Debris Shield
(Superseded to 532048283)

$

$

Not available

51

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

52

Poulan 532125337

Front Baffle (AYP part number)
(Superseded to 532132352)

$

$

Not available

53

Poulan 532851084

Hex Head Screw 3/8 x 24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Poulan 532850263

Helical Lockwasher 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

56

Poulan 532134768

Mulcher Blade (AYP part number)
(Superseded to 532752234)

$

$

Not available

57

Poulan 532851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

60

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

61

Poulan 532087677

Hi-Pro key #HP-505 (AYP part number)

$

$

Not available

62

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

63

Poulan 532083816

Screw 10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

64

Poulan 532125033

Rear Baffle (Not Shown) (AYP part number)
(Superseded to 83976X479)

$

$

Not available

66

Poulan 532125344

Baffle Mulcher (AYP part number)
(Superseded to 532082432)

$

$

Not available

67

Poulan 532069180

Nut, Hex Lock (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 874961008

Screw Machine 10-24 x 1/2 (AYP part number)

$

$

Not available

Poulan 532134740

Operator's Manual (English)

Note: Not Shown.

$

$

Not available

Poulan 532134741

Operator's Manual (French) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532134742

Repair Part's Manual (Eng/Fr) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532851811

Decal, Logo (Housing) (AYP part number)

Note: Not Shown.

$

$

Not available
