PP 752 HW - Poulan Pro Walk-Behind Mower DRIVE ASSEMBLY Parts Diagram

Walk-Behind Mower

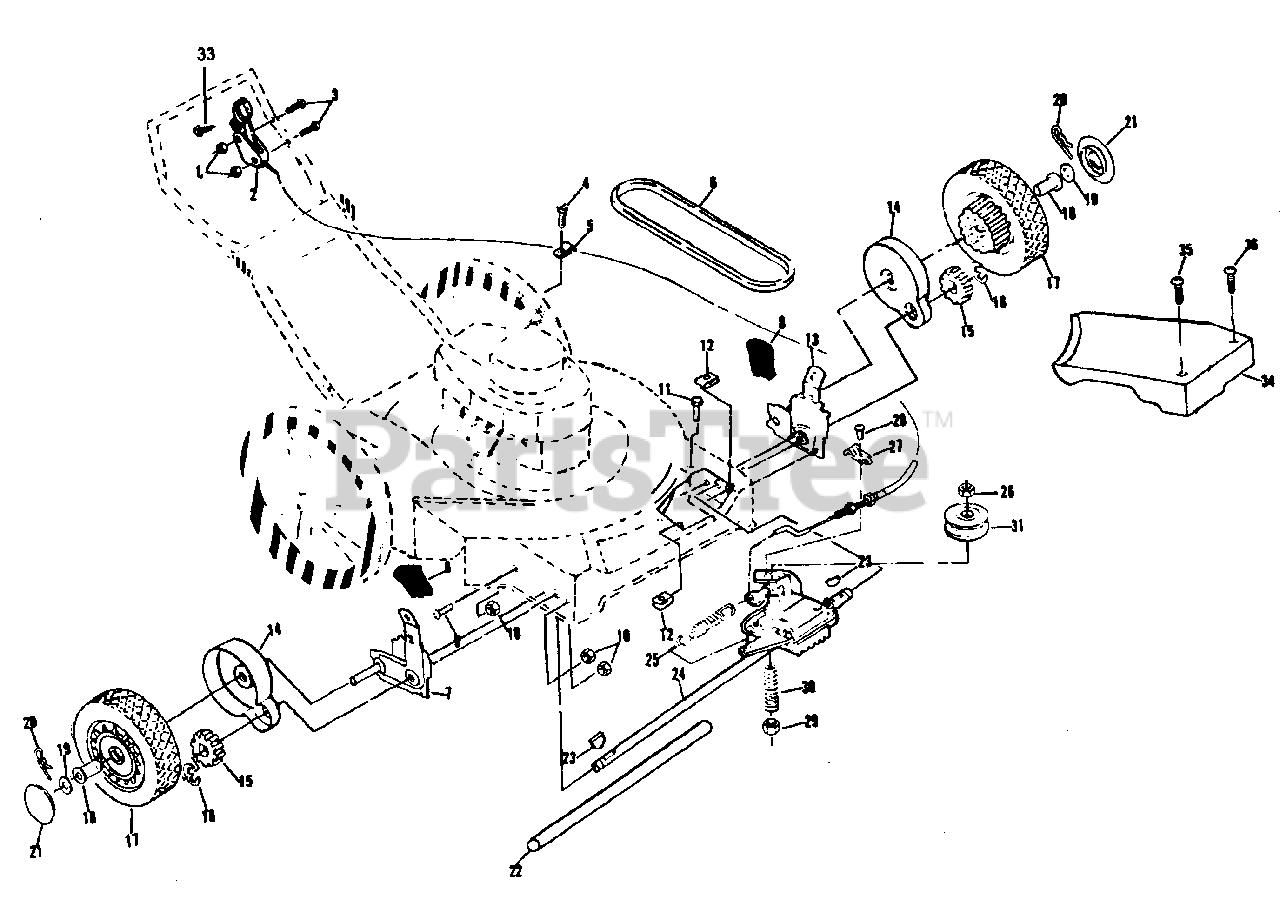

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Poulan 532074189

Locknut 10-24 (AYP part number)

$

$

Not available

2

Poulan 532133049

Drive Control (AYP part number)

$

$

Not available

3

Poulan 532078186

Pan Head Machine Screw 10-24 x 2 (AYP part number)

$

$

Not available

4

Poulan 532750097

Hex Washer Head Tapping Screw 10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

5

Poulan 532087930

Guide Clip (Housing) (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 532083691

V-Belt

$

$

Not available

7

Poulan 532851031

Wheel Adjuster Assembly (Right) (AYP part number)

$

$

Not available

8

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

9

Poulan 874100412

Flat Head Machine Screw 1/4-20 x 3/4 (AYP part number)

$

$

Not available

10

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 874760444

Hex Head Bolt 1/4-20 x 2-3/4 (AYP part number)

$

$

Not available

12

Poulan 532075449

Speed Nut (AYP part number)

$

$

Not available

13

Poulan 532851032

Wheel Adjuster Assembly (Left) (AYP part number)

$

$

Not available

14

Poulan 532076401

Dust Cover (AYP part number)

$

$

Not available

15

Poulan 532074507

Pinion (AYP part number)

$

$

Not available

16

Poulan 812000003

E-Ring

$

$

Not available

17

Poulan 532134613

Wheel & Tire Assembly 8.0 x 1-3/4

$

$

Not available

18

Poulan 532086960

Wheel Bushing (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

22

Poulan 532086012

Drive Shaft Cover (AYP part number)

$

$

Not available

23

Poulan 532065692

Woodruff Key #3 (AYP part number)

$

$

Not available

24

Poulan 532048282

Gear Case (AYP part number)

$

$

Not available

25

Poulan 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532132010

Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532083700

Cable Clamp (Adj. Bracket) (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

28

Poulan 532750108

Pan Head Self Tapping Screw #10-24 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 532068038

Locknut 1/4-20 (AYP part number)
(Superseded to 73850400)

$

$

Not available

30

Poulan 532083632

Spring (AYP part number)
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

31

Poulan 532131482

Drive Pulley (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 532851552

Screw, Pan Head, Hi-Lo 10-16 x .63 (AYP part number)

$

$

Not available

34

Poulan 532133391

Drive Cover (AYP part number)

$

$

Not available

35

Poulan 874981028

Pan Head Machine Screw #10-24 x 1-3/4 (AYP part number)

$

$

Not available

36

Poulan 532075725

Pan Head Machine Screw #10-24 x 2 3/4 (AYP part number)

$

$

Not available

Poulan 532851812

Decal, Drive Cover (AYP part number)

Note: Not Shown.

$

$

Not available
