PP 752 HLA - Poulan Pro Walk-Behind Mower Rotary Lawn Mower P/N 954 07 19-06 Parts Diagram

Walk-Behind Mower

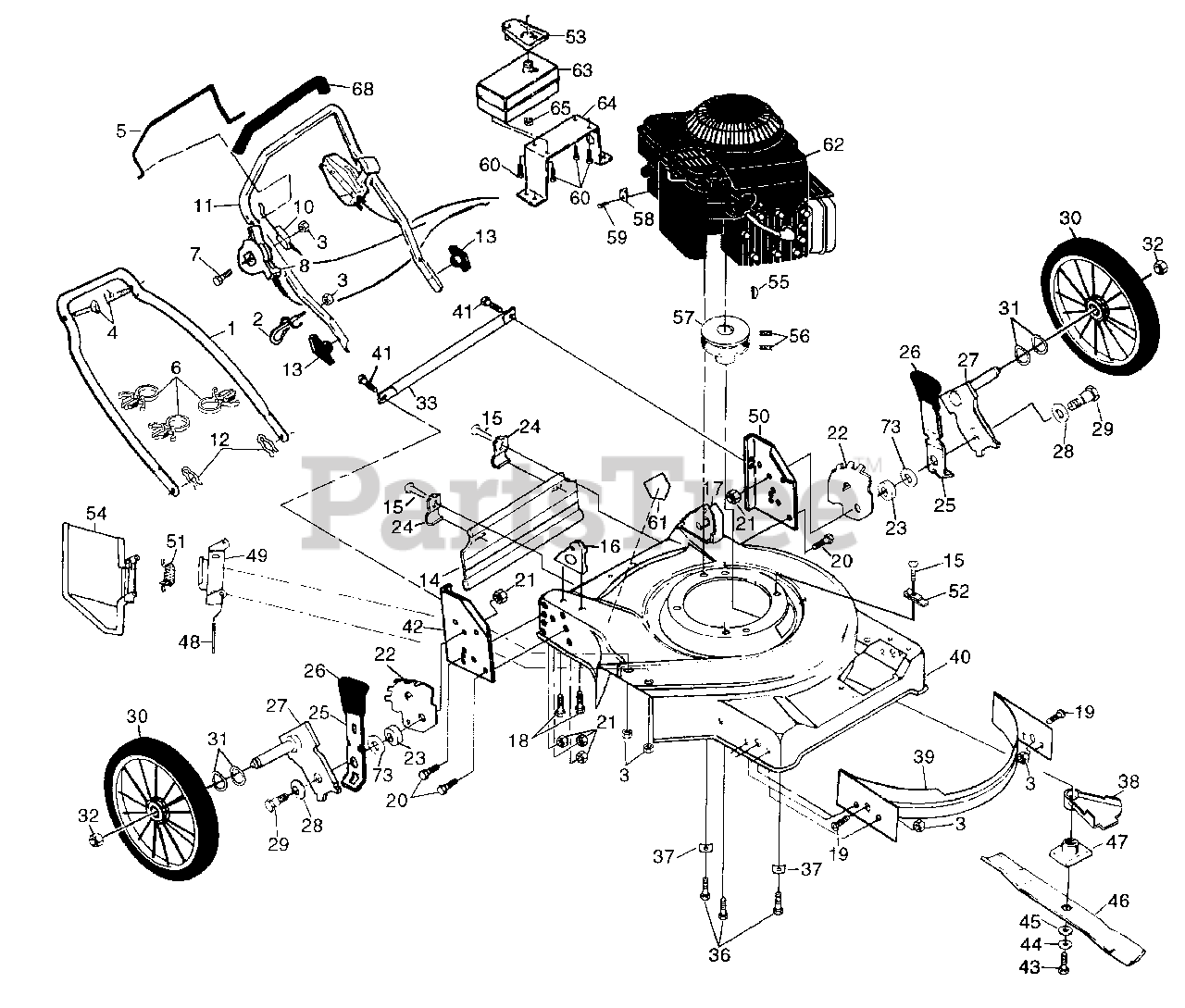

Rotary Lawn Mower P/N 954 07 19-06 Parts Diagram

  • Title

1

Poulan 532153418

Lower Handle (AYP part number)
(Superseded to 532175245)

$

$

Not available

2

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 532131959

Handle Bolt (AYP part number)
(Superseded to 532183724)

$

$

Not available

5

Poulan 532145794

Control Bar (AYP part number)
(Superseded to 583678201)

$

$

Not available

6

Poulan 532151517

Cable Clip (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Poulan 532144929

Hex Washer Head Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 532158755)

$

$

Not available

8

Poulan 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

10

Poulan 532130861

Engine Zone Cable

$

$

Not available

11

Poulan 532146883

Upper Handle (AYP part number)

$

$

Not available

12

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 532136376

Handle Knob (AYP part number)
(Superseded to 532183724)

$

$

Not available

14

Poulan 532140539

Rear Skirt (AYP part number)

$

$

Not available

15

Poulan 532750097

Hex Head Screw #10 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

16

Poulan 532153026

Handle Bracket Assembly (Right) (AYP part number)
(Superseded to 532151665)

$42.99

$

Usually ships in 3-10 days

0

17

Poulan 532153027

Handle Bracket Assembly (Left) (AYP part number)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

18

Poulan 532149741

Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 532171877)

$7.49

$

In Stock, only 2 left!

0

19

Poulan 874100412

Flat Machine Screw 1/4-20 x 3/4 (AYP part number)

$

$

Not available

20

Poulan 874760612

Hex Head Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 2 left!

0

21

Poulan 532751592

Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 532139901

Wheel Adjusting Bracket (R.R.) (AYP part number)
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

24

Poulan 532125207

Skirt Bracket (AYP part number)
(Superseded to 532087584)

$

$

Not available

25

Poulan 532141730

Selector Spring (AYP part number)
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

26

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

27

Poulan 532125373

Axle Arm Assembly (AYP part number)

$

$

Not available

28

Poulan 532061651

Rear Spring Washer (AYP part number)
(Superseded to 61651)

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 532142748

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

30

Poulan 532107620

Wheel & Tire Assembly (Rear) (AYP part number)

$

$

Not available

31

Poulan 532057143

Wave Washer (AYP part number)
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

32

Poulan 532083923

Nut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 532850709

Rod Support (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 532087277

Fuel Tank Cap (AYP part number)

$

$

Not available

36

Poulan 532150406

Thread Rolling Screw 3/8-16 x 1 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

37

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 532134612

Debris Shield
(Superseded to 532048283)

$

$

Not available

39

Poulan 532132352

Front Baffle
(Superseded to 532165549)

$

$

Not available

40

Poulan 532153550

Mower Housing Kit

Note: (Includes Key No. 61)

$126.99

$

Usually ships in 3-10 days

0

41

Poulan 532054583

Screw (AYP part number)

$

$

Not available

42

Poulan 532125365

Wheel Support Bracket R.H. (AYP part number)

$

$

Not available

43

Poulan 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

44

Poulan 532850263

Helical Washer 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

45

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, Qty 7

0

46

Poulan 532141114

22" Blade (AYP part number)

$28.99

$

In Stock, only 1 left!

0

47

Poulan 532851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

48

Poulan 532147286

Hinge Rod (AYP part number)

$8.99

$

In Stock, Qty 9

0

49

Poulan 532147775

Housing Bracket (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 532125363

Wheel Support Bracket L.H. (AYP part number)

$

$

Not available

51

Poulan 532145286

Torsion Spring (AYP part number)
(Superseded to 532152186)

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 532087930

Guide Clip (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

53

Poulan 532073459

Deflector (AYP part number)

$

$

Not available

54

Poulan 532145282

Discharge Guard (AYP part number)

$

$

Not available

55

Poulan 532087677

Hi-Pro Key (AYP part number)

$

$

Not available

56

Poulan 532059708

Set Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

58

Poulan 532111190

Cable Clamp (AYP part number)

$

$

Not available

59

Poulan 532083816

Screw #10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 532073013

Screw

$

$

Not available

61

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

62

Engine - Briggs & Stratton Model No. 129802

Note: (This part must be purchased through an authorized Briggs & Stratton Dealer.)

$

$

Not available

63

Poulan 532073427

Fuel Tank (AYP part number)

$

$

Not available

64

Poulan 532153604

Fuel Tank Bracket (AYP part number)

$

$

Not available

65

Poulan 532074486

Fuel Line Clamp (AYP part number)

$

$

Not available

68

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

73

Poulan 532088348

Flat Washer 3/8 (AYP part number)

$7.49

$

In Stock, Qty 5

0

Poulan 532083976

Rear Baffle

Note: (Not Shown)

$

$

Not available

Poulan 532145658

Operator's Manual (English) (AYP part number)

$

$

Not available

Poulan 532145659

Operator's Manual (French) (AYP part number)

$

$

Not available

Poulan 532153549

Repair Parts Manual

$2.49

$

Usually ships in 3-10 days

0
