PP 752 HIA - Poulan Pro Walk-Behind Mower GEARCASE ASSEMBLY Parts Diagram

Walk-Behind Mower

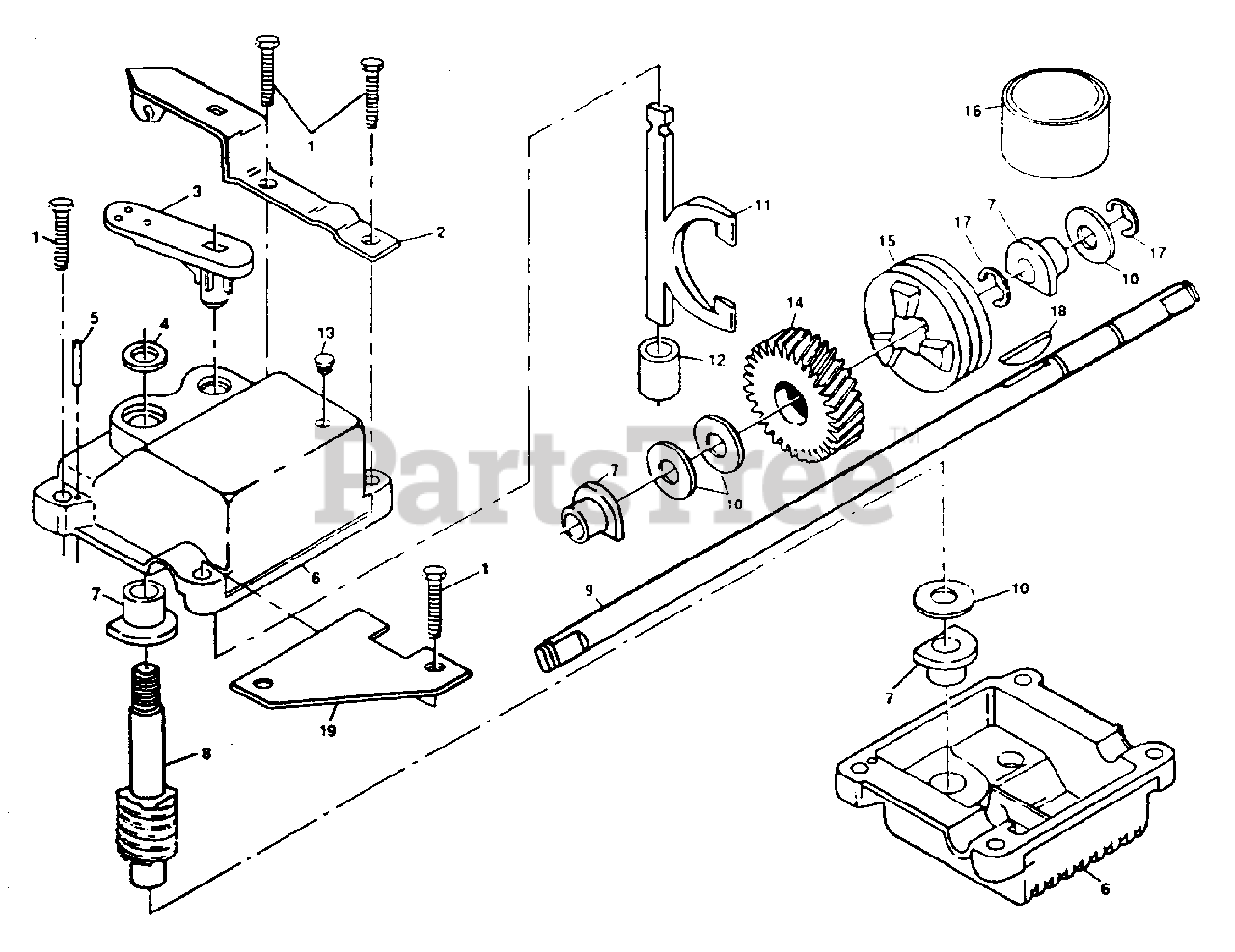

GEARCASE ASSEMBLY Parts Diagram

  • Title

1

Poulan 817490416

Screw, Tapping 1/4-20 x 1-1/4 (AYP part number)
(Superseded to 817640416)

$

$

Not available

2

Poulan 532137055

Bracket, Adjusting (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 532137053

Shifter (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 532057072

Seal

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 532057388

Pin, Grooved 1/8 x 1/2 (AYP part number)

$

$

Not available

6

Poulan 532048281

Gear Case Halves, Upper and Lower (AYP part number)

Note: (Includes Key #4, 5 and 7)

$

$

Not available

7

Poulan 532707881

Bearing

$

$

Not available

8

Poulan 532137051

Shaft, Worm (AYP part number)
(Superseded to 532183863)

$

$

Not available

9

Poulan 532137077

Drive Shaft (AYP part number)

$

$

Not available

10

Poulan 532057079

Washer, Hardened (AYP part number)

$6.49

$

In Stock, Qty 12

0

11

Poulan 532131484

Yoke, Clutch (AYP part number)

$

$

Not available

12

Poulan 532700343

Bushing (AYP part number)

$

$

Not available

13

Poulan 532086447

Plug (AYP part number)

$

$

Not available

14

Poulan 532137050

Gear, Helical (AYP part number)

$46.99

$

In Stock, only 1 left!

0

15

Poulan 532750436

Jaw, Clutch (AYP part number)

$

$

Not available

16

Poulan 532750355

Grease (AYP part number)
(Superseded to 532006066)

$

$

Not available

17

Poulan 812000003

E-Ring

$

$

Not available

18

Poulan 532850848

Key, Hi-Pro (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532125441

Spring Bracket (AYP part number)

$

$

Not available
