PP 751 HW - Poulan Pro Walk-Behind Mower MOWER ASSEMBLY, ENGINE B/S 124802 Parts Diagram

Walk-Behind Mower

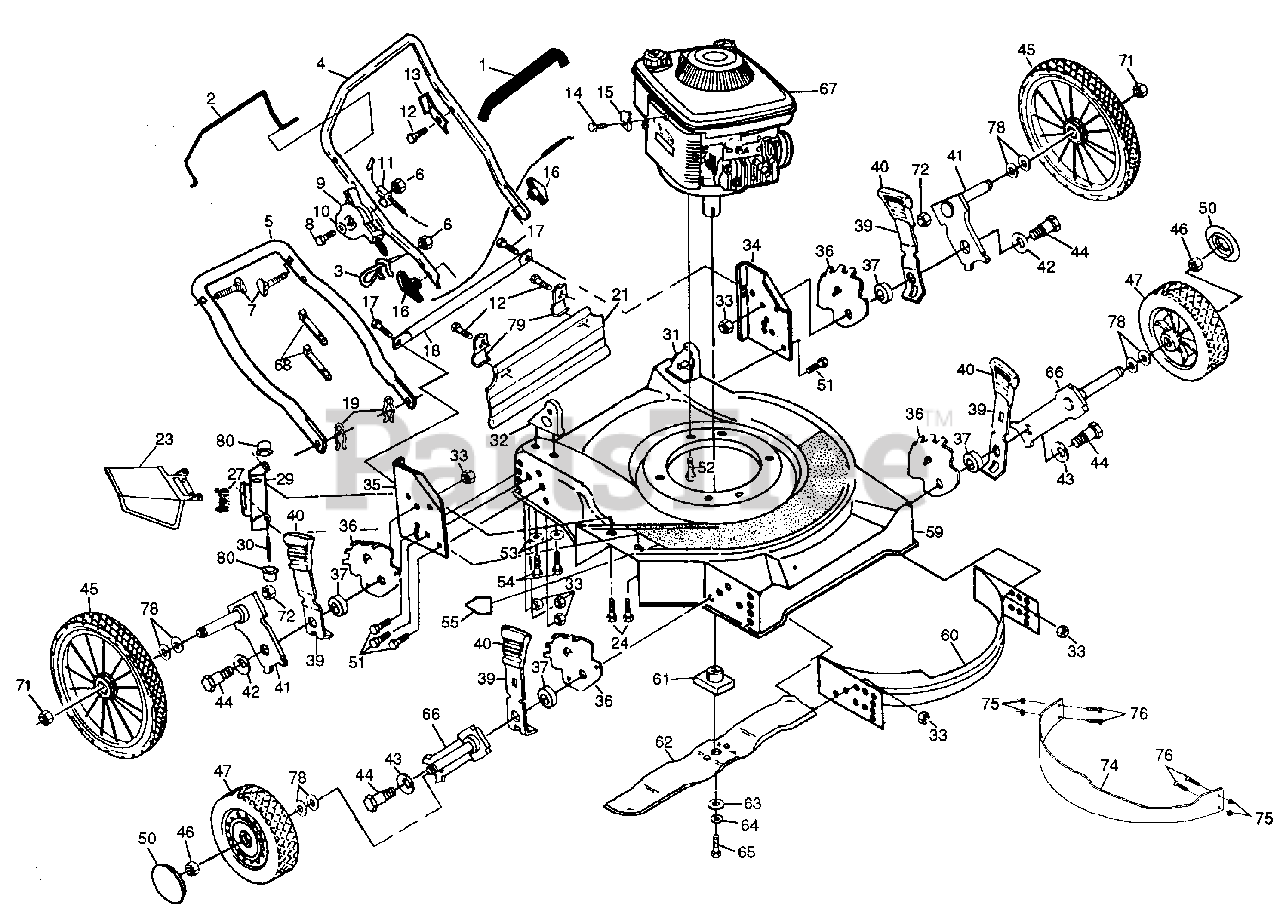

MOWER ASSEMBLY, ENGINE B/S 124802 Parts Diagram

  • Title

1

Poulan 532850724

Grip, Handle (AYP part number)
(Superseded to 532155890)

$

$

Not available

2

Poulan 532800655

Bar, Control
(Superseded to 532850735)

$

$

Not available

3

Poulan 532132001

Guide, Rope
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Poulan 532125161

Handle, Upper (AYP part number)

$

$

Not available

5

Poulan 532125160

Handle, Lower (AYP part number)
(Superseded to 151516X479)

$

$

Not available

6

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532131959

Bolt, Handle 5/16-18 x 1-3/4 (AYP part number)
(Superseded to 532183724)

$

$

Not available

8

Poulan 532085692

Screw, Machine 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532851707

Control, Throttle
(Superseded to 532700654)

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 532085723

Washer, Flat (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532130861

Engine, Zone Control Cable

$

$

Not available

12

Poulan 532750097

Screw, Hex Washer Head 10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Poulan 532125162

Bracket, Up-Stop (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Poulan 532083816

Screw, Thread Rolling 10-32 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 532213146

Clamp, Cable (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

16

Poulan 532063688

Knob, Handle (AYP part number)
(Superseded to 532136376)

$

$

Not available

17

Poulan 532054583

Screw, Hex, Tapping 1/4-20 x 1/2 (AYP part number)

$

$

Not available

18

Poulan 532107611

Rod, Support (AYP part number)

$

$

Not available

19

Poulan 532051793

Cotter, Hairpin (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532134254

Skirt, Rear (AYP part number)
(Superseded to 532140539)

$

$

Not available

23

Poulan 532851750

Guard, Discharge

$

$

Not available

24

Poulan 532851856

Screw, Hex Head Thread Rolling 1/4-20 x 3/4 (AYP part number)
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 532851855

Spring, Torsion (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 532125175

Bracket, Housing (AYP part number)
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 532851854

Rod, Hinge (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

31

Poulan 532125163

Bracket Assembly, Handle (Left) (AYP part number)

$

$

Not available

32

Poulan 532125164

Bracket Assembly, Handle (Right) (AYP part number)

$

$

Not available

33

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 532125165

Bracket, Wheel, Support (Left) (AYP part number)

$

$

Not available

35

Poulan 532125166

Bracket, Wheel, Support (Right) (AYP part number)

$

$

Not available

36

Poulan 532850955

Bracket, Wheel, Adjusting (AYP part number)
(Superseded to 532139901)

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

39

Poulan 532125168

Spring, Selector (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

40

Poulan 532132800

Knob, Selector
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

41

Poulan 532125373

Arm Assembly, Axle (Rear) (AYP part number)

$

$

Not available

42

Poulan 532061651

Washer, Spring, Rear (AYP part number)
(Superseded to 61651)

$2.99

$

Usually ships in 3-10 days

0

43

Poulan 532062335

Washer, Belleville (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

44

Poulan 532084921

Bolt, Shoulder 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

45

Poulan 532107620

Assembly, Wheel and Tire 8.0 x 2.0 (AYP part number)

$

$

Not available

46

Poulan 532083923

Locknut 3/8-16 (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Poulan 532134638

Assembly, Wheel and Tire 14.0 x 2.0

$

$

Not available

50

Poulan 532125369

Cap, Hub (AYP part number)

$

$

Not available

51

Poulan 874760612

Bolt, Hex Head 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

52

Poulan 532850998

Screw, Hex Head Thread Rolling (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

53

Poulan 532059289

Washer, Flat (AYP part number)

$4.99

$

In Stock, only 3 left!

0

54

Poulan 532055187

Screw, Thread, Cutting 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

55

Poulan 532107339

Decal, Danger (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

59

Poulan 532132806

Housing, Lawn Mower

Note: (Incl. Ref. #59)

$

$

Not available

60

Poulan 532125320

Baffle, Front (AYP part number)
(Superseded to 532700929)

$

$

Not available

61

Poulan 532851514

Adapter, Blade
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

62

Poulan 532134768

Blade, 22" (AYP part number)
(Superseded to 532752234)

$

$

Not available

63

Poulan 532851074

Washer, Hardened (AYP part number)

$4.99

$

In Stock, only 4 left!

0

64

Poulan 532850263

Washer, Lock, Helical 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

65

Poulan 532851084

Screw, Hex, Head 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

66

Poulan 532125169

Arm Assembly, Axle (Front) (AYP part number)
(Superseded to 532750610)

$

$

Not available

68

Poulan 532066426

Tie, Wire (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

71

Poulan 532083423

Locknut (AYP part number)

$

$

Not available

74

Poulan 532125344

Close Out Plate (AYP part number)
(Superseded to 532082432)

$

$

Not available

75

Poulan 532069180

Locknut #10-24 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

76

Poulan 874961008

Machine Screw (AYP part number)

$

$

Not available

78

Poulan 532057143

Spring Washers (AYP part number)
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

79

Poulan 532125207

Skirt Brackets (AYP part number)
(Superseded to 532087584)

$

$

Not available

80

Poulan 532083731

Speed Nut (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

Poulan 532134485

Repair Parts

Note: Not Shown.

$

$

Not available

Poulan 532134731

Operator's Manual (French) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532134730

Operator's Manual (English)

Note: Not Shown.

$

$

Not available
