PP 750 PS - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 124702 Parts Diagram

Walk-Behind Mower

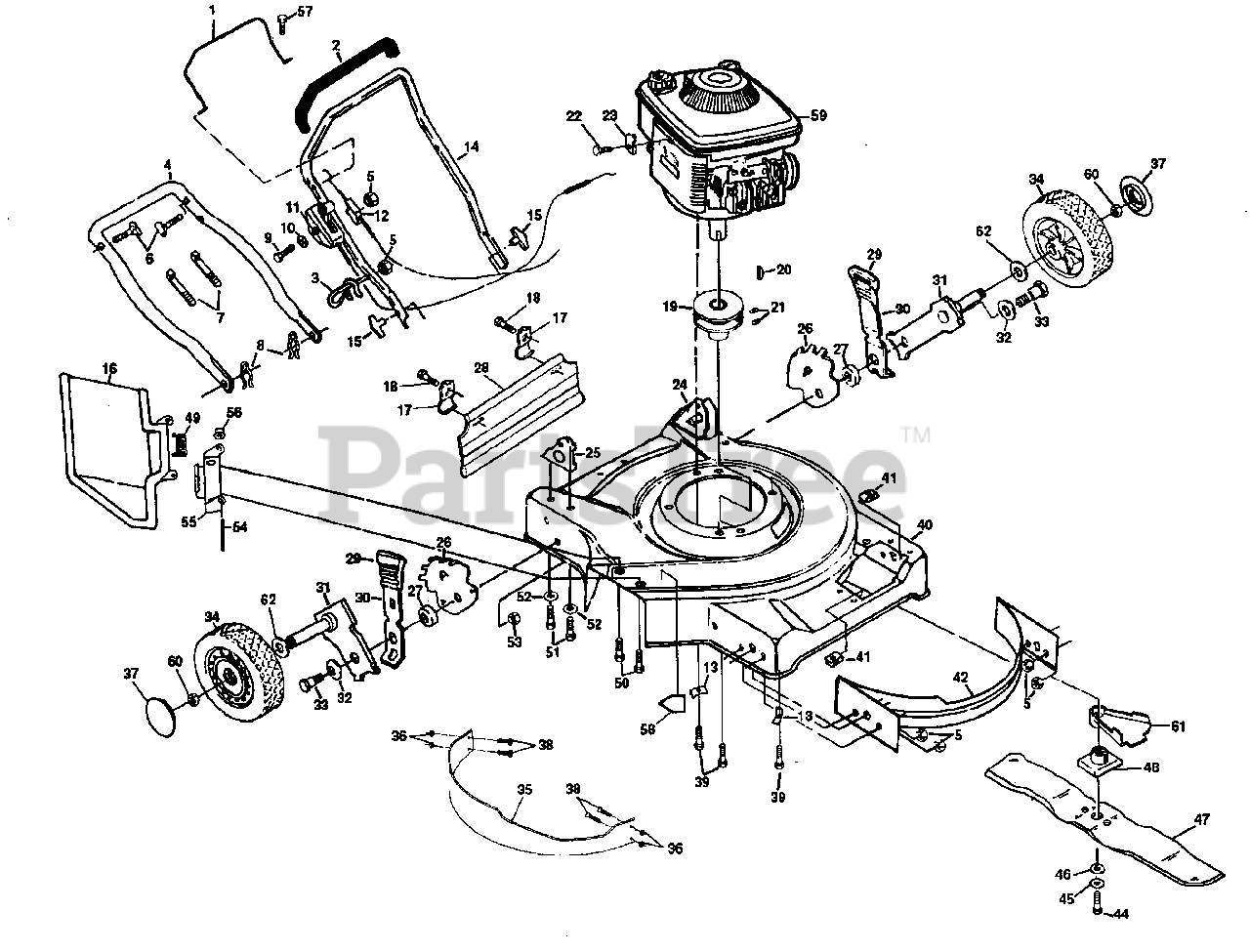

MOWER HOUSING, ENGINE B/S 124702 Parts Diagram

  • Title

1

Poulan 532851510

Control Bar

$

$

Not available

2

Poulan 532129714

Handle Grip (AYP part number)

$

$

Not available

3

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

5

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532131959

Handle Bolt (AYP part number)
(Superseded to 532183724)

$

$

Not available

7

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 532085692

Machine Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532085723

Washer 9/32 x 5/8 x 1/16 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532132536

Deluxe Throttle Control (AYP part number)
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

12

Poulan 532130861

Engine Zone Control Cable

$

$

Not available

13

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

14

Poulan 532125319

Upper Handle (AYP part number)

$

$

Not available

15

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

16

Poulan 532851750

Discharge Guard

$

$

Not available

17

Poulan 532125207

Bracket Skirt (AYP part number)
(Superseded to 532087584)

$

$

Not available

18

Poulan 532081276

Screw Hex Washer Head (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

19

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

20

Poulan 532087677

Hi Pro Key #HP-505 (AYP part number)

$

$

Not available

21

Poulan 532059708

Set Screw 1/4-20 x 5/16 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 532083816

Thread Rolling Screw #10-32 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532213146

Cable Clamp (Engine) (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 532125163

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

25

Poulan 532125164

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

26

Poulan 532850904

Wheel Adjuster Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

28

Poulan 532128797

Rear Skirt (AYP part number)
(Superseded to 532140540)

$13.99

$

Usually ships in 3-10 days

0

29

Poulan 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

30

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

31

Poulan 532125169

Axle Arm Assembly (AYP part number)
(Superseded to 532750610)

$

$

Not available

32

Poulan 532062335

Belleville Washer 1/2 (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 532084921

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

34

Poulan 532801847

Wheel & Tire Assembly (Rear) 8.00 x 1.75

$

$

Not available

35

Poulan 532125344

Baffle Mulcher (AYP part number)
(Superseded to 532082432)

$

$

Not available

36

Poulan 532069180

Locknut (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

38

Poulan 874961008

Screw (AYP part number)

$

$

Not available

39

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532134627

Lawn Mower Housing Kit (Inc. 58)

$

$

Not available

41

Poulan 532075449

U-type Speed Nut (AYP part number)

$

$

Not available

42

Poulan 532125337

Front Baffle (AYP part number)
(Superseded to 532132352)

$

$

Not available

43

Poulan 532125033

Rear Baffle (Not Shown) (AYP part number)
(Superseded to 83976X479)

$

$

Not available

44

Poulan 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

45

Poulan 532850263

Helical Lockwasher 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

46

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

47

Poulan 532134768

22" Blade (AYP part number)
(Superseded to 532752234)

$

$

Not available

48

Poulan 532851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

49

Poulan 532851855

Torsion Spring (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

50

Poulan 532851856

Hex Head Thread Rolling Screw w/Sems 1/4-20 (AYP part number)
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 532055187

Thread Cutting Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

52

Poulan 532059289

Washer 5/16 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

53

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 532851854

Hinge Rod (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

55

Poulan 532125175

Housing Bracket (AYP part number)
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 532083731

Push-on Speed Nut (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

57

Poulan 532851552

Self-tapping Screw #10-24 x 5/8 (AYP part number)

$

$

Not available

58

Poulan 532107339

Danger Decal (Housing) (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

60

Poulan 532083923

Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

61

Poulan 532134612

Shield Debris
(Superseded to 532048283)

$

$

Not available

62

Poulan 532057143

Wave Washer (AYP part number)
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

Poulan 532134623

Operator's Manual (English)

Note: Not Shown.

$

$

Not available

Poulan 532134624

Operator's Manual (French) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532134625

Repair Parts Manual (English/French)

Note: Not Shown.

$

$

Not available
