PP 750 PA - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 124702 Parts Diagram

Walk-Behind Mower

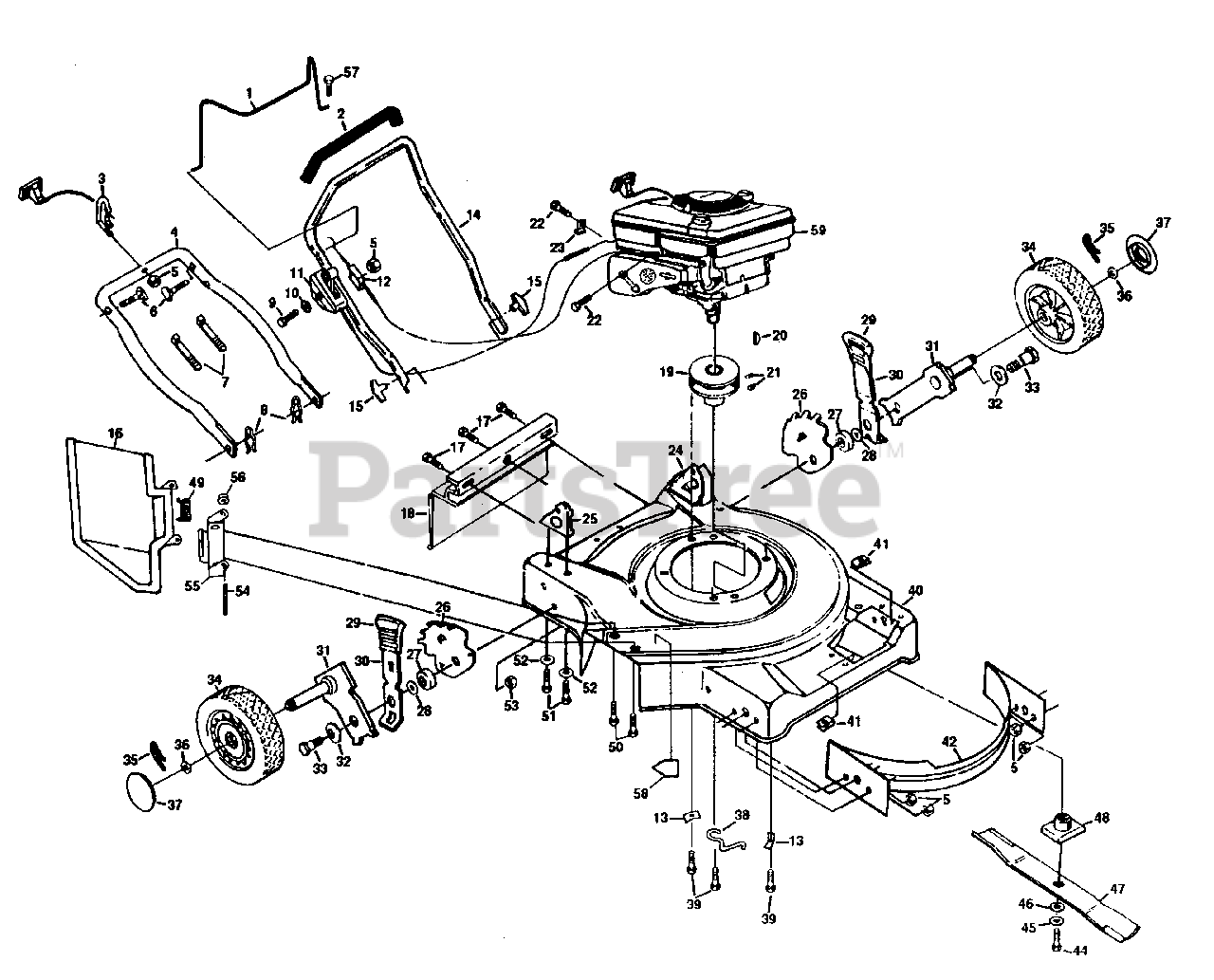

MOWER HOUSING, ENGINE B/S 124702 Parts Diagram

  • Title

1

Poulan 532851513

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

3

Poulan 532103672

Rope Guide (AYP part number)
(Superseded to 583642701)

$7.49

$

Usually ships in 3-10 days

0

4

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

5

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

7

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 532085692

Machine Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532085723

Washer 9/32 x 5/8 x 1/16 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532851464

Deluxe Throttle Control
(Superseded to 532851461)

$

$

Not available

12

Poulan 532851670

Engine Zone Control Cable (AYP part number)

$15.99

$

Usually ships in 3-10 days

0

13

Poulan 532125078

Engine Washer (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

14

Poulan 532125161

Upper Handle (AYP part number)

$

$

Not available

15

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

16

Poulan 532851750

Discharge Guard

$

$

Not available

17

Poulan 532081276

Hex Washer Head Tapping Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

18

Poulan 532800100

Rear Skirt (AYP part number)

$

$

Not available

19

Poulan 532084596

Engine Pulley (AYP part number)

$34.99

$

In Stock, only 2 left!

0

20

Poulan 532087677

Hi Pro Key #HP-505 (AYP part number)

$

$

Not available

21

Poulan 532059708

Set Screw 1/4-20 x 5/16 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 532107488

Thread Rolling Screw #10-32 x 5/8 (AYP part number)

$

$

Not available

23

Poulan 532213146

Cable Clamp (Engine) (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 532125163

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

25

Poulan 532125164

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

26

Poulan 532850904

Wheel Adjuster Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

28

Poulan 532088348

Flat Washer 3/8 (AYP part number)

$7.49

$

In Stock, Qty 6

0

29

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

30

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

31

Poulan 532125172

Axle Arm Assembly (AYP part number)
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

32

Poulan 532062335

Belleville Washer 1/2 (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 532084921

Shoulder Bolt 3/8-16 (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

34

Poulan 532111433

Wheel & Tire Assembly (Rear) 8.00 x 1.75 (AYP part number)

$

$

Not available

35

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

36

Poulan 532052160

Washer 1/2 (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

37

Poulan 532800543

Hubcap

$

$

Not available

38

Poulan 532851000

Belt Snubber (AYP part number)

$

$

Not available

39

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532128626

Lawn Mower Housing Kit (Inc. 58)

$

$

Not available

41

Poulan 532075449

U-type Speed Nut (AYP part number)

$

$

Not available

42

Poulan 532125032

Front Baffle (AYP part number)

$

$

Not available

43

Poulan 532125033

Rear Baffle (Not Shown) (AYP part number)
(Superseded to 83976X479)

$

$

Not available

44

Poulan 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

45

Poulan 532850263

Helical Lockwasher 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

46

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

47

Poulan 532850973

22" Blade
(Superseded to 532406713)

$26.99

$

In Stock, Qty 10

0

48

Poulan 532851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

49

Poulan 532851855

Torsion Spring (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

50

Poulan 532851856

Hex Head Thread Rolling Screw w/Sems 1/4-20 (AYP part number)
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 532055187

Thread Cutting Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 6

0

52

Poulan 532059289

Washer 5/16 (AYP part number)

$4.99

$

In Stock, only 2 left!

0

53

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 532851854

Hinge Rod (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

55

Poulan 532125175

Housing Bracket (AYP part number)
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 532083731

Push-on Speed Nut (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

57

Poulan 532036953

Self-tapping Screw #10-24 x 5/8 (AYP part number)

$

$

Not available

58

Poulan 532107339

Danger Decal (Housing) (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

59

Poulan 532801761

Engine - B&S Model No. 124702, Type No. 3118-01, Operator's Manual (English) (AYP part number)

Note: Not Shown.

$

$

Not available

59

Poulan 532128438

Engine - B&S Model No. 124702, Type No. 3118-01, Operator's Manual (French)

Note: Not Shown.

$

$

Not available
