PP 735 - Poulan Pro Walk-Behind Mower MOWER ASSEMBLY, ENGINE B/S 92502 Parts Diagram

Walk-Behind Mower

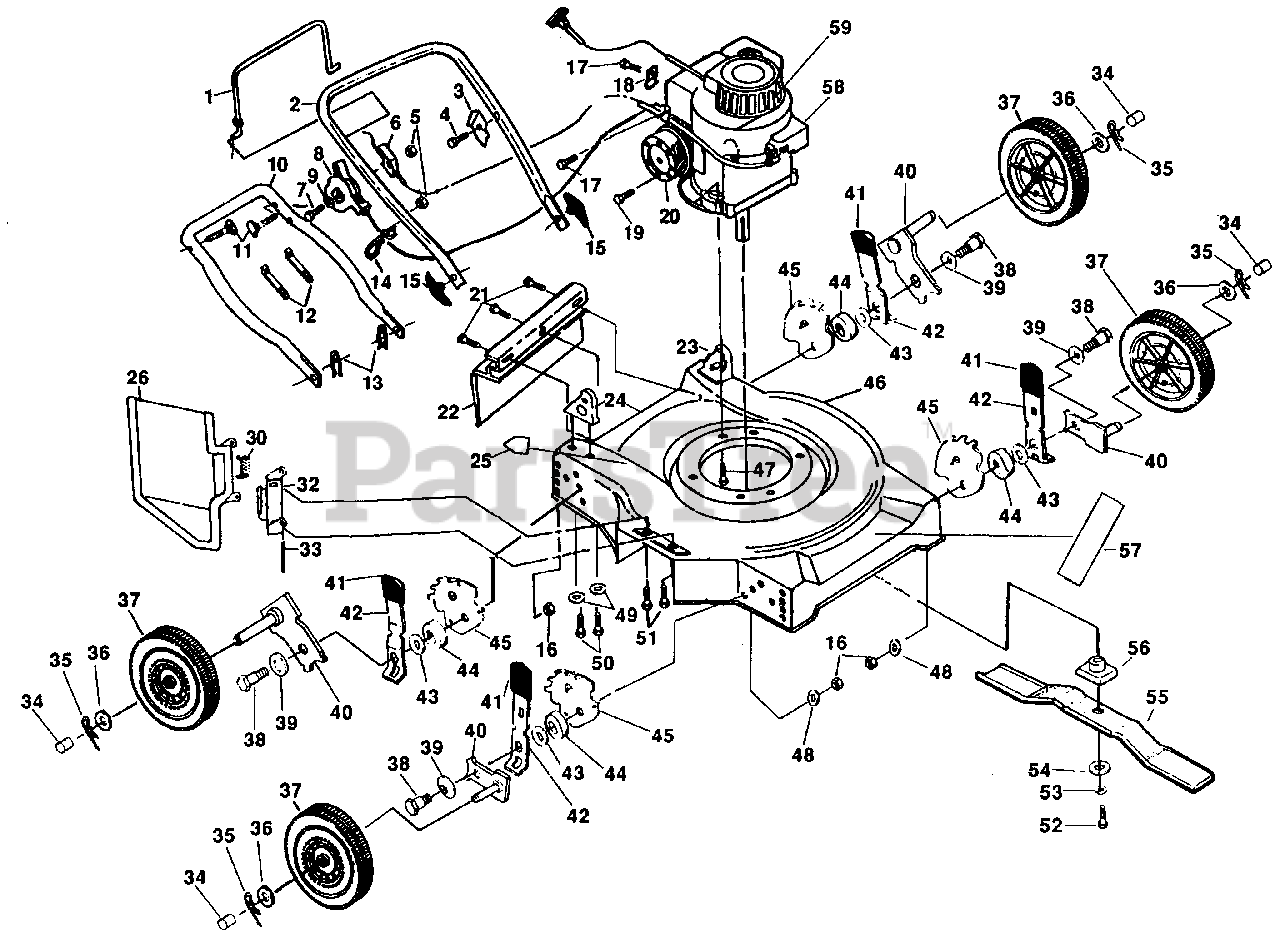

MOWER ASSEMBLY, ENGINE B/S 92502 Parts Diagram

  • Title

1

Poulan 532800633

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532125174

Upper Handle (AYP part number)
(Superseded to 532160223)

$

$

Not available

3

Poulan 532125162

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

4

Poulan 532750097

Hex Washer Head Screw #10-24 X 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

5

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532851669

Engine Zone Control Cable

$18.99

$

Usually ships in 3-10 days

0

7

Poulan 532085723

Flat Washer 9/32 x 5/8 x 1/16 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 532851461

Throttle Control (AYP part number)

$

$

Not available

9

Poulan 532085602

Machine Screw 1/4-20 x 2-1/8

$

$

Not available

10

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

11

Poulan 532058714

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

12

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

13

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

14

Poulan 532103672

Rope Guide (AYP part number)
(Superseded to 583642701)

$7.49

$

Usually ships in 3-10 days

0

15

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

16

Poulan 532074400

Locknut 3/8-16 (AYP part number)
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 532107488

Thread Rolling Screw #10-32 x 5/8 (AYP part number)

$

$

Not available

18

Poulan 532213146

Cable Clamp (Engine) (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

19

Poulan 532093705

Screw #8-32 x 3/8 (AYP part number)
(Superseded to 532069485)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

20

Poulan 532223290

Muffler Deflector

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

22

Poulan 532008259

Rear Skirt (AYP part number)

$

$

Not available

23

Poulan 532125163

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

24

Poulan 532125164

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

25

Poulan 532085463

Danger Decal (AYP part number)

$

$

Not available

26

Poulan 532851751

Discharge Guard (AYP part number)

$

$

Not available

27

Poulan 532851856

Hex Head Thread Rolling w/Sems. 1/4-20 x 3/8 (AYP part number)
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 532851855

Torsi??on Spring (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

32

Poulan 532851853

Housing Bracket BEP (AYP part number)

$

$

Not available

33

Poulan 532851854

Hinge Rod (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

34

Poulan 532800090

Hubcap (AYP part number)

$

$

Not available

35

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

36

Poulan 532052160

Flat Washer 1/2 (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

37

Poulan 532800724

Wheel Assembly 7.0 x 1-1/2

$

$

Not available

38

Poulan 532084821

Shoulder Bolt 3/8-16 (AYP part number)

$

$

Not available

39

Poulan 532062335

Belleville Washer 1/2 (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

40

Poulan 532125172

Axle Arm Assembly (AYP part number)
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

41

Poulan 532087877

Selector Knob (AYP part number)

$6.49

$

In Stock, only 1 left!

0

42

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

43

Poulan 532088348

Flat Washer 3/8 (AYP part number)

$7.49

$

In Stock, Qty 6

0

44

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

45

Poulan 532125167

Wheel Adjuster Bracket (AYP part number)
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

46

Poulan 532800749

Lawn Mower Housing (Inc. Ref. #25)

$

$

Not available

47

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

48

Poulan 53261537

Washer (AYP part number)

$

$

Not available

49

Poulan 532059289

Flat Washer 5/16 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

50

Poulan 532055187

Thread Cutting Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

51

Poulan 532081276

Hex Washer Head Tapping Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

52

Poulan 532851084

Hex Head Screw 3/8-24 x 1-3/8, Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

53

Poulan 532850263

Helicasl Spring Washer 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

54

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

55

Poulan 532850972

20" Blade
(Superseded to 532145106)

$20.99

$

Usually ships in 3-10 days

0

56

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

57

Poulan 532128939

Decal "Housing" (AYP part number)

$

$

Not available

59

Poulan 532028684

Starter Guard

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available
