PP 730 A - Poulan Pro Walk-Behind Mower MOWER HOUSING, ENGINE B/S 92502 Parts Diagram

Walk-Behind Mower

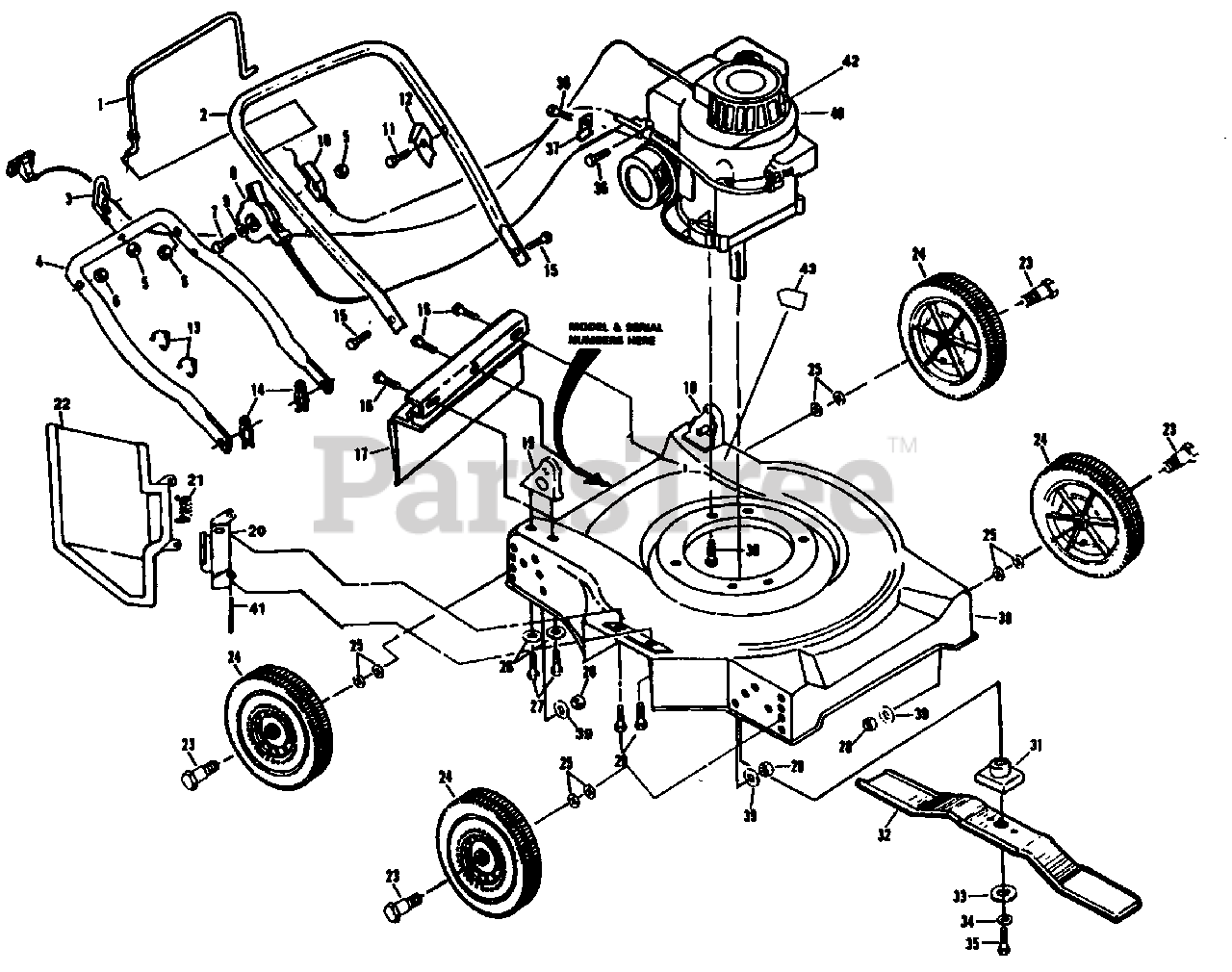

MOWER HOUSING, ENGINE B/S 92502 Parts Diagram

  • Title

1

Poulan 532800633

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532125188

Upper Handle (AYP part number)

$

$

Not available

3

Poulan 532103672

Rope Guide (AYP part number)
(Superseded to 583642701)

$7.49

$

Usually ships in 3-10 days

0

4

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

5

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532063124

Locknut 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532086261

Machine Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 532851461

Throttle Control, Deluxe (AYP part number)

$

$

Not available

9

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

10

Poulan 532851669

Engine Zone Control Cable

$18.99

$

Usually ships in 3-10 days

0

11

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

12

Poulan 532125162

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

13

Poulan 532085827

Cable Clip (AYP part number)

$

$

Not available

14

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

15

Poulan 532053089

Hex Head Bolt 5/16-18 x 1 3/4 (AYP part number)
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

16

Poulan 532081276

Hex Washer Head Tapping Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

17

Poulan 532008259

Rear Deflector (AYP part number)

$

$

Not available

18

Poulan 532103510

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

19

Poulan 532103511

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

20

Poulan 532125175

Housing Bracket (AYP part number)
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 532851854

Rob. Hinge (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

22

Poulan 532851750

Discharge Guard

$

$

Not available

23

Poulan 532067609

Shoulder Bolt (AYP part number)
(Superseded to 532179613)

$6.49

$

In Stock, only 2 left!

0

24

Poulan 532850879

Wheel Assembly 7 x 1-3/4 (AYP part number)

$

$

Not available

25

Poulan 532074316

Washer (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 532059289

Flat Washer (AYP part number)

$4.99

$

In Stock, only 3 left!

0

27

Poulan 532055187

Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

28

Poulan 532062336

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 532851856

Hex Head Thread Rolling w/Sems 1/4-20 (AYP part number)
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

31

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

32

Poulan 532850972

20" Blade
(Superseded to 532145106)

$20.99

$

Usually ships in 3-10 days

0

33

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

34

Poulan 532850263

Helical Lockwasher 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

35

Poulan 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

36

Poulan 532083816

Screw #10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 532800749

Lawn Mower Housing

$

$

Not available

39

Poulan 532061537

Washer (AYP part number)
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

41

Poulan 532851855

Torsion Spring (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

42

Poulan 532087739

Briggs and Stratton Starter Guard (AYP part number)

$

$

Not available

43

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

Poulan 532128128

Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 532128501

"Poulan" Housing Decal (AYP part number)

Note: Not Shown.

$

$

Not available
