PP 722 SB - Poulan Pro Walk-Behind Mower 22" ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

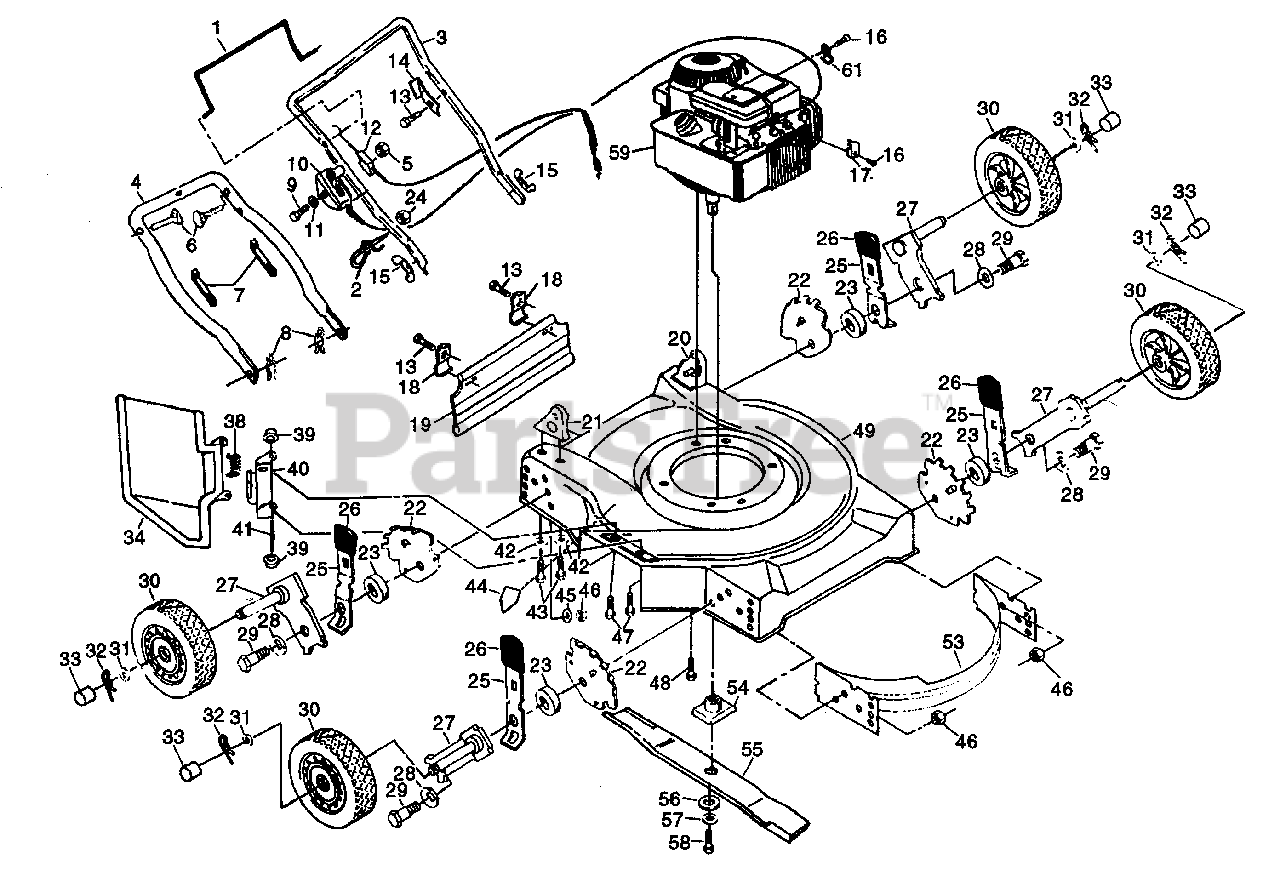

22" ROTARY LAWN MOWER Parts Diagram

  • Title

1

Poulan 532086902

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Poulan 532125306

Upper Handle (AYP part number)
(Superseded to 532125338)

$

$

Not available

4

Poulan 532125160

Lower Handle (AYP part number)
(Superseded to 151516X479)

$

$

Not available

5

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532131959

Handle Bolt 5/16-18 x 1-3/4 (AYP part number)
(Superseded to 532183724)

$

$

Not available

7

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 532085692

Machine Screw 1/4-20 x 2-1/8 (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532851462

Throttle Control
(Superseded to 532851463)

$

$

Not available

11

Poulan 532085723

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

12

Poulan 532851671

Engine Zone Control Cable (AYP part number)

$

$

Not available

13

Poulan 532750097

Hex Washer Head Screw #10-24 x 1/2 (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Poulan 532125162

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Poulan 532128638

Wing Nut (AYP part number)

$7.49

$

In Stock, Qty 8

0

16

Poulan 532083816

Screw #10 x 5/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532213146

Cable Clamp (AYP part number)
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

18

Poulan 532125207

Skirt Bracket (AYP part number)
(Superseded to 532087584)

$

$

Not available

19

Poulan 532128797

Rear Deflector (AYP part number)
(Superseded to 532140540)

$13.99

$

Usually ships in 3-10 days

0

20

Poulan 532125384

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

21

Poulan 532125385

Handle Bracket Assembly (Right) (AYP part number)

$

$

Not available

22

Poulan 532132999

Wheel Adjusting Bracket (AYP part number)

$

$

Not available

23

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

24

Poulan 873510400

Keps Locknut 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

25

Poulan 532125168

Selector Spring (AYP part number)
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

26

Poulan 532087877

Selector Knob (AYP part number)

$6.49

$

In Stock, only 1 left!

0

27

Poulan 532125264

Axle Arm Assembly (AYP part number)

$

$

Not available

28

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

29

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

30

Poulan 532800220

Wheel & Tire Assembly 8.00 x 1-3/4 (AYP part number)
(Superseded to 583605401)

$

$

Not available

31

Poulan 532052160

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

32

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

33

Poulan 532800090

Hubcap (AYP part number)

$

$

Not available

34

Poulan 532851750

Discharge Guard

$

$

Not available

38

Poulan 532851855

Torsion Spring (AYP part number)
(Superseded to 851855)

$2.99

$

Usually ships in 3-10 days

0

39

Poulan 532083731

Push On Speed Nut (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 532125175

Housing Bracket Assembly (AYP part number)
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 532851854

Hinge Rod (AYP part number)
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

42

Poulan 532059289

Flat Washer (AYP part number)

$4.99

$

In Stock, only 3 left!

0

43

Poulan 532055187

Screw 5/16-18 x 3/4 (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

44

Poulan 532107339

Danger Decal (AYP part number)
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

45

Poulan 532061537

Washer (AYP part number)
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

46

Poulan 532751592

Locknut 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 532851856

Hex Head Thd. Rolling Screw 1/4-20 x 3/4 w/ Sems (AYP part number)
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

48

Poulan 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1 (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

49

Poulan 532136767

Mower Housing

Note: (Incl. Ref. #44)

$

$

Not available

53

Poulan 532125382

Front Baffle (AYP part number)

$

$

Not available

54

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

55

Poulan 532850973

Blade 22"
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

56

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 4 left!

0

57

Poulan 532850263

Helical Lockwasher 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

58

Poulan 532851084

Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8)
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

61

Poulan 532850472

Clip Cable Throttle (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

Poulan 532103291

Warning Decal, Discharge (AYP part number)

$

$

Not available

Poulan 532136764

Operator's Manual (English)

Note: Not Shown.

$2.49

$

Usually ships in 3-10 days

0

Poulan 532136765

Operator's Manual (French)

Note: Not Shown.

$2.49

$

Usually ships in 3-10 days

0

Poulan 532136766

Replacement Parts Manual

Note: Not Shown.

$2.49

$

Usually ships in 3-10 days

0
