PP 7140KWV (80337) - Snapper Walk-Behind Mower, 14hp Transmission Drive Assembly Parts Diagram

Walk-Behind Mower, 14hp

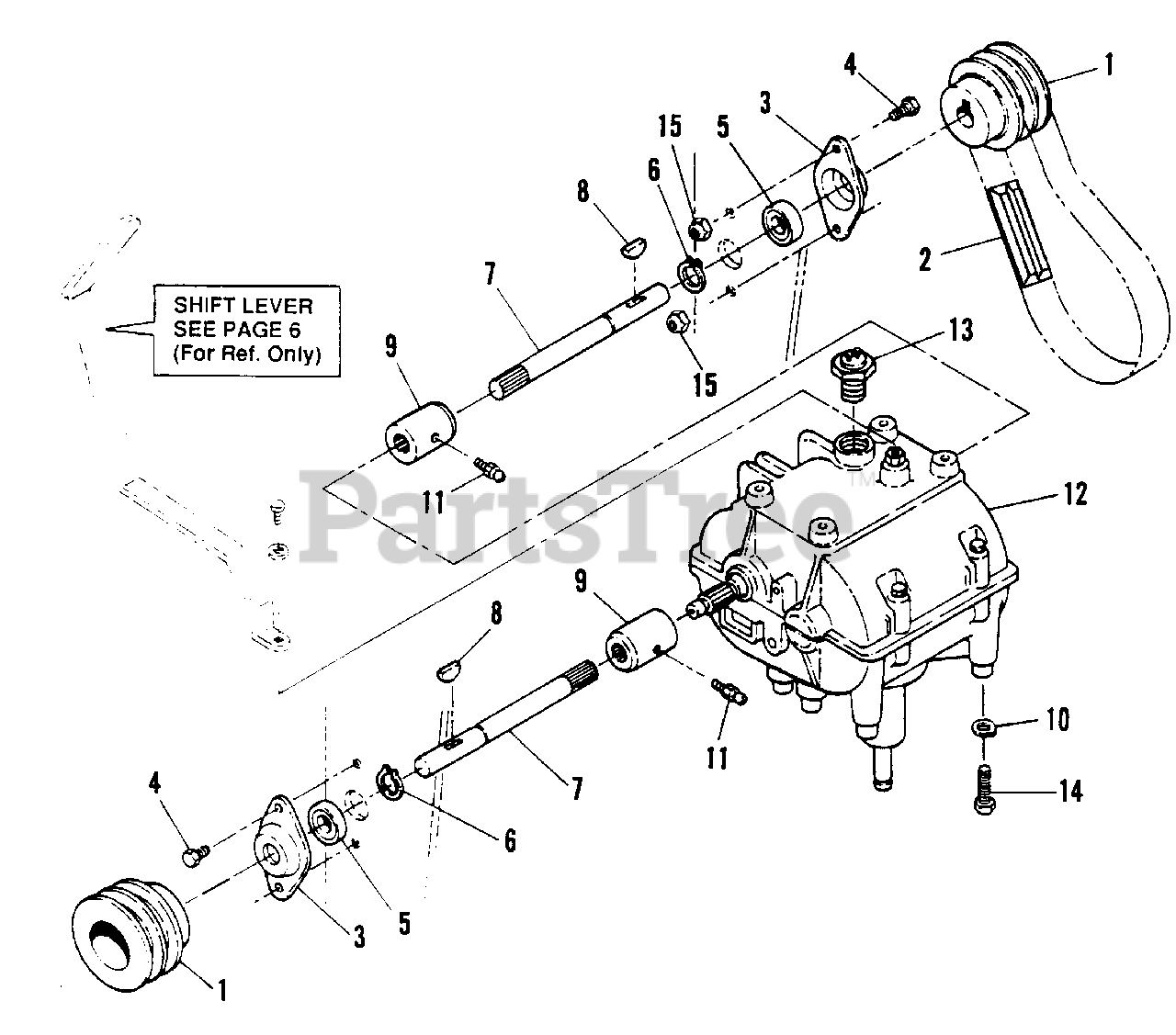

Transmission Drive Assembly Parts Diagram

  • Title

1

Snapper 7017338

PULLEY, Output

$

$

Not available

2

Snapper 7017333

BELT, Traction
(Superseded to 7017333YP)

$113.99

$

Usually ships in 2-12 days

0

3

Snapper 7033718

FLANGE, Output, 3/4"
(Superseded to 7033718YP)

Note: Was 17538

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 7091495

SCREW, 1/4" -20 x 3/4" Lg. Hex. Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

5

Snapper 7014514

BEARING, Output
(Superseded to 7014514YP)

$50.99

$

Usually ships in 2-12 days

0

6

Snapper 7012763

SNAP RING, 5/8"
(Superseded to 7012763SM)

$4.49

$

In Stock, Qty 8

0

7

Snapper 7017537

SHAFT, Output
(Superseded to 7017537YP)

$86.99

$

Usually ships in 2-12 days

0

8

Snapper 7010211

KEY, Woodruff #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

9

Snapper 7053584

COUPLER
(Superseded to 7053584YP)

Note: Was 17536

$

$

Not available

10

Snapper 7090187

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7076998

GREASE FITTING, 1/4" - 28 Str. Zerk
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

12

Snapper 7017533

TRANSMISSION

$

$

Not available

13

Snapper 7016155

SWITCH, Transmission
(Superseded to 7016155YP)

$38.99

$

Usually ships in 2-12 days

0

14

Snapper 7076934

BOLT, 5/16 - 18 x 3/4 Ig.
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7076978

NUT, 1/4" C Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
