PP 7140KWV (80337) - Snapper Walk-Behind Mower, 14hp Pistol Grip Handle & Control Assemblies Parts Diagram

Walk-Behind Mower, 14hp

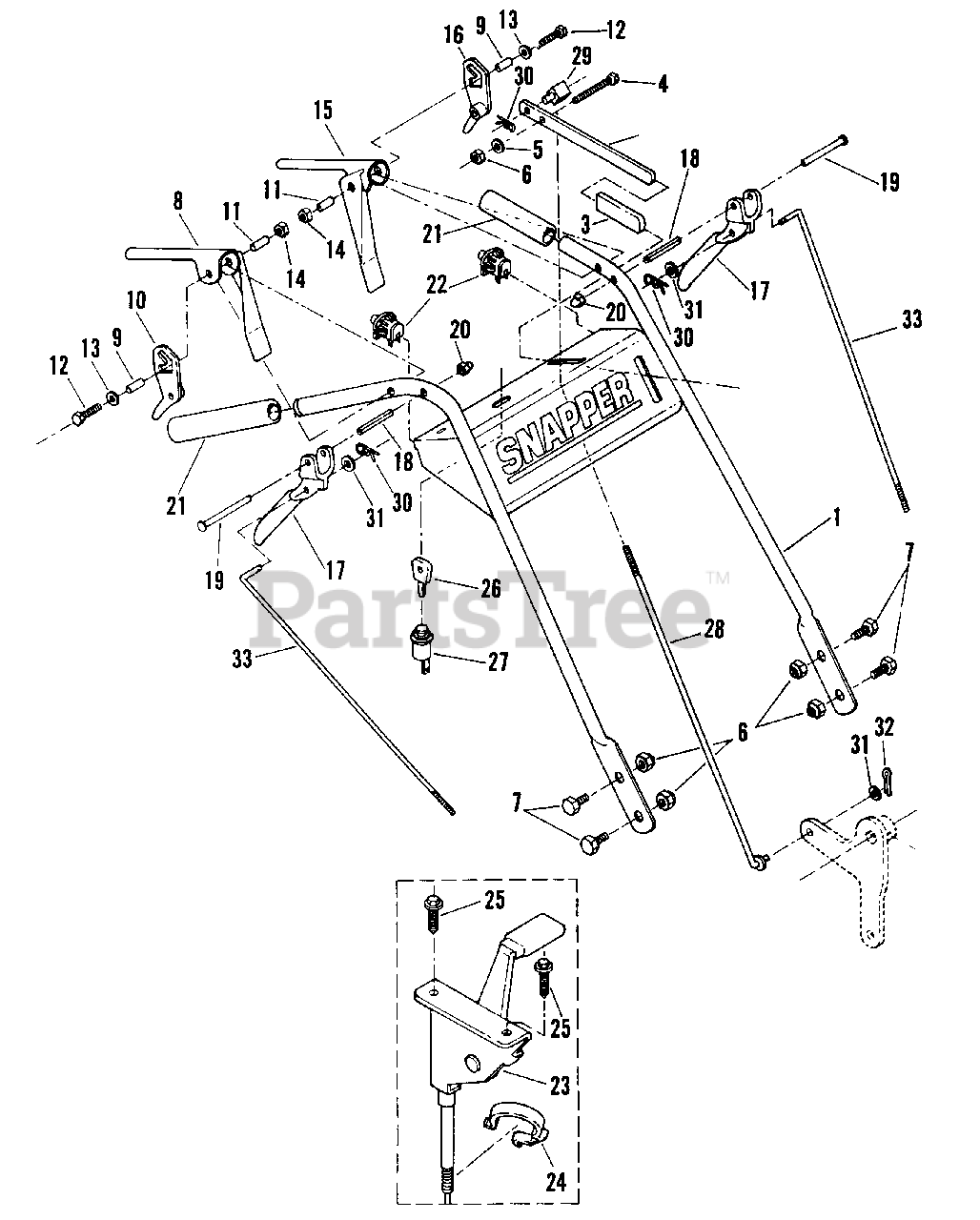

Pistol Grip Handle & Control Assemblies Parts Diagram

  • Title

1

Snapper 7041147

HANDLE, Pistol Grip
(Superseded to 7041147YP)

$478.99

$

Usually ships in 2-12 days

0

?2

Snapper 7033550

LEVER, Blade Engagement
(Superseded to 7033550YP)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper 7076526

GRIP, Lever
(Superseded to 7076526YP)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 7090590

BOLT, 3/8-16 x 3" Hex
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090250

WASHER, 3/8" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7091304

BOLT, 3/8-16 x 1" Hex Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

8

Snapper 7041317

OPC, Pistol Grip R.H.
(Superseded to 7041317YP)

$75.99

$

Usually ships in 2-12 days

0

9

Snapper 24079

SPACER, OPC

$

$

Currently unavailable

10

Snapper 7041320

LATCH, R.N.
(Superseded to 7041320YP)

$62.99

$

Usually ships in 2-12 days

0

11

Snapper 7024129

SPACER, Brake
(Superseded to 7024129YP)

$15.99

$

Usually ships in 2-12 days

0

12

Snapper 7091732

SCREW, 1/4-20 x 2-3/4" Hex Cap

Note: Was 90971

$

$

Not available

13

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7091705

NUT, 1/4-20 Hex Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7041318

OPC, Pistol Grip L.H.
(Superseded to 7041318YP)

$71.99

$

Usually ships in 2-12 days

0

16

Snapper 7041319

LATCH, L.H.
(Superseded to 7041319YP)

$62.99

$

Usually ships in 2-12 days

0

17

Snapper 7071640

LEVER, Drive (with grip)

Note: Was 77870

$

$

Not available

18

Snapper 7023313

P IN, Roll
(Superseded to 7023313YP)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 7014733

PIN, 3/16 x 1-3/4" Clevis
(Superseded to 7014733YP)

$4.49

$

In Stock, only 1 left!

0

20

Snapper 7014734

NUT, 3/16" Push

$3.49

$

In Stock, Qty 9

0

21

Snapper 7024127

GRIP, Handle
(Superseded to 7024127YP)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 20+

0

23

Snapper 7022354

CONTROL, Throttle
(Superseded to 7022354YP)

$28.99

$

Usually ships in 2-12 days

0

24

Snapper 7011709

CLIP, Throttle
(Superseded to 7011709YP)

$

$

Not available

25

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

26

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

27

Snapper 7011853

SWITCH, ON-OFF
(Superseded to 7011853YP)

Note: Was 15211

$27.99

$

In Stock, only 3 left!

0

28

Snapper 7024099

ROD, Blade Clutch (Pistol Grip Handle)
(Superseded to 7024099YP)

$17.99

$

Usually ships in 2-12 days

0

29

Snapper 7017516

SWIVEL
(Superseded to 7017516YP)

$23.99

$

Usually ships in 2-12 days

0

30

Snapper 7091310

PIN, #13
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

31

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

32

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

33

Snapper 7024100

ROD, Traction

$

$

Not available
