PP 7140KWV (80337) - Snapper Walk-Behind Mower, 14hp Cutter Housing Assembly Parts Diagram

Walk-Behind Mower, 14hp

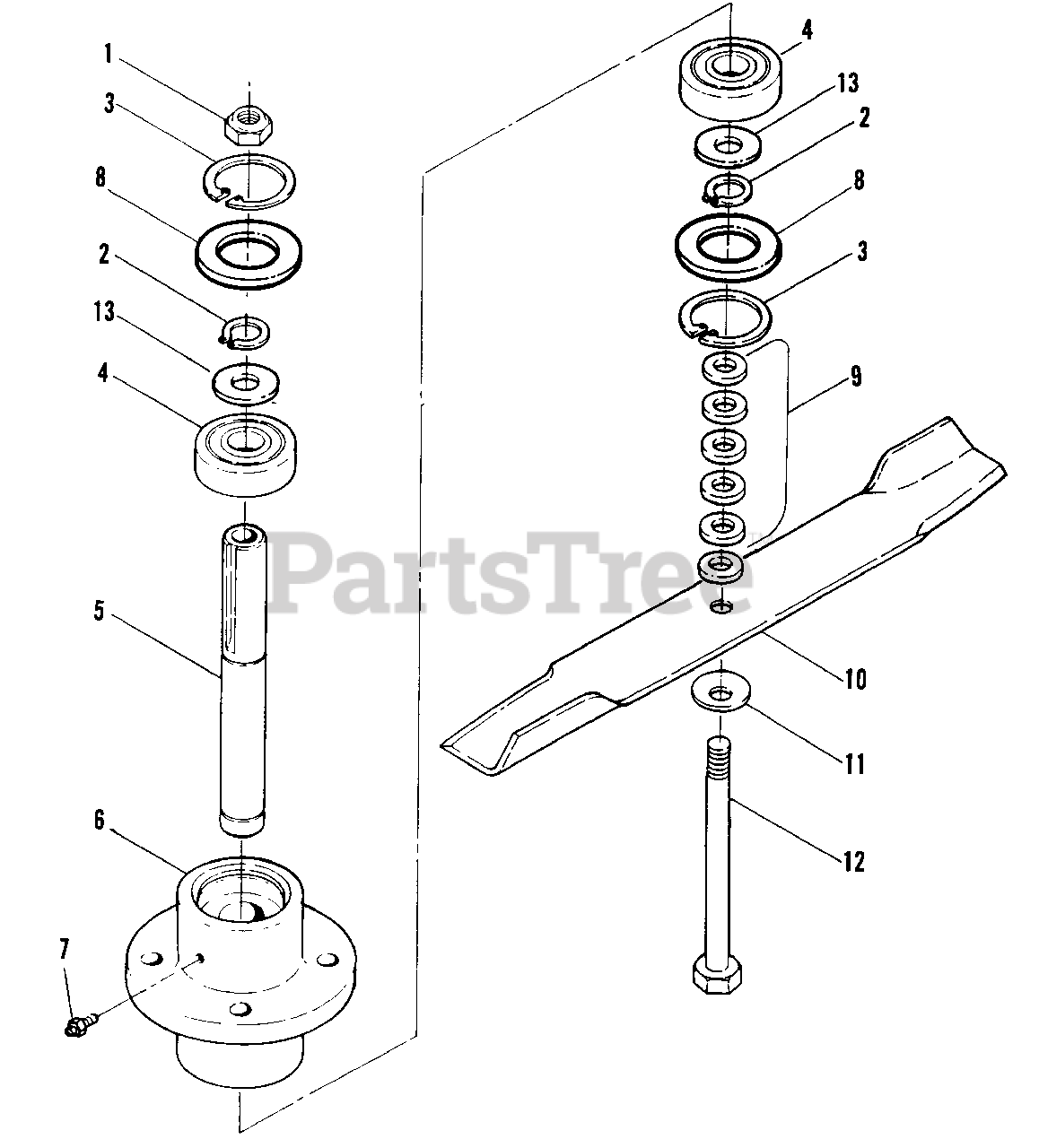

Cutter Housing Assembly Parts Diagram

  • Title

1

Snapper 7076980

NUT, 5/8" F Hex
(Superseded to 7076980YP)

$3.99

$

In Stock, Qty 7

0

2

Snapper 7022453

SNAP RING
(Superseded to 7022453YP)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 7022454

SNAP RING
(Superseded to 7022454YP)

$4.99

$

In Stock, Qty 5

0

4

Snapper 7019125

BEARING, Sealed
(Superseded to 7019125YP)

$30.99

$

Usually ships in 2-12 days

0

5

Snapper 7022186

SHAFT, Spindle
(Superseded to 7022186YP)

$109.99

$

Usually ships in 2-12 days

0

6

Snapper 7022187

HOUSING, Cutter
(Superseded to 7022187YP)

$85.99

$

Usually ships in 2-12 days

0

7

Snapper 7076997

FITTING, 1/8" NPT Zerk

$

$

Currently unavailable

8

Snapper 7022456

WASHER, Spindle Housing
(Superseded to 7022456YP)

$19.99

$

Usually ships in 2-12 days

0

9

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

10

Snapper 7075751

BLADE, 18" High Lift
(Superseded to 7075751BZYP)

Note: Was 17037 (736)

$27.99

$

In Stock, Qty 6

0

Snapper 7017043

BLADE, 16-1/2" High Lift
(Superseded to 7017043YP)

Note: (748)

$28.99

$

In Stock, Qty 8

0

11

Snapper 7016440

WASHER, 5/8" Bevel
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 20+

0

12

Snapper 7091136

SCREW, 5/8-18 x 9-3/4" Hex Cap
(Superseded to 7091136YP)

$45.99

$

In Stock, only 1 left!

0

13

Snapper 7024348

WASHER, Spindle
(Superseded to 7024348YP)

$4.49

$

Usually ships in 2-12 days

0
