PP 71404KWV (7080686) - Snapper Walk-Behind Mower, 14hp 52" Mower Deck Assembly Parts Diagram

Walk-Behind Mower, 14hp

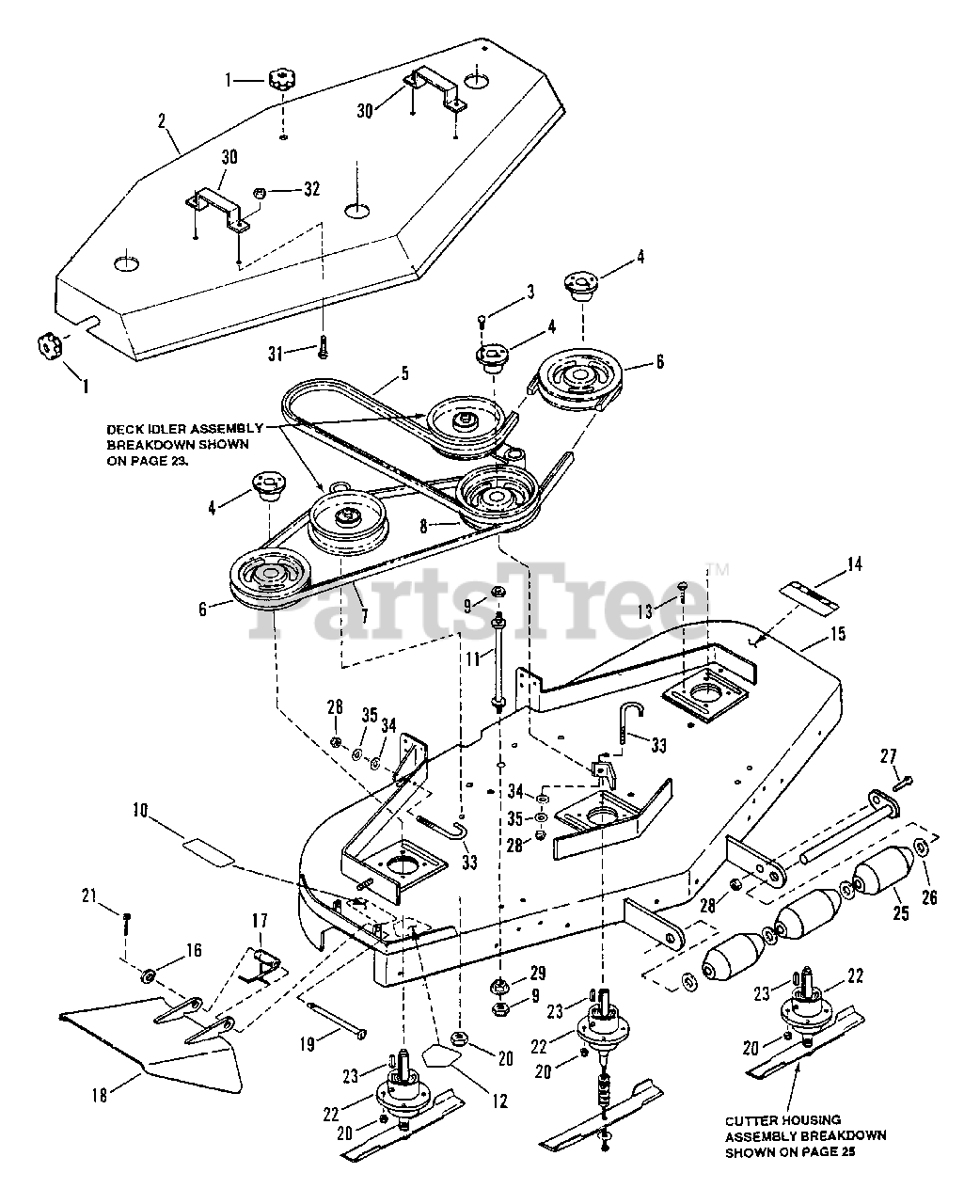

52" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper Pro 7023735

KNOB, Hood

$6.99

$

In Stock, Qty 20+

0

2

Snapper Pro 7027312

HOOD
(Superseded to 7027312YP)

$535.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7090643

BOLT, 1/4-20 x 7/8" Hex Head Cap

$

$

Not available

4

Snapper Pro 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7027346

BELT, Engine To Deck 92.4" E.L. HB
(Superseded to 7027346YP)

$66.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7017336

PULLEY, Cutter Blade Drive
(Superseded to 7017336YP)

$90.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7027347

BELT, Blade (48" Deck) 56.0" E.L. HB
(Superseded to 7027347YP)

$49.99

$

In Stock, only 1 left!

0

8

Snapper Pro 7029922

PULLEY, Cutter Blade Drive (Double Groove)
(Superseded to 7029922YP)

$99.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

Note: Was 90717

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 7027345

STUD, Hood Mount
(Superseded to 7027345YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

13

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

14

Snapper Pro 7027881

DECAL, Caution

$

$

Currently unavailable

15

Snapper Pro 7080707

WELDMENT, 52" Deck

Note: Was 27326

$

$

Currently unavailable

16

Snapper Pro 7090188

WASHER, 5/16 Flat

$

$

Not available

17

Snapper Pro 7024125

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

18

Snapper Pro 7027329

DEFLECTOR, Chute, 52" Deck
(Superseded to 7027329YP)

$176.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7024124

ROD, Chute Pivot

$13.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

21

Snapper Pro 7091313

PIN, 3/32 x 1" Cotter

Note: Was 90038

$

$

Not available

22

Snapper Pro 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

$569.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7017033

KEY, Spindle
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0

?24

Snapper Pro 7027327

WELDMENT, Roller Pivot Pin
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

25

Snapper Pro 7073142

ROLLER
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

26

Snapper Pro 7027344

WASHER, 5/8 Flat
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: Was 90563

$3.99

$

In Stock, Qty 6

0

28

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

29

Snapper Pro 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

30

Snapper Pro 7076585

HANDLE
(Superseded to 7076585YP)

$29.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 7091495

SCREW, 1/4- x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

32

Snapper Pro 7076978

NUT, 1/4- Hex Lock (Nyloc)

$

$

Not available

33

Snapper Pro 7029695

"S" ROD
(Superseded to 7029695YP)

$7.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0
