PP 71402KV (80578) - Snapper Walk-Behind Mower, 14hp Rear Deck, Axle & Transmission Pulley Assemblies Parts Diagram

Walk-Behind Mower, 14hp

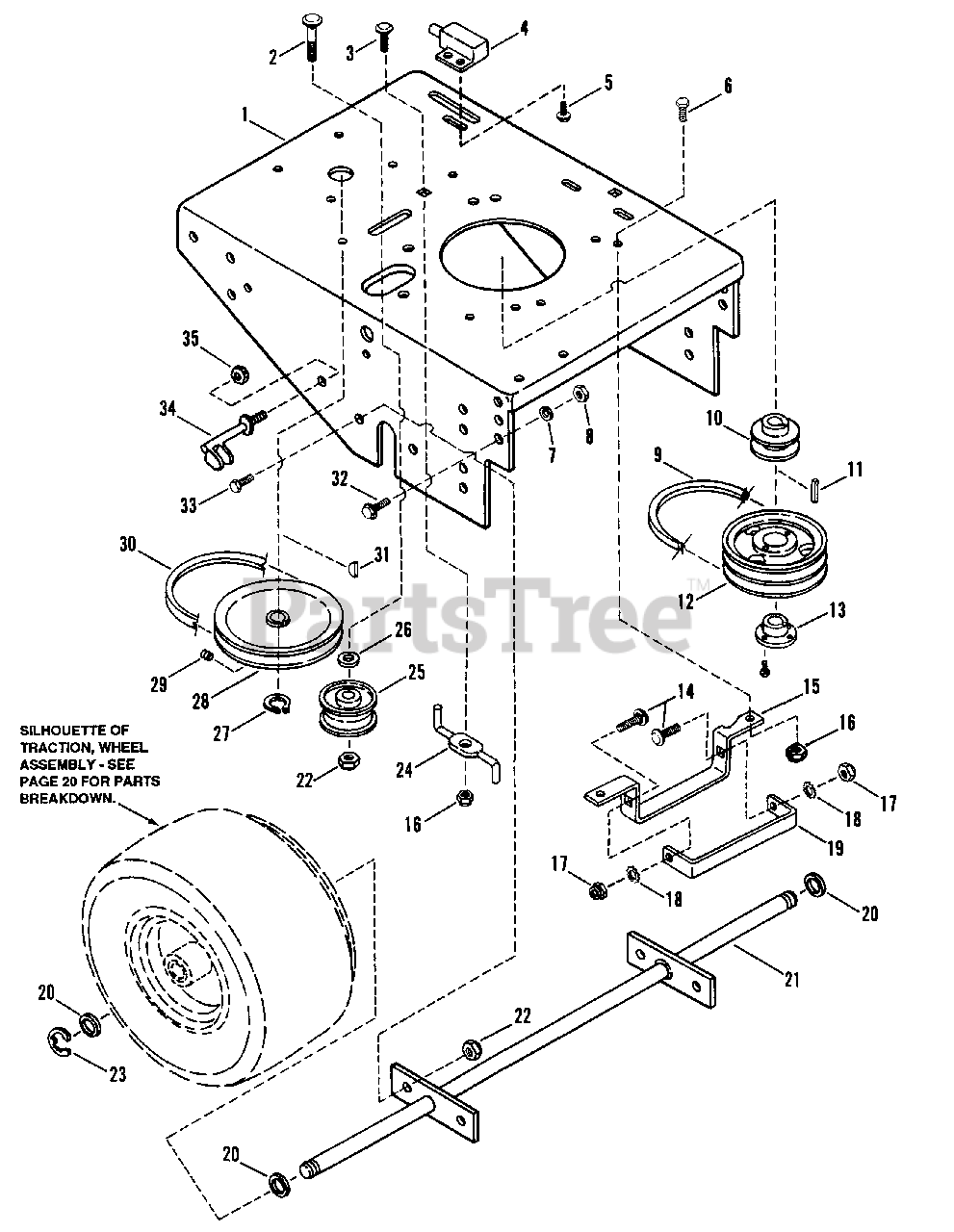

Rear Deck, Axle & Transmission Pulley Assemblies Parts Diagram

  • Title

1

Snapper 7040728

REAR DECK WELDMENT

$

$

Currently unavailable

2

Snapper 7091810

BOLT, 3/8-16 x 1 3/4" Grade 5 Short Neck Carriage
(Superseded to 703879)

Note: Was 91158

$3.99

$

In Stock, Qty 5

0

3

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0

4

Snapper 7019098

SWITCH, Blade
(Superseded to 1723552SM)

$

$

Not available

5

Snapper 7077873

SCREW, #12-14 x 1/2" Slotted Hex Head Flange, Self-Tapping
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: Was 90206

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

9

Snapper 7029908

BELT, Engine/Deck, 36"
(Superseded to 7029908YP)

Note: Was 38624 (For model PMA736)

$56.99

$

Usually ships in 2-12 days

0

Snapper 7024678

BELT, Engine/Deck, 48"
(Superseded to 7024678YP)

Note: (For model PMA748)

$57.99

$

Usually ships in 2-12 days

0

10

Snapper 7017539

PULLEY, Engine/Transmission
(Superseded to 7017539YP)

$63.99

$

Usually ships in 2-12 days

0

11

Snapper 7017033

KEY, 1/4" x 1/4" x 2 1/2" Square
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0

12

Snapper 7017337

PULLEY, Engine/Deck

$

$

Not available

13

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

Note: (Includes Bolts)

$50.99

$

Usually ships in 2-12 days

0

14

Snapper 7090496

BOLT, 1/4-20 x 1" Grade 2 Short Neck Carriage
(Superseded to 7090496YP)

Note: (For model PMA748)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7033420

GUIDE, Engine Belt
(Superseded to 7033420YP)

Note: (For model PMA736)

$110.99

$

Usually ships in 2-12 days

0

Snapper 7033428

GUIDE, Engine Belt

Note: (For model PMA748)

$

$

Not available

16

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

Note: Was 90717

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7076978

NUT, 1/4-20
(Superseded to 703232)

Note: (For model PMA748)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7090574

WASHER, 1/4 Internal/External Tooth Lock

Note: (For model PMA748)

$

$

Not available

19

Snapper 7024288

SUPPORT, Belt
(Superseded to 7024288YP)

Note: (For model PMA748)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 7016561

BUSHING, Axle
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 5

0

21

Snapper 7047952

AXLE WELDMENT
(Superseded to 7047952YP)

$153.99

$

Usually ships in 2-12 days

0

22

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7012730

E-RING, 1"
(Superseded to 7012730YP)

$3.99

$

In Stock, only 2 left!

0

24

Snapper 7033341

KEEPER, Belt
(Superseded to 7033341YP)

$12.99

$

Usually ships in 2-12 days

0

25

Snapper 7019078

PULLEY, Idler
(Superseded to 7019078YP)

$42.99

$

In Stock, only 1 left!

0

26

Snapper 7090250

WASHER, Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 7012763

SNAP-RING, 5/8"
(Superseded to 7012763SM)

$4.49

$

In Stock, Qty 6

0

28

Snapper 7017532

PULLEY, Transmission
(Superseded to 7017532YP)

$71.99

$

Usually ships in 2-12 days

0

29

Snapper 5025283X3

SET SCREW, 1/4-20 X 3/8" CONE

$2.49

$

Usually ships in 2-12 days

0

30

Snapper 7017334

BELT, Engine/Transmission
(Superseded to 7017334YP)

$49.99

$

In Stock, only 1 left!

0

31

Snapper 7010211

KEY, #9 Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

32

Snapper 7090622

BOLT, 1/2-13 x 1 1/4" Hex Head Flange
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: Was 90563

$3.99

$

In Stock, Qty 6

0

34

Snapper 7040627

SCRAPER, Wheel
(Superseded to 7040627YP)

$42.99

$

Usually ships in 2-12 days

0

35

Snapper 7090289

NUT, 3/8-24 Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0
