PP 71402KV (7080578) - Snapper Walk-Behind Mower, 14hp Loop Handle & Control Assemblies Parts Diagram

Walk-Behind Mower, 14hp

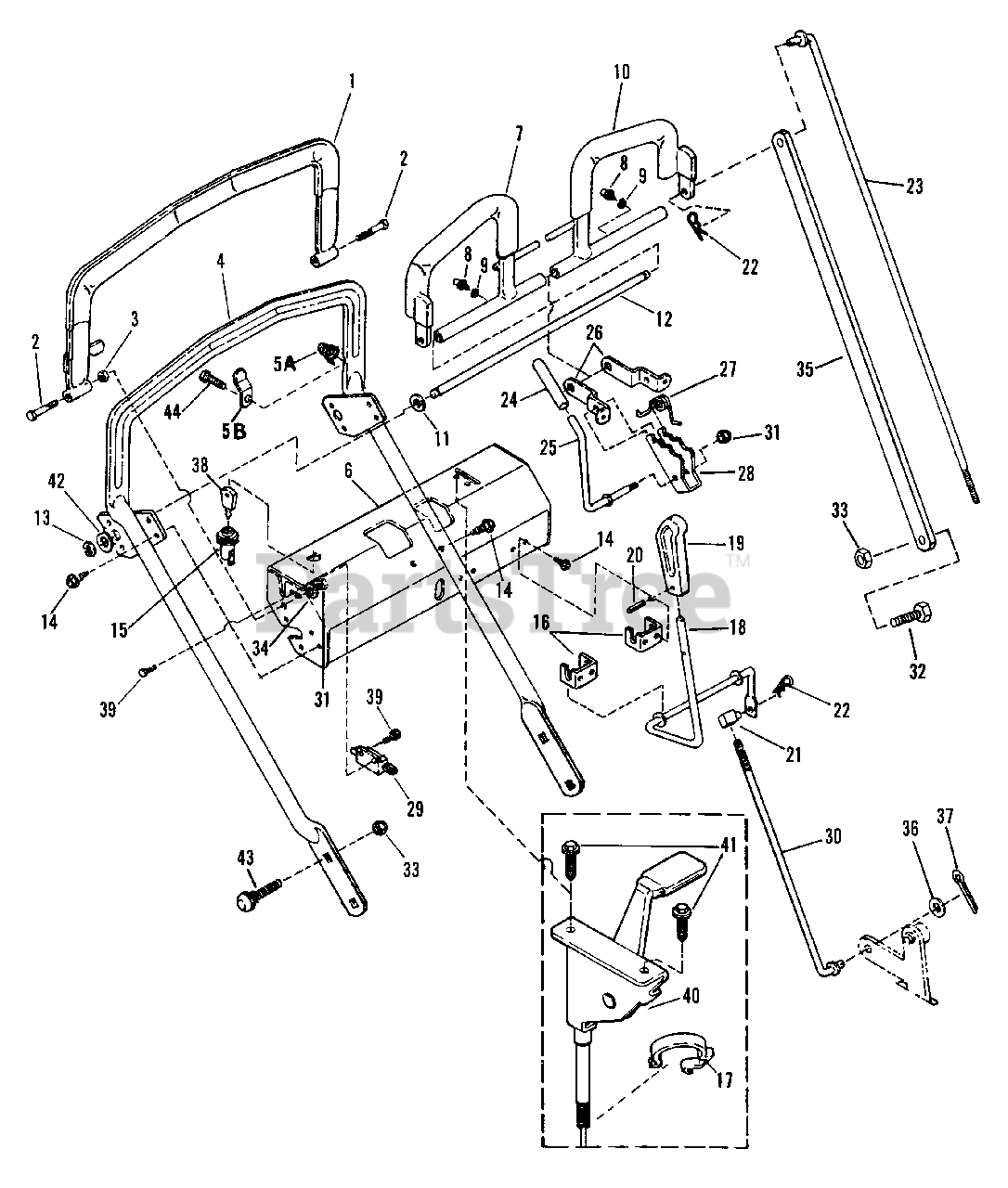

Loop Handle & Control Assemblies Parts Diagram

  • Title

1

Snapper Pro 7040710

BAIL, OPC (With Grip)

Note: Was 17162

$

$

Not available

2

Snapper Pro 5025010X14

BOLT, 1/4-20 X 1-3/4" GD5 YZ
(Superseded to 5025010X14SM)

Note: Was 91003

$3.99

$

In Stock, only 1 left!

0

3

Snapper Pro 7090977

NUT, 1/4-20 Hex
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

4

Snapper Pro 7040743

HANDLE, Loop
(Superseded to 7040743YP)

$199.99

$

Usually ships in 2-12 days

0

5A

Snapper Pro 7017154

SPRING, Conical
(Superseded to 7017154YP)

Note: (Early Production)

$7.99

$

Usually ships in 2-12 days

0

5B

Snapper Pro 7033889

SPRING, Loop Handle
(Superseded to 7033889YP)

Note: (Late Production)

$

$

Not available

6

Snapper Pro 7024194

CONTROL, Console
(Superseded to 7024194YP)

$142.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7022741

LEVER, Traction (Right Hand)
(Superseded to 7022741YP)

$125.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

9

Snapper Pro 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

10

Snapper Pro 7022740

LEVER, Traction (Left Hand)

$

$

Not available

11

Snapper Pro 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

12

Snapper Pro 7022166

ROD, Pivot

$19.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7014341

E-RING, 1/2

$

$

Not available

14

Snapper Pro 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 11

0

15

Snapper Pro 7011853

SWITCH, On-Off
(Superseded to 7011853YP)

Note: Was 15211 (Includes Key)

$27.99

$

In Stock, only 3 left!

0

16

Snapper Pro 7033200

BRACKET, Lever Mounting
(Superseded to 7033200YP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7011709

CLIP, Cable
(Superseded to 7011709YP)

$

$

Not available

18

Snapper Pro 7017649

LEVER, Blade Engagement
(Superseded to 7017649YP)

$26.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7019376

KNOB
(Superseded to 7019376YP)

$6.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 7090844

PIN, 3/16 x 3/4" Roll

$

$

Not available

21

Snapper Pro 7024607

SWIVEL
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

22

Snapper Pro 7091310

HAIR-PIN, 3/32 x 1 3/16"
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

23

Snapper Pro 7024711

ROD, Traction
(Superseded to 7024711YP)

$12.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7023801

GRIP, Neutral Latch
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

25

Snapper Pro 7017322

LEVER, Neutral Latch

$18.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 7033193

BRACKET, Neutral Mounting
(Superseded to 7033193YP)

$23.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 7017323

SPRING, Neutral
(Superseded to 7017323YP)

$9.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7033479

LATCH
(Superseded to 7033479YP)

$39.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 7019098

SWITCH, OPC
(Superseded to 1723552SM)

$

$

Not available

30

Snapper Pro 7017319

ROD, Blade Clutch (Loop Handle)
(Superseded to 7017319YP)

$18.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 7076978

NUT, 1/4-20 Hex, Nyloc

$

$

Not available

32

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: Was 90563

$3.99

$

In Stock, Qty 5

0

33

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

34

Snapper Pro 7091098

WASHER, 1/4 Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

35

Snapper Pro 7033721

STRAP, Brake Loop

$

$

Currently unavailable

36

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 7091313

COTTER-PIN, 3/32 x 1"

Note: Was 90038

$

$

Not available

38

Snapper Pro 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

39

Snapper Pro 7077873

SCREW, #12-14 x 1/2" Self-Tapping
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 7024665

CONTROL, Throttle
(Superseded to 7024665YP)

Note: (Kohler)

$17.99

$

Usually ships in 2-12 days

0

Snapper Pro 7022354

CONTROL, Throttle
(Superseded to 7022354YP)

Note: (Kawasaki)

$28.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

42

Snapper Pro 7091030

BUSHING, 1/2 Machine

$2.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

44

Snapper Pro 7090554

SCREW, 5/16-18 x 3/8" Self-Tapping

$

$

Not available
