PP 71254KW (80687) - Snapper Walk-Behind Mower, 12.5hp Deck Idler Assembly Parts Diagram

Walk-Behind Mower, 12.5hp

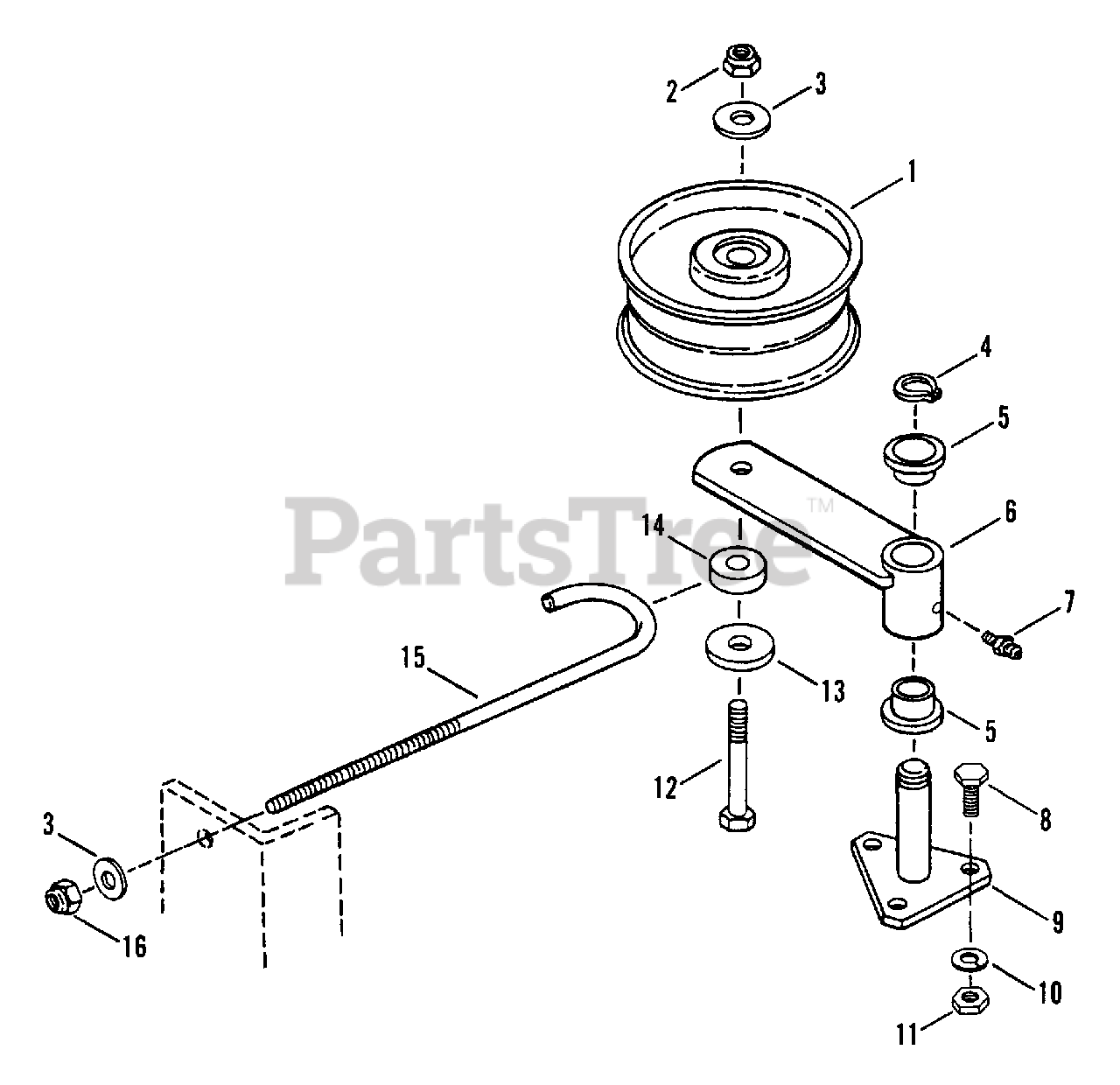

Deck Idler Assembly Parts Diagram

  • Title

1

Snapper 7034422

PULLEY, Idler (5.00 OD)
(Superseded to 7034422SM)

$38.99

$

In Stock, Qty 20+

0

2

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7012709

RING, 1" Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

5

Snapper 7023556

BUSHING
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

6

Snapper 7041296

IDLER ARM (Weldment)
(Superseded to 7041296YP)

$148.99

$

Usually ships in 2-12 days

0

7

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

8

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

9

Snapper 7041295

PIVOT, Idler Arm
(Superseded to 7041295YP)

$44.99

$

Usually ships in 2-12 days

0

10

Snapper 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

11

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7091331

WASHER, 13/32" Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7029723

BUSHING, 38" ID x 1" O.D. x 410"
(Superseded to 7029723YP)

$11.99

$

Usually ships in 2-12 days

0

15

Snapper 7029695

HOOK, "J"
(Superseded to 7029695YP)

$7.99

$

Usually ships in 2-12 days

0
