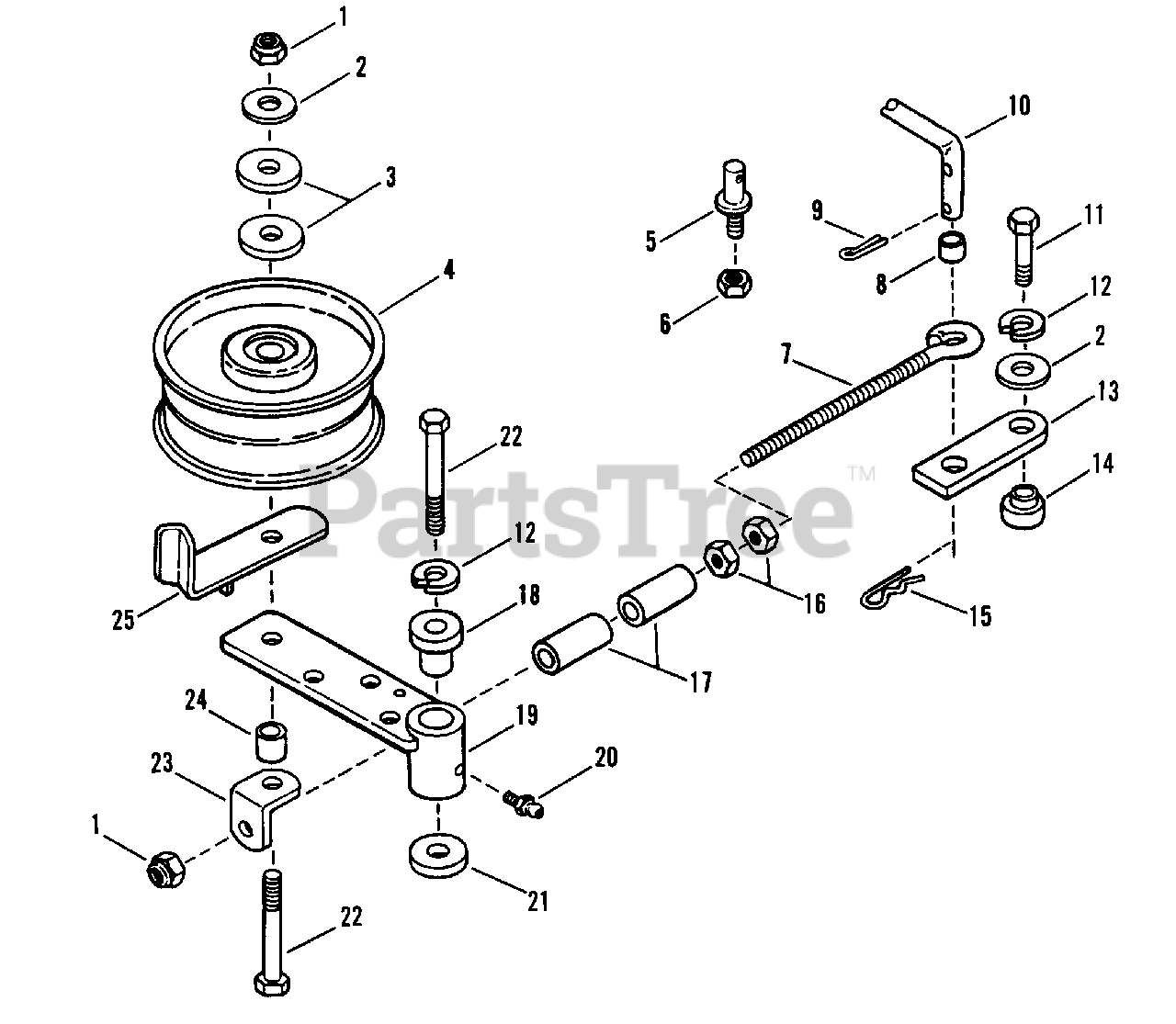

PP 71251KW (7080374) - Snapper Walk-Behind Mower, 12.5hp Deck Idler Assembly Parts Diagram

Walk-Behind Mower, 12.5hp

Deck Idler Assembly Parts Diagram

  • Title

1

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7090905

WASHER
(Superseded to 7090905YP)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7024761

PULLEY, 5" Idler
(Superseded to 7024761YP)

Note: (5.25 Flange) (Ser. 1)

$76.99

$

Usually ships in 2-12 days

0

Snapper Pro 7027942

PULLEY, 5" Idler
(Superseded to 7034422SM)

Note: (5.50 Flange) (Ser. 2)

$38.99

$

In Stock, Qty 20+

0

5

Snapper Pro 7015464

STUD
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

6

Snapper Pro 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

7

Snapper Pro 7017530

LINK STUD, Blade Engagement

$25.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7017513

SLEEVE, Linkage
(Superseded to 7017513YP)

$25.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7091313

COTTER-PIN, 3/32 x 1"

Note: Was 90038

$

$

Not available

10

Snapper Pro 7017528

LINK, Blade Engagement
(Superseded to 7017528YP)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7091497

SCREW, 3/8-16 x 1 1/2" Hex Cap Gr. 5

Note: Was 90655

$

$

Not available

12

Snapper Pro 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

13

Snapper Pro 7033709

LINK, Blade Assist
(Superseded to 7033709YP)

$39.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7022183

SPACER, Pivot

$8.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 7091310

PIN, Hair, 3/32 x 1 3/16"
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

16

Snapper Pro 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 7024095

BUSHING
(Superseded to 7024095YP)

$5.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 7016173

SPACER, Pivot
(Superseded to 7016173YP)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7040981

IDLER ARM, Weldment

$94.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

21

Snapper Pro 7016561

BUSHING

$4.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7090590

BOLT, 3/8-16 x 3" Hex Cap, Gr. 5
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 7033204

ANGLE, Blade Engagement
(Superseded to 7033204YP)

$12.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7017509

SPACER, Blade Linkage

$5.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 7033480

GUIDE, Belt
(Superseded to 7033480YP)

Note: (Series 1)

$9.99

$

Usually ships in 2-12 days

0

Snapper Pro 7034085

GUIDE, Belt
(Superseded to 7034085YP)

Note: (Series 2)

$30.99

$

Usually ships in 2-12 days

0
